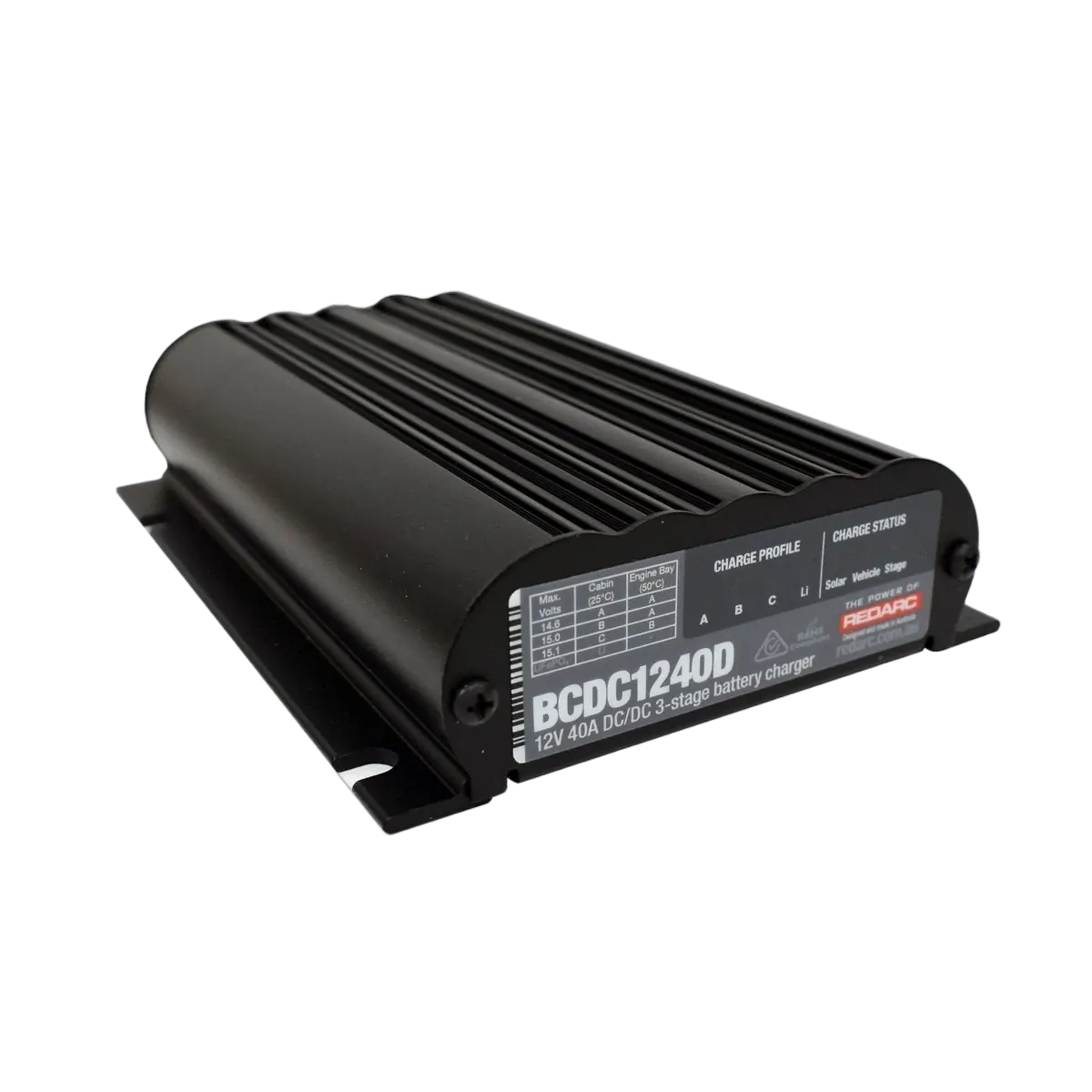

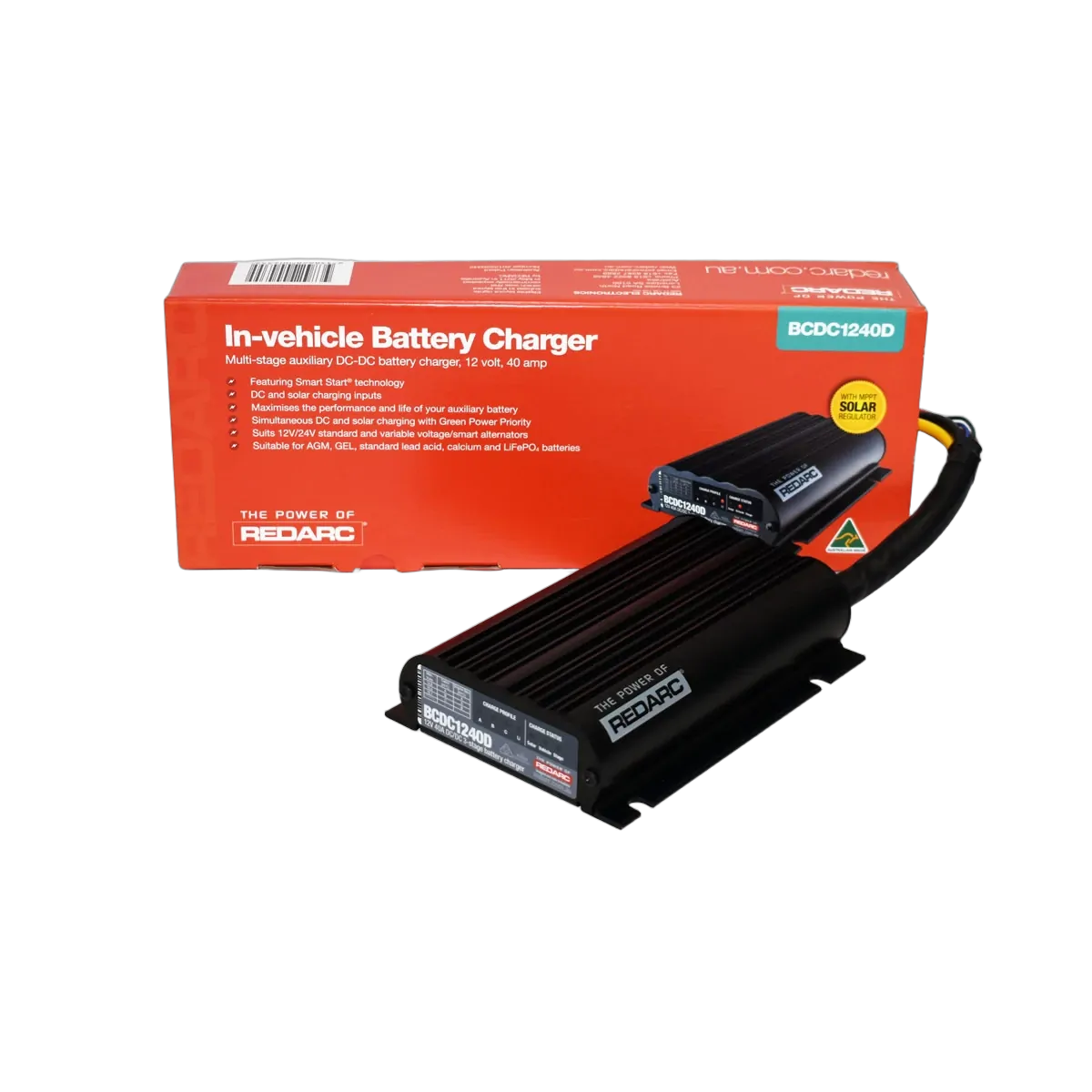

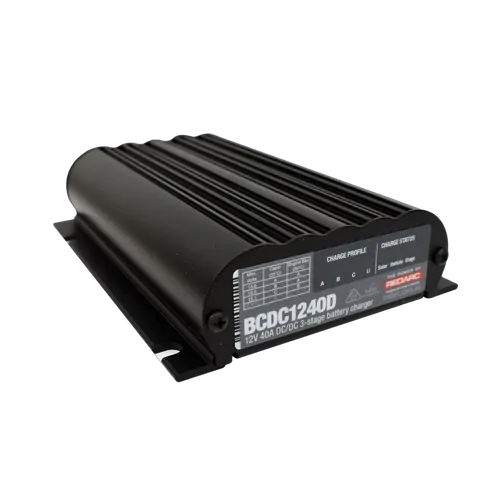

REDARC Dual Input 40A In-vehicle DC-DC Battery Charger

Sale price
$736.00 (-25% Off)
DC to DC battery charger designed to keep your battery charged off the alternator whilst driving.

More info.

Make 4 payments of $137.50 over 8 weeks and get it now!

Handling Time:
2-3 Business Days

Calculate Shipping

Strap in and get ready to enjoy the most advanced dual battery charger on the market! The REDARC DC-DC smart battery charger is a 12V 40A In-Vehicle Battery Charger that can draw from a 12V solar input or a 12V alternator input. Designed to charge your auxiliary batteries to 100% while driving, the REDARC 40ah battery charger comes with a range of features that make it the perfect battery charger for off-roaders and campers. REDARC comes with the same charging profiles as earlier models, but adds a brand new lithium charging profile to the mix. The REDARC battery charger is suitable for AGM, Gel, Standard Lead Acid, Calcium and LiFePO4 batteries which means there's almost no car battery it can't charge!  Featuring a Maximum Power Point Tracking (MPPT) solar regulator, the BCDC1240D will charge from both solar and the alternator simultaneously. With built-in 'Green Power Priority' it will select solar charging first, meaning less load on the alternator. Suitable for 12v vehicle systems, the unit will also work with either standard or variable/smart alternators.

And if you've got solar panels installed, the REDARC features a Maximum Power Point Tracking (MPPT) solar regulator that allows it to draw power simultaneously from both the solar panels and the alternator, while the built-in Green Power Priority draws as much power as possible from the solar panels before dipping into power from the alternators. After all, who doesn't like free power from the sun? The REDARC also comes with handy features to extend the life of your batteries. Not only does its three-stage DC to DC charging keeps your auxiliary battery charged at the optimum level, the Redarc DC-DC battery charger also acts as a dual battery isolator to protect your starter battery when the voltage drops below appropriate levels. Like the rest of the REDARC BCDC series, the REDARC DC-DC battery charger has been tested in the extreme heat of the Simpson Desert (up to 80 degrees Celcius - yep, that's hot!) and in the deep water crossings of Cape York. There's nothing this Aussie-made battery charger can't handle! The REDARC Smart Battery Charger is delivered with a 2-year manufacturer's warranty covering faults and material defects.

*Mounting brackets sold seperately.

Product Features:

  • Separate DC and solar charging inputs
  • Maximises the performance and life of your auxiliary battery
  • Simultaneous DC and solar charging with Green Power Priority
  • Suits 12V/24V standard and variable voltage/smart alternators
  • Suitable for AGM, GEL, standard lead acid, calcium and Lithium (LiFePO4) batteries
  • DC to DC battery charger designed to keep your battery charged whilst driving
  • Charges from Solar & DC simultaneously
  • Charge AGM, Gel, Standard Lead Acid, Calcium, & LiFePO4 Batteries
  • Automatically selects solar for less load on the alternator

Product Specifications:

  • Output power: 40 amps (max) 600w (max)
  • Input (Operating) Voltage: 9 - 32VDC
  • Output System Voltage: 12VDC
  • Maximum Charging Voltage: 15.3V
  • Output Current Rating (Cont.): 40A
  • Input Current (Max.): 40A
  • Type Approval: E-Mark
  • Input Fuse Rating: 60A
  • Output Fuse Rating: 60A
  • Standby Current Draw: <100mA
  • Output Power: 600W
  • Width (mm): 120
  • Height (mm): 37
  • Length (mm): 165
  • Weight (kg): 0.85
Barcode # 9338628004355
Brand Redarc
Shipping Weight 1.0000kg
Shipping Cubic 0.000733000m3
Assembled Length 0.037m
Assembled Height 0.165m
Assembled Width 0.120m
