M146K

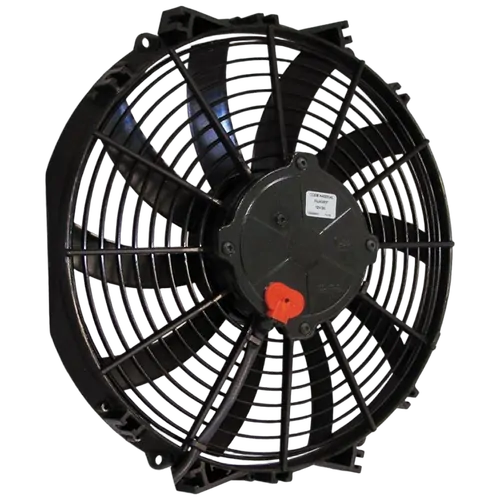

14 in., low profile, reversible “S” blade fan with 160 watt motor.
- Lowest profile high performance reversibles on the market
- Sealed motor tested in accordance with DIN EN 60529, dust and water resistant to IP68
- Quiet, reversible S-blade design – works as a puller or pusher fan (ships as a puller)
- All glass-filled nylon construction includes (4) 90° mounting feet and nylon tie kit

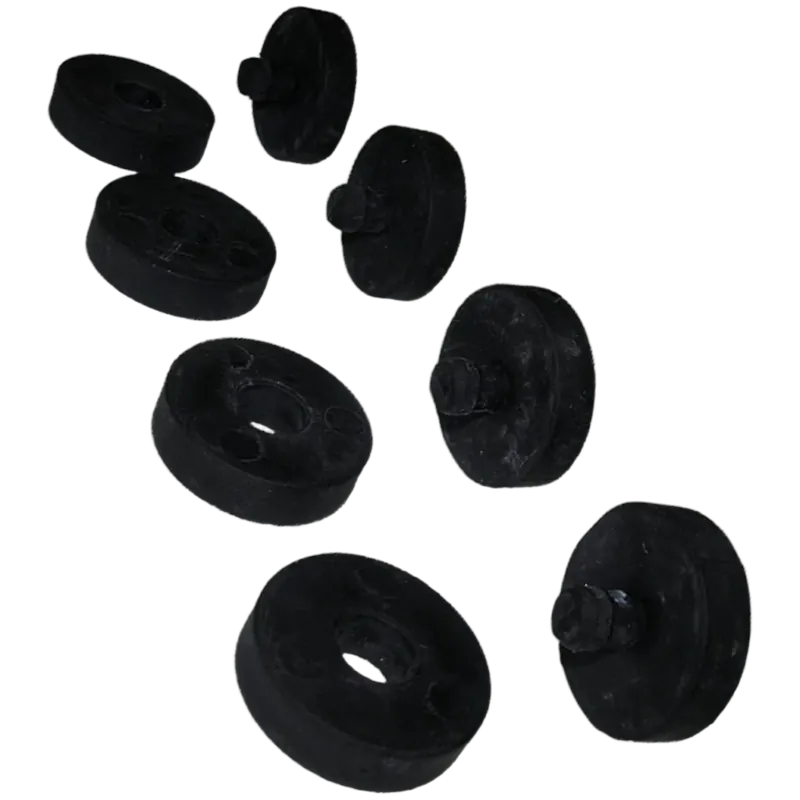

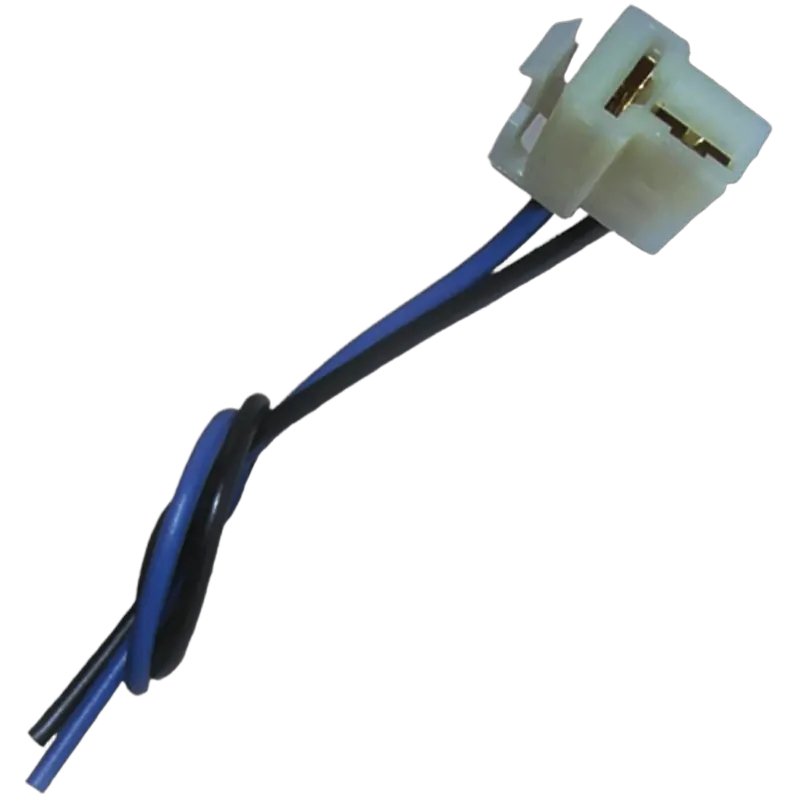

- Includes locking mating pigtail connector and rubber spacers for proper spacing off of heat exchanger
SPECIFICATIONS |
M146K |
MOTOR |
160w |
CURRENT DRAW |
10.1 |
CFM @ 0 in. STATIC |
1,555 |
DEPTH |
2.87 in. |
