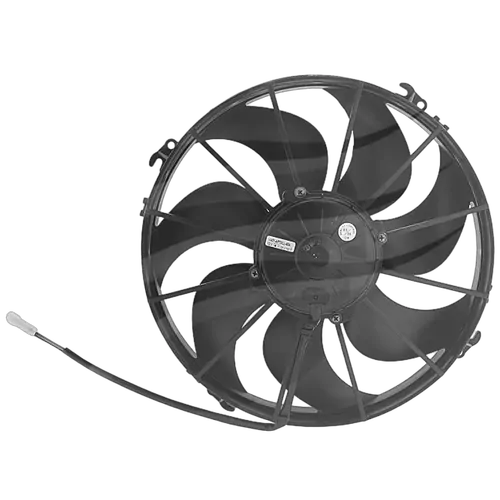

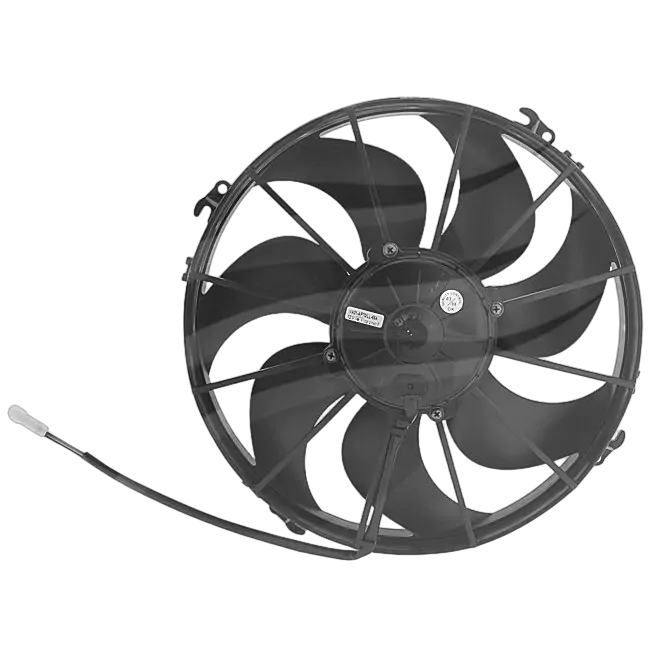

The VA01-AP70/LL-66A (EF3632) 12v 12" SPAL Puller Fan is a High Output Thermo Fan featuring a Large Skew (curved) Blade Design which can pull up to 1451cfm / 2460m3/h.
The EF3632 12" SPAL Fan is individually balanced for long life and features a fully sealed water & dust-proof motor of superior quality and backed with a 3-year manufacturers .
| EF3632 12" SPAL THERMO FAN DETAILS | |
|---|---|
| SPAL Fan Model # | VA01-AP70/LL-66A |
| Voltage | 12V |
| Flow Type | Puller |
| Blade Diam. | 12 inch (305mm) |
| Blade Type | Skew |
| Shroud Type | Open Shroud |
| Amps | 12.8 |
| CFM | 1451 |
| M3/H | 2460 |
| Mounting Match | VA01-AP70/LL-36A VA01-AP70/LL-79A |
| Spec. Sheet | View Specifications  |
| EF3632 12" SPAL THERMO FAN DIMENSIONS | |
|---|---|
| A | 331mm / 13.03" |
| B | 331mm / 13.03" |
| C | 238mm / 9.37" |
| D | 238mm / 9.37" |
| E | 95mm / 3.74" |
 |
|
| ABOUT SPAL |
|---|
|
All SPAL Fans are individually balanced & tested to provide optimal performance and life. From the motor to the fan to the shroud, all components are completely designed, manufactured and tested in SPAL's state-of-the-art facility in Correggio, Italy. href=" ?filter.p.tag=SPAL+Accessory" title=" More">
 |
Designed to withstand the harshest environments, SPAL fans are unmatched in quality and reputation.
| SKU | EF3632 |
|---|---|
| Barcode # | 9316042173161 |
| Brand | SPAL |
| Shipping Weight | 5.0000kg |
| Shipping Width | 0.094m |
| Shipping Height | 0.331m |
| Shipping Length | 0.331m |
SPAL Thermo Puller Fan - 12" - 12V - 1451 CFM - VA01-AP70/LL-66A
