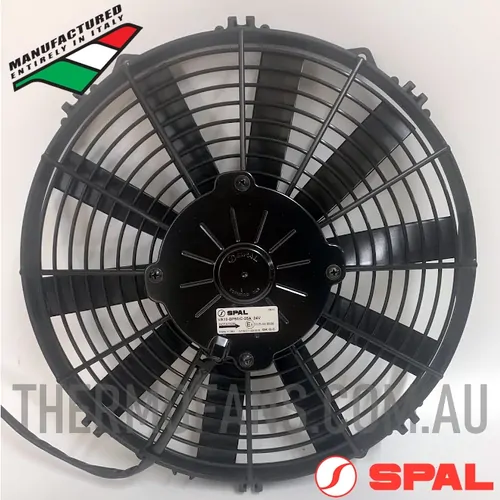

The VA10-BP50/C-25A (EF3517) 12v 12" SPAL Puller Fan is a Low-Profile Thermo Fan featuring a Finger Guard Shroud and a Straight Blade Design which can pull up to 1212cfm / 2060m3/h.
The EF3517 12" Fan is individually balanced for long life and features a fully sealed water & dust-proof motor of superior quality and backed with a 3-year manufacturers .
EF3517 12" SPAL THERMO FAN DETAILS |
SPAL Fan Model # |
VA10-BP50/C-25A |
Voltage |
24V |
Flow Type |
Puller |
Blade Diam. |
12 inch (305mm) |
Blade Type |
Straight |
Shroud Type |
Finger Guard |
Amps |
5.6 |
CFM |
1212 |
M3/H |
2060 |
Spec. Sheet |
View Specifications |
|
|
EF3517 12" SPAL THERMO FAN DIMENSIONS |
A |
319mm / 12.56" |
B |
335mm / 13.19" |
C |
168mm / 6.61" |
D |
291mm / 11.46" |
E |
62mm / 2.44" |
|
