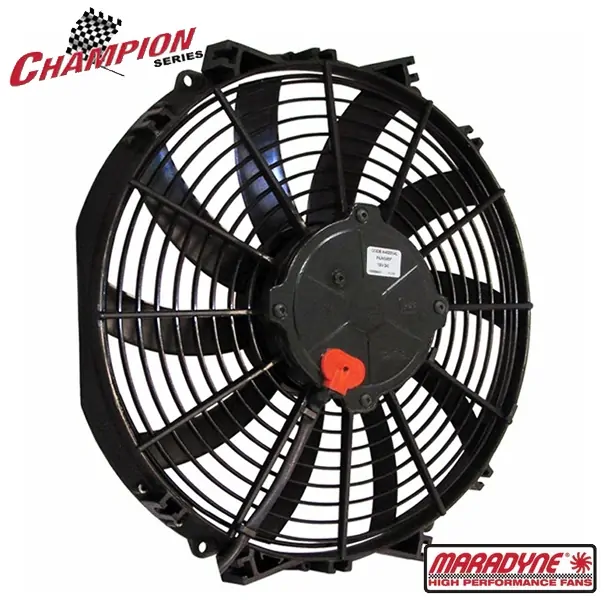

The M142K(EF8916) 12v 14" Maradyne Champion Series Fan features a reversible blade design whichis ratedup to 2135cfm / 3627m3/h in the standard puller configuration.

The Maradyne Champion SeriesEF891614" Thermo Fan features a fully-sealed 225W high power motor (IP68) and is backed with a 36-month manufacturers (see below).

M142K 14" 225w THERMO FAN DETAILS
Fan Model # M142K
Fan Series Champion Series
Voltage 12V
Motor LL 225W Heavy Duty
Flow Type Puller or Pusher (ships as puller)
Blade Diam. 14 inch (355mm)
Blade Type Skew
Shroud Type Finger Guard
Amps 15.2
CFM 2135
M3/H 3627
Spec. Sheet View Specifications
Mounting View Mounting Instructions
Included in Box
  • Thermo Fan
  • Wiring Pigtail
  • 4 x Mounting Feet
M142K 14" 225w THERMO FAN DIMENSIONS
A 368mm / 14.49"
B 331.8mm / 13.06"
C 190.8mm / 7.51"
D 383mm / 15.08"
E 85.6mm / 3.37"
M142K (EF8916) 12v 14" Maradyne Champion Series Fan
MORE INFORMATION
  • Improved Long-Life Motor
  • Lowest profile high performance reversible thermo fans on the market
  • Sealed motor tested in accordance with DIN EN 60529, dust and waterproof to IP68
  • Quiet, S-blade design works as a puller or pusher fan (ships as a puller)
  • All glass-filled nylon construction
  • Includes (4) 90° mounting feet, locking mating pigtail connector and rubber spacers
  • Article: Which Maradyne Fan Do I Need?
    SKU EF8916
    Barcode # 9316042411836
    Brand MARADYNE
    Shipping Weight 3.0000kg
    Shipping Width 0.086m
    Shipping Height 0.332m
    Shipping Length 0.368m
    SKU: EF8916

    Maradyne Champion Series Fan - 14" - 12V / 225W - 2135 CFM - M142K
