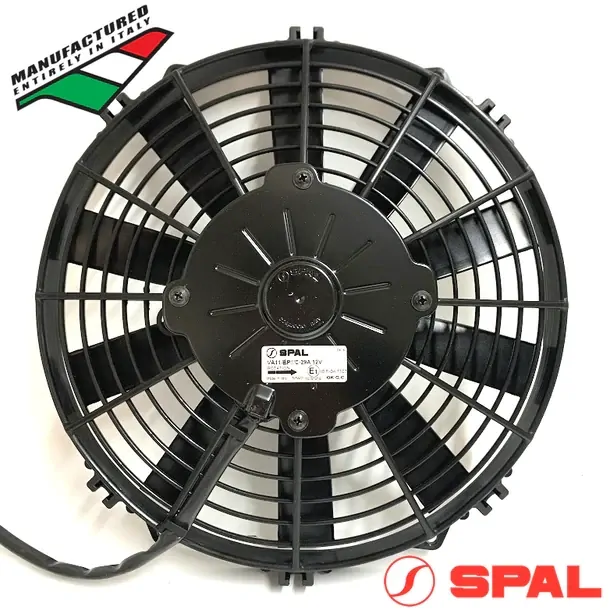

The VA11-BP7/C-29S (EF3514) 24v 10" SPAL Pusher Fan features a Straight Blade Design which can push up to 791cfm / 1320m3/h.
Individually balanced for long life, the EF3514 10" Pusher Fan features a fully sealed water & dust-proof motor of superior quality and backed with a 3-year manufacturers .
EF3514 10" SPAL THERMO FAN DETAILS |
SPAL Fan Model # |
VA11-BP7/C-29S |
Voltage |
24V |
Flow Type |
Pusher |
Blade Diam. |
10 inch (254mm) |
Blade Type |
Straight |
Shroud Type |
Finger Guard |
Amps |
5.0 |
CFM |
791 |
M3/H |
1320 |
Spec. Sheet |
View Specifications |
|
|
EF3514 10" SPAL THERMO FAN DIMENSIONS |
A |
268mm / 10.55" |
B |
283.5mm / 11.16" |
C |
142.3mm / 5.60" |
D |
246.4mm / 9.7" |
E |
51mm / 2.01" |
|
