M3 marine subwoofers are purpose-built to deliver incredible sub-bass performance in moderate power applications.
PRODUCES AMAZING BASS IN OPEN-AIR APPLICATIONS
ENGINEERED FOR USE WITHOUT A DEDICATED ENCLOSURE
MODELS AVAILABLE WITH BUILT-IN RGB LED LIGHTING
EXCEEDS INTERNATIONAL STANDARDS FOR SALT FOG AND UV EXPOSURE
2-YEAR WARRANTY
OUTSTANDING SOUND QUALITY
This is bass that will impress you, not only with its sheer level, but even more with its smoothness, balance and precision.
INFINITE BAFFLE DESIGN
M3 marine subwoofers are purpose-engineered to operate without a dedicated enclosure, needing only a moderate amount of air behind it.
POWER VERSATILITY
These subwoofers are designed to benefit from operation with quality amplification.
DMA-OPTIMISED WOOFERS
Proprietary motor, suspension and cone modeling systems are employed, resulting in reduced distortion, improved transient performance and stellar bass sound quality.
REAL MARINE DUTY
For long-term use, all models are built to withstand saltwater marine environments and deliver years of listening enjoyment.
BUILT-IN RGB LED LIGHTING
Offered on sport models, multicolor LEDs produce a vibrant accent glow.
SPECS
General |
|
| Sizes | 10" |
|---|---|
| Colour | White Classic, White Sport or Grey Sport |
| Physical dimensions (Diameter) | 273 mm (10.75 in) |
| Physical dimensions (Depth) | 10" (Classic): 165 mm (6.50") 10" (Sport): 203 mm (6.58") |
| Weight | 2.94 kg (6.5 lbs) |
| Speaker type | Infinite Baffle Subwoofer |
| Continuous power handling (RMS) | 175 W |
| Sensitivity (SPL @ 1 W/1 m) | 87.23 dB |
| Nominal impedance | 4 Ω |
| Recommended amplifier power (RMS) | 50-175 W |
| LED lighting | Yes - RGB (selected Sport models only) |
| LED supply voltage | 10-14.4 VDC |
| LED Load Current @ 14.4 VDC (max) | 108 mA |
| Cone material | Injection-molded, mica-filled polypropylene |
| Warranty | 2 years |
Connections |
|
| Speaker connections | Spade Connectors |
|---|---|
| LED connection | Flying Lead with 4-conductor 22 AWG wire (selected Sport models only) |
Mounting Dimensions |
|
| Mounting depth clearance | 127 mm (5") |
|---|---|
| Frontal grille protrusion | 10" (Classic): 38 mm (1.50") 10" (Sport): 40 mm (1.58") |
| Mounting hole | 225 mm (8.875") |
| Bolt hole circle | 247 mm (9.71") |
Parameters |
|
| Free Air Resonance (FS) | 41.84 Hz |
|---|---|
| Electrical “Q” (Qes) | 0.806 |
| Mechanical “Q” (Qms) | 11.751 |
| Total “Q” (Qts) | 0.754 |
| Equivalent Compliance (Vas) | 36.53 L |
| One-way linear excursion (Xmax; specs are derived via one-way voice coil overhang method with no correction factors applied) | 10.7 mm (0.42") |
| Reference Efficiency (NO) | 0.34% |
| Effective piston area (SD) | 0.0327 m² |
| DC resistance (RE) | 3.957 Ω |
Sealed Enclosure Specifications |
|
| Wall thickness | 19 mm (0.75") |
|---|---|
| Front baffle thickness | 19 mm (0.75") |
| Volume (net int.) | 56.6 L |
| External width (W) | 457 mm (18") |
| External height (H) | 457 mm (18") |
| External depth (D) | 368 mm (14.5") |
| -3 dB cutoff frequency (F3) | 42.9 Hz |
| System resonance (FC) | 53.66 Hz |
| System Q at resonance (QTC) | 0.967 |
Additional |
|
| Additional | The enclosure recommendations listed above are external dimensions which assume the use of 19 mm (0.75) thick material. If you are using 16 mm (0.625) thick material, subtract 6.5 mm (0.25) from each dimension. Do not use any material with a thickness of less than 16 mm (0.625) as this may compromise the rigidity of the enclosure. All enclosure volumes listed above are net internal volumes. Driver displacement, port displacement and brace displacement must be added to obtain the final gross internal volume. All enclosure dimensions above have already taken this into account. When using multiples in a common enclosure you will need to recalculate the enclosure and port dimensions. For assistance please contact your authorised JL Audio dealer or JL Audio Technical Support. We recommend the use of this in a bi-amplified system using high-quality satellites and a high-quality amplifier. We do not recommend the use of this with a passive crossover (coil), as this type of device will adversely affect performance. |
|---|---|
IN THE BOX
- One marine subwoofer
- One grille
- Six stainless steel mounting screws
- Six stainless steel washers
- Logo badges (sport models only)
COMPATIBLE DEVICES
Fusion Apollo™ MS-RA800 marine stereo
JL Audio M3 Enclosed Tower Speakers
JL Audio® M3 Marine Speakers
JL Audio® MHD Marine Amplifier
JL Audio® MVi Marine Amplifier
JL Audio® MX Marine and Powersports Amplifiers
JL Audio® VeX™ Enclosed System
JL Audio® XDM Car and Marine Amplifier
| SKU | 010-03071-00 |
|---|---|
| Barcode # | 0699440935289 |
| Brand | JL Audio |
| Shipping Weight | 3.8100kg |

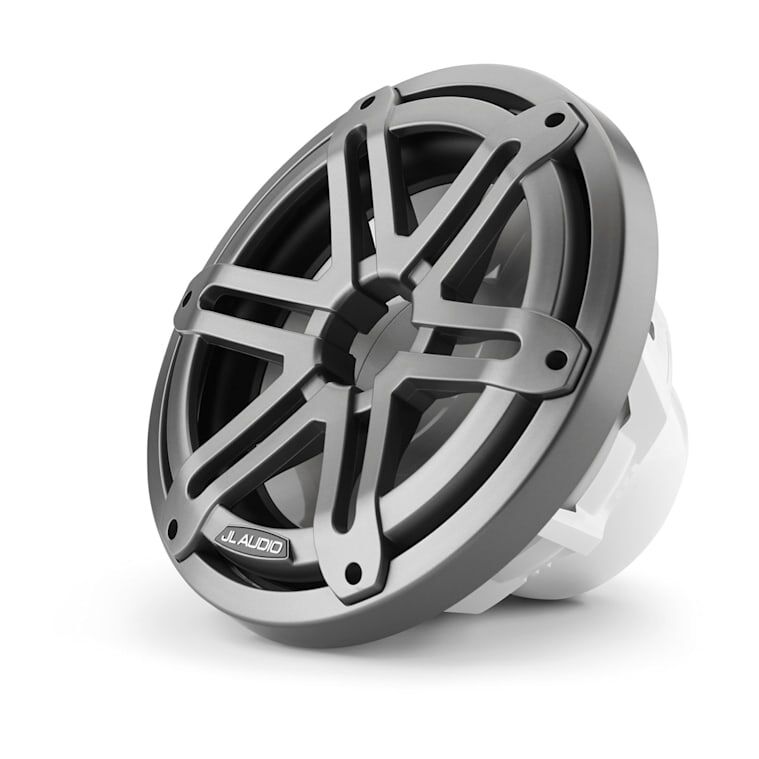

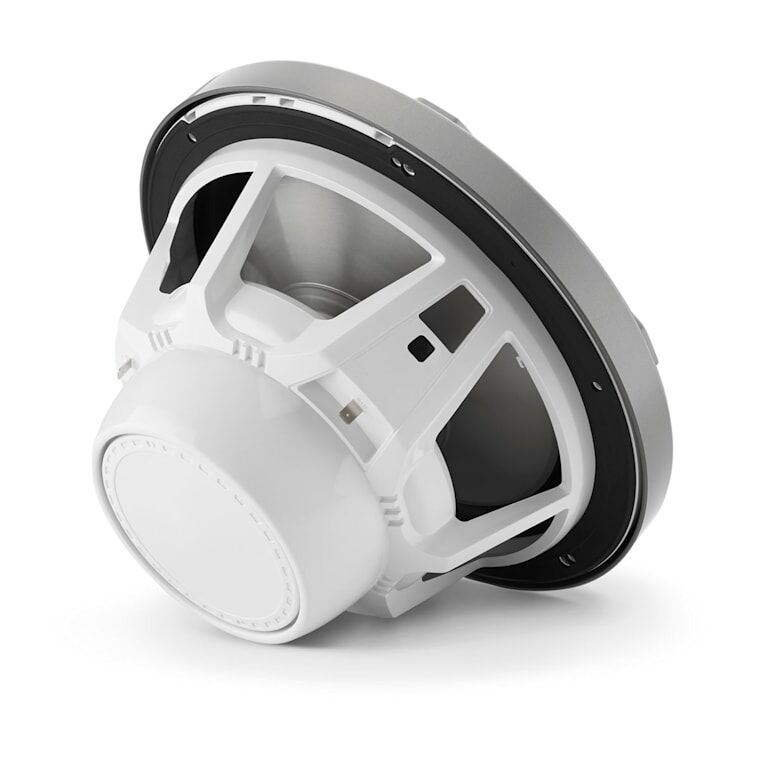

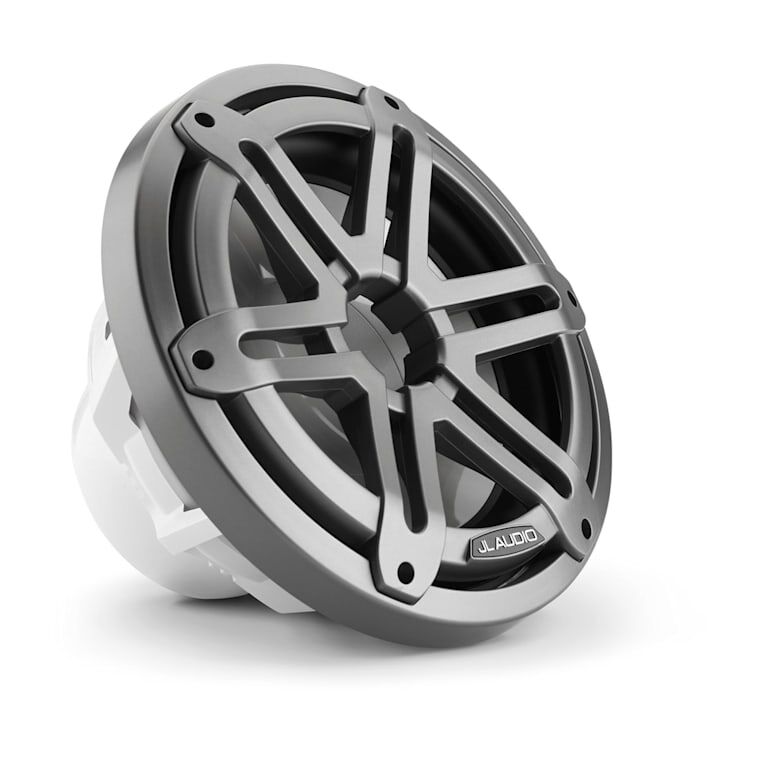

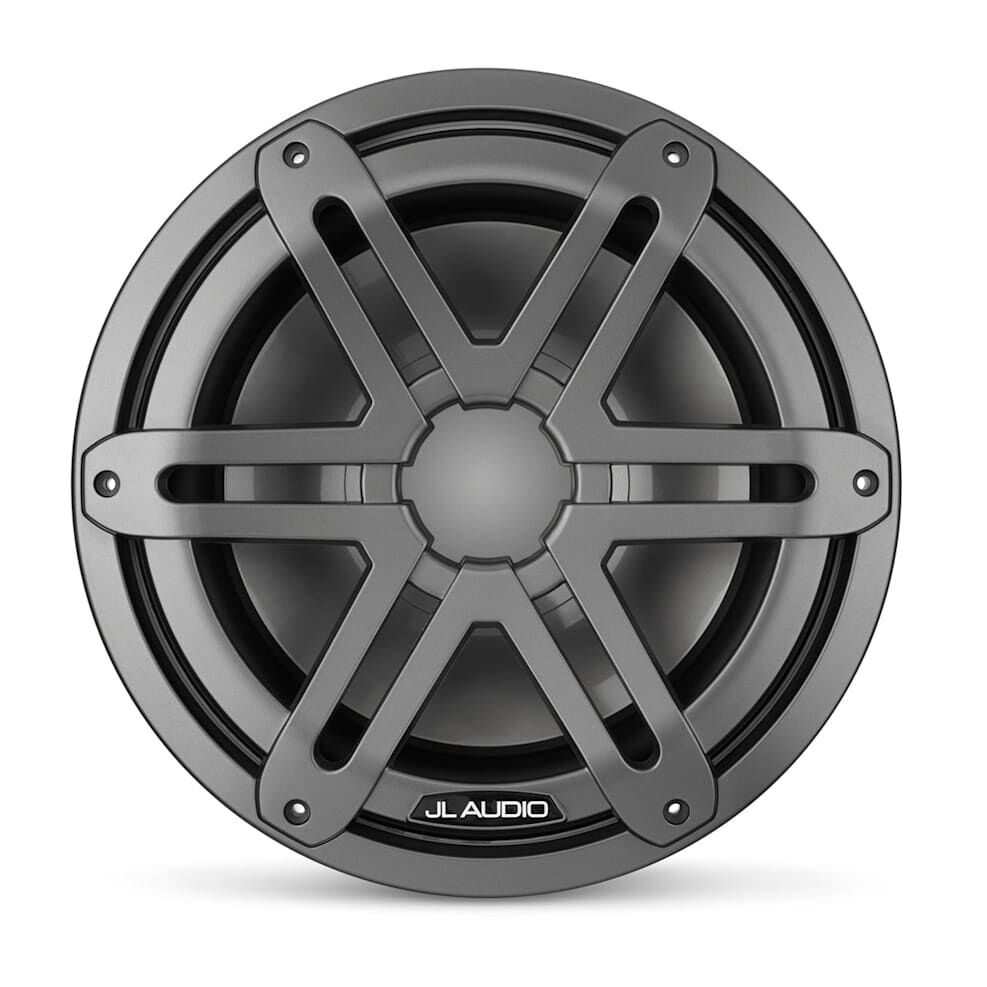

JL Audio M3 Marine Subwoofer, 10" with Grey Sport Grille
