Bring the thunder. The Signature Series 3i subwoofers deliver the drama with the premium low frequencies to enhance your listening experience.
Crystal-clear premium sound quality is suited for the marine environment.
Water-resistant connectors provide simplified installation and superior protection.
The rigorously tested marinised design has an IP65 rating.
Available in classic 10″ design as well as 10″ and 12″ sports style design.
CRGBW LED lights set the scene on your boat.
Built to last season after season, the Fusion® Signature Series 3i Marine Subwoofers include a supported 3-year warranty.
MARINISED CONNECTORS
New, water-resistant connectors now come standard. This makes installation easy and provides superior protection from the harsh marine environment.
REDESIGNED GRILLE
Material enhancements and protective engineering maintain the sharp aesthetic appeal of your speakers, year after year.
TRUE-MARINE™ PHILOSOPHY
Any product that bears the Fusion True-Marine seal of assurance has been designed by Fusion to withstand the harshest marine environments season after season and comes with an industry-leading 3-year warranty.
POLYPROPYLENE CONE TECHNOLOGY
This technology provides exceptional self-dampening, high-fidelity and bass reproduction to give you the most premium onboard listening experience imaginable.
LED ILLUMINATION
Cool white, red, green, blue, warm white. You can choose or mix colours to match the mood of your music.
SYSTEM INTEGRATION
These subwoofers are designed to work optimally with Fusion® stereo systems and amplifiers (sold separately) with custom DSP profiles. This requires the Fusion® Audio smart-device app for setup.
SPORTS SUBWOOFER
Available in white or grey, CRGBW LED lights are standard on 12″ size and optional on 10″ size.

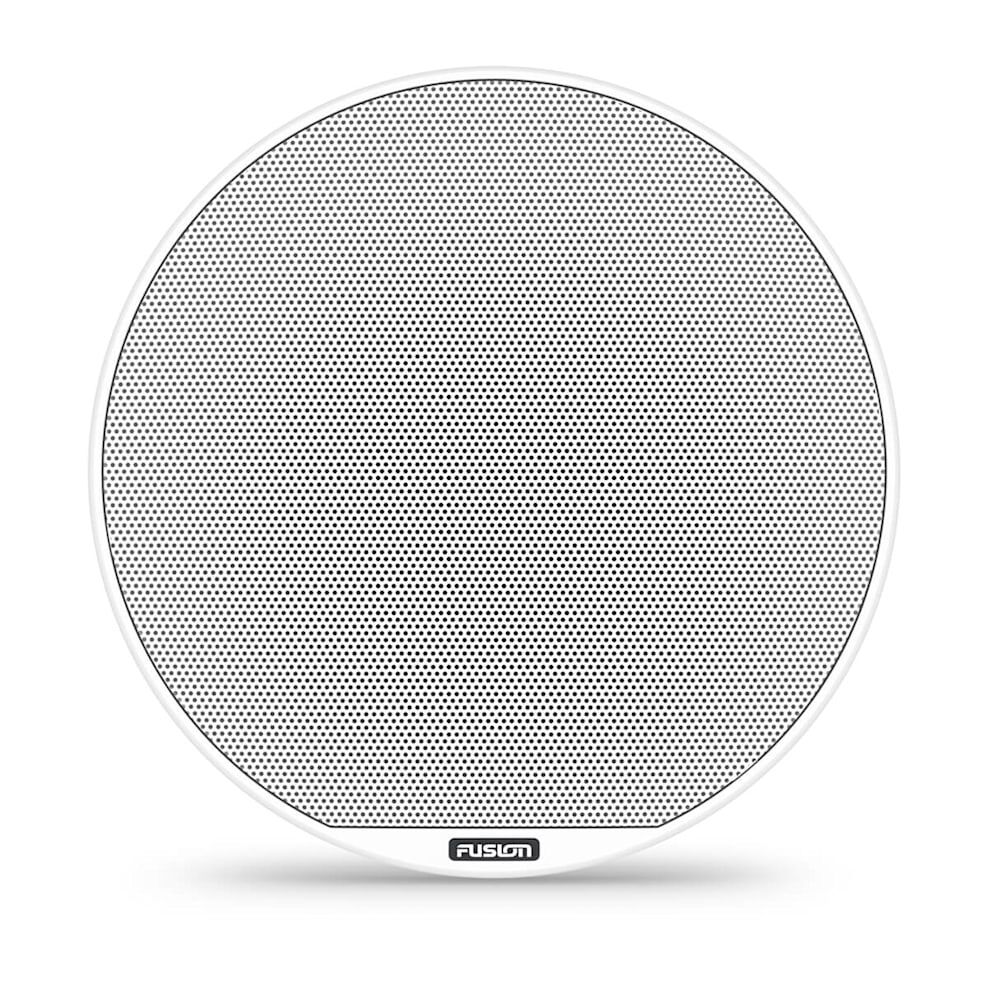

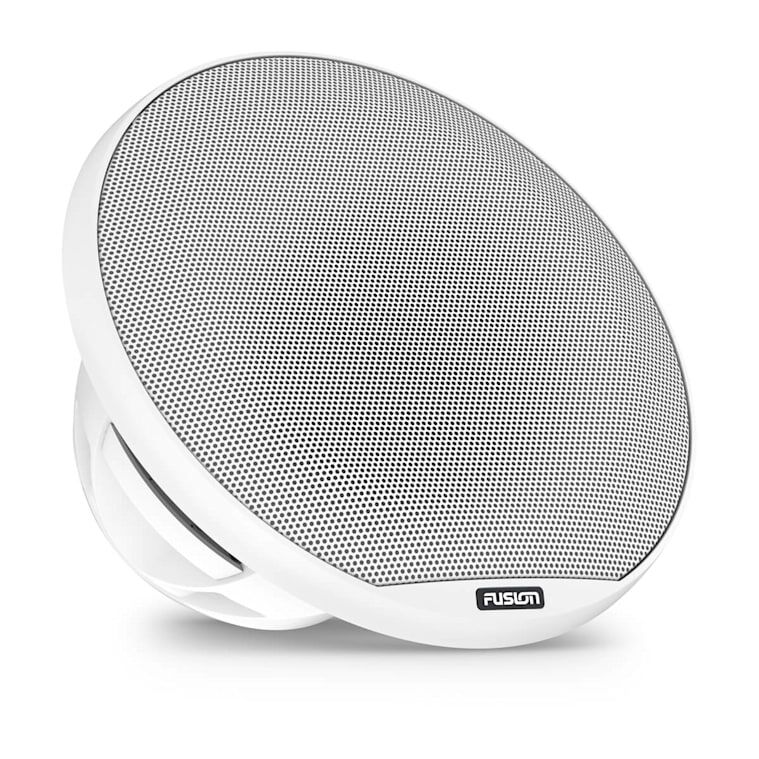

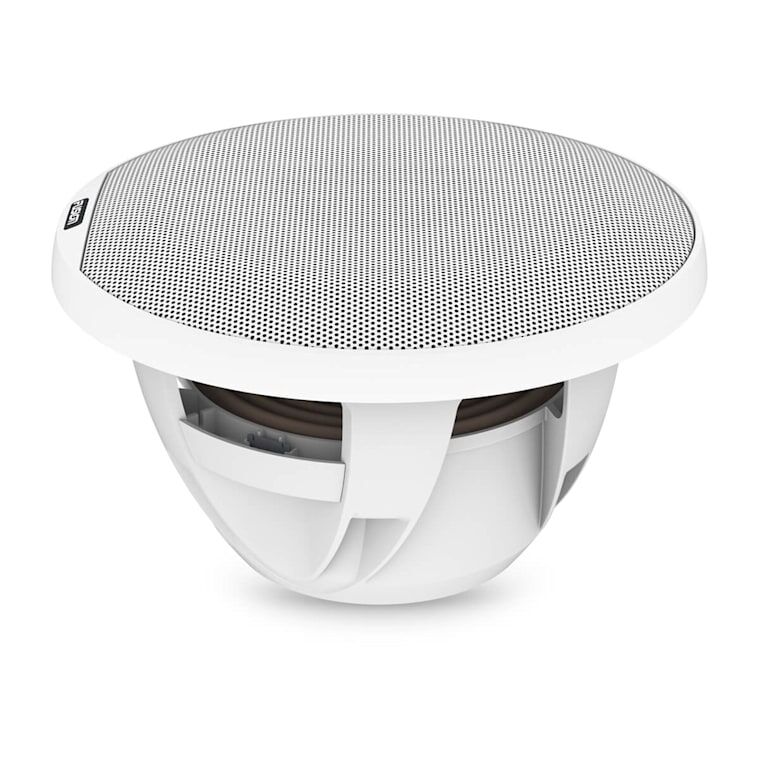

CLASSIC WHITE SUBWOOFER
The classically styled perforated metal grille is available in 10″ size.
SPECS
General | |
| Sizes | 10"/12" |
|---|---|
| Colour | 10": Classic White or Sports White or Sports Grey 12": Sports White or Sports Grey |
| Physical dimensions (Diameter) | 10" (Classic/Sports): 275 mm (10.83") 12" (Sports): 356 mm (14.02") |
| Physical dimensions (Depth) | 10" (Classic): 162mm (6.38") 10" (Sports): 172mm (6.77") 12" (Sports): 254mm (10") |
| Weight | 10" (Classic): 5.06 kg (11.2 lbs) 10" (Sports): 4.98 kg (11 lbs) 10" (Sports) with CRGBW: 5.12 kg (11.3 lbs) 12" (Sports): 10.93 kg (24.1 lbs) |
| Water and dust rating | IP65 |
| Speaker type | Subwoofer |
| Continuous power handling (RMS) | 10": 300 W 12": 700 W |
| Sensitivity (SPL @ 1 W/1 m) | 86 dB |
| Frequency response (+/- 3 dB) | 10": 30 Hz-2 kHz 12": 20 Hz-2 kHz |
| Nominal impedance | 4 Ω |
| Recommended amplifier power (RMS) | 10": 50-600 W 12": 200-1000 W |
| LED lighting | Yes - CRGBW (selected Sport models only) |
| LED supply voltage | 10.8-16 VDC (selected Sport models only) |
| LED Load Current @ 14.4 VDC (max) | 300 mA (selected Sport models only) |
| Operating temperature range | 0° to 50° C (32° to 122° F) |
| Cone material | Polypropylene cone with rubber surround |
| Warranty | 3 years |
Electrical features | |
| Compass safe distance | 10": 520 cm (205") 12": 460 cm (181") |
|---|---|
Connections | |
| Speaker connections | Flying Lead with Water-resistant 2-way Connector, 150mm (5.9") |
|---|---|
| LED connection | Flying Lead with Water-resistant 6-way Connector, 150 mm (5.9") (selected Sport models only) |
Mounting Dimensions | |
| Mounting diameter clearance | 10": 223mm (8.78") 12": 306mm (12.05") |
|---|---|
| Mounting depth clearance | 10": 133 mm (5.24") 12": 207mm (8.15") |
| Frontal grille protrusion | 10": 42 mm (1.65") 12": 50 mm (1.97") |
IN THE BOX
- One subwoofer (based on what you select)
- 6 Phillips stainless steel mounting screws, 4.8 mm x 50 mm (10 gauge x 2”)
- Water-resistant cable assembly with 2-pin connector (5.9" (150 mm))
- Water-resistant cable assembly with 6-pin connector ((5.9" (150 mm)); sports style with LED models only)
- Documentation
| SKU | 010-02774-00 |
|---|---|
| Barcode # | 0753759298036 |
| Brand | Fusion |
| Shipping Weight | 6.4100kg |

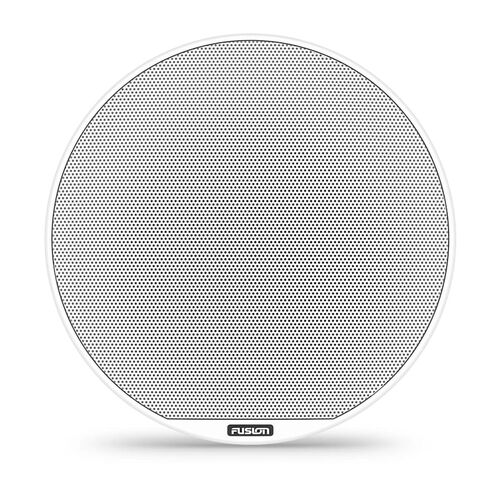

Fusion Signature Series 3i Marine Subwoofers, 10" 600-watt Classic white marine subwoofer
