Enjoy high-performance low-end frequencies and multi-color RGB LED lighting1 with the XS Series subwoofers from Fusion – designed to add another dimension to your on-water audio entertainment experience at a midrange price point.
Experience multicolour RGB LED lighting to brighten up your boating experience.
Create a 2.1 audio zone to reduce system cost and simplify installation.
Enjoy high-resolution bass reproduction from the quality polypropylene cone.
With an increase in real power, the voice coil provides a high-quality sound experience.
The subwoofers are available in 10″ designs with both classic- and sports-style grilles.
Engineered to last season after season, the subwoofers include a 3-year warranty.
DESIGNED AND ENGINEERED TO TRUE-MARINE™ STANDARDS
Built on the True-Marine design philosophy from Fusion, the XS Series subwoofers have achieved an IP65 rating for protection against dust and water ingress and have been tested to a high level of protection against salt fog, temperature, vibration and UV.
DESIGNED TO COMPLY WITH ISO12216
Tested to international standards for pressure and water ingress, the xs series subwoofers are designed and built to the highest industry standards for quality and robustness.
VERSATILE SYSTEM INTEGRATION
Built for system versatility and ease of integration, you can connect your XS Series subwoofer directly to a 2.1 audio zone compatible system such as the Apollo™ Series without the need for an external amplifier – reducing system cost and simplifying installation.
INJECTION-MOULDED POLYPROPYLENE CONE
By using a translucent cone, consistent multicolour illumination are incorporated into the system. it also produces defined, high-resolution low-frequencies from the excellent self-damping and bass reproduction.
LARGE DIAMETER VOICE COIL
With an increase in real power and efficiency, the large-diameter voice coil delivers a truly high-quality sound experience.
HIGH-QUALITY BASKET CONSTRUCTION
The basket is constructed using high-quality engineered plastics to deliver enhanced durability when exposed to the marine environment.
MULTICOLOUR RGB LED LIGHTING
The sports style XS Series subwoofers provide bright and even LED illumination in a wide range of colours, letting you choose any colour to match the mood, set the tone or complement your music.
CONTROLLING THE RGB LIGHTING
Control the colour (static or dynamic), brightness, light mode and speed by using the optional MS-RGBRC wireless remote control (sold separately).
SPORTS STYLE SUBWOOFER WITH RGB LED LIGHTING
The XS Series sports style subwoofer with RGB LED lighting is available in a 10″ size with interchangeable sports white/sports grey grilles and feature multicolour illumination options.
SPORTS STYLE SUBWOOFER
The XS Series sports style subwoofer is available in a 10” size with interchangeable sports white/sports grey grilles.

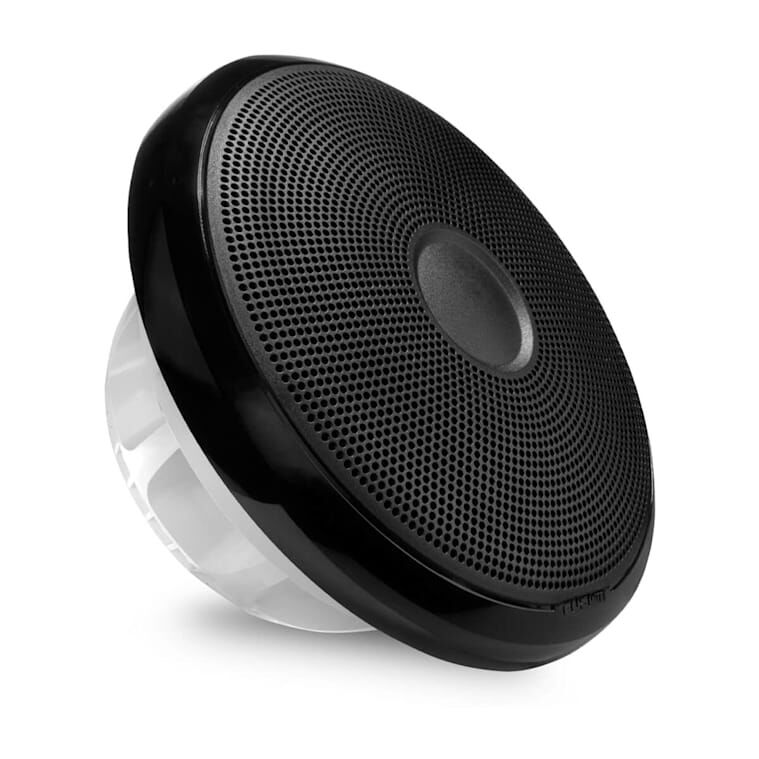

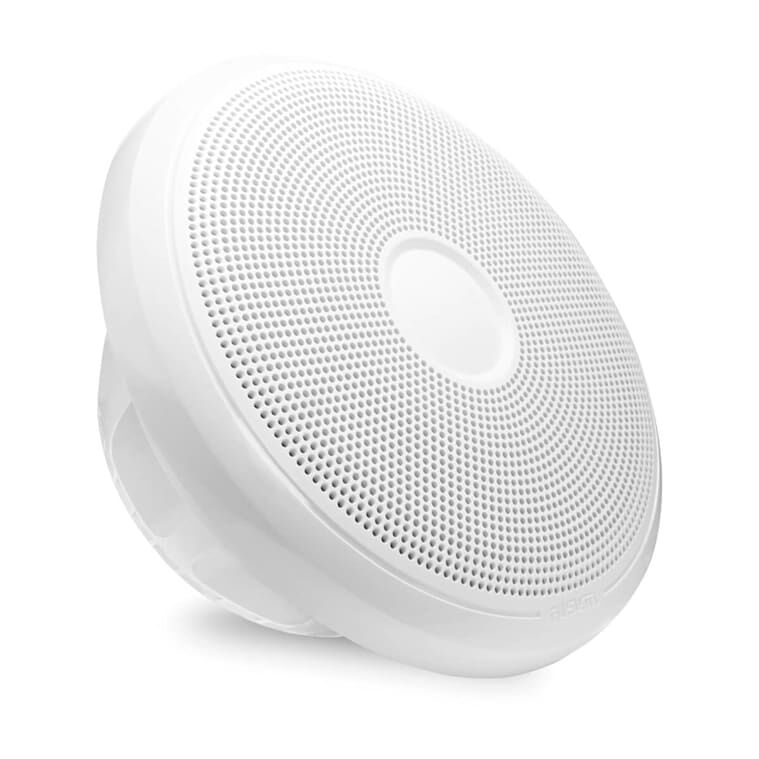

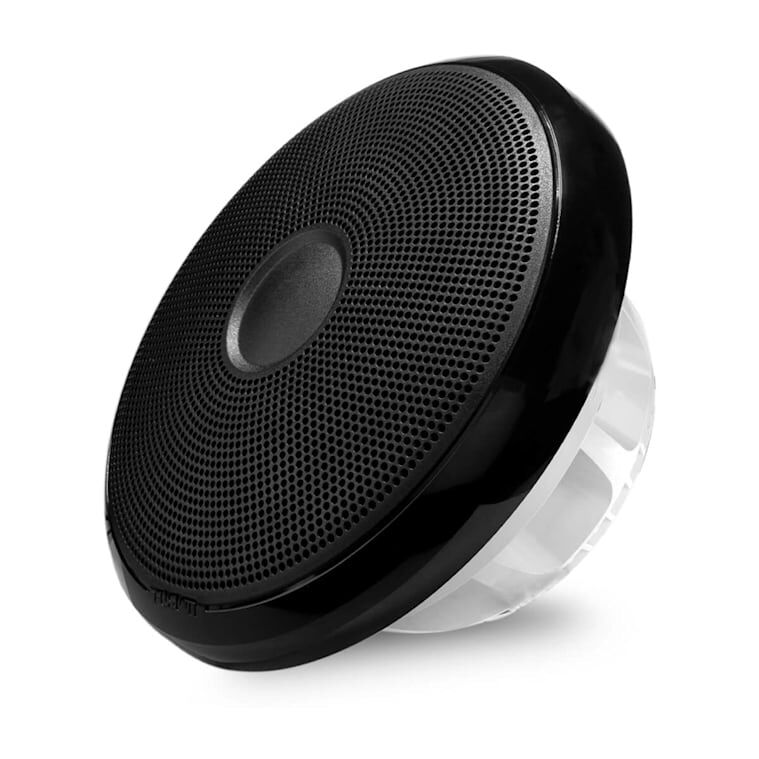

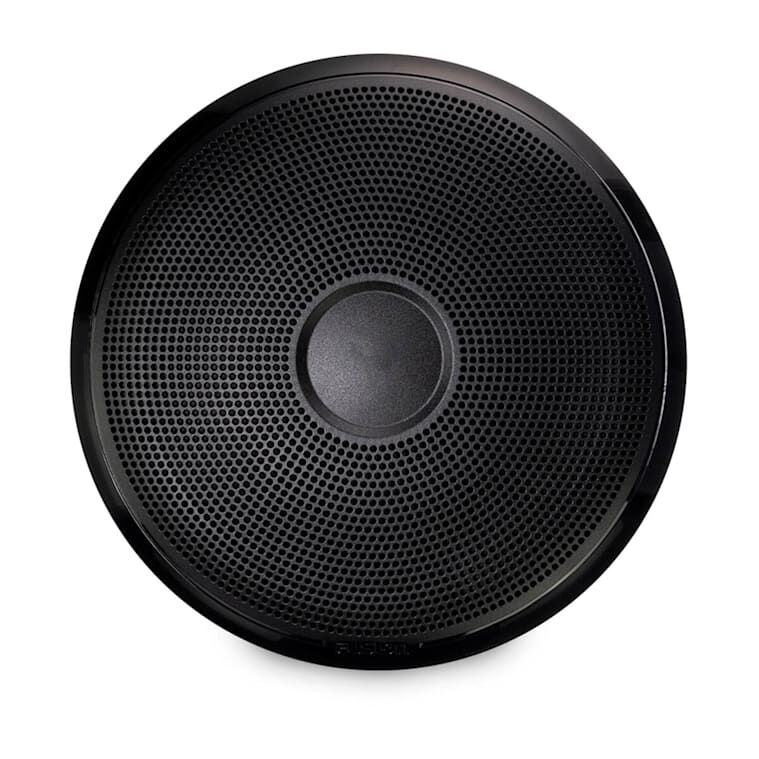

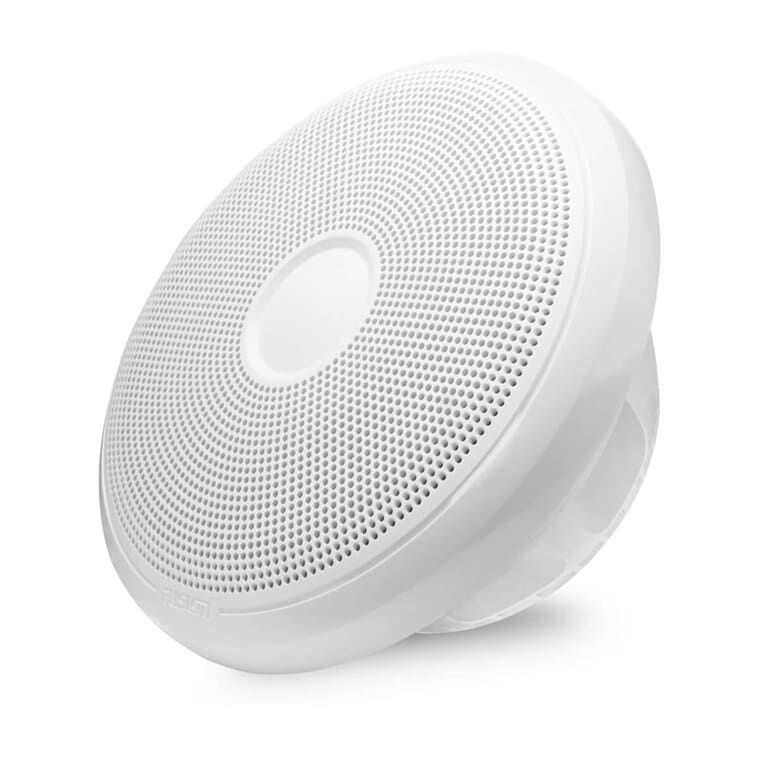

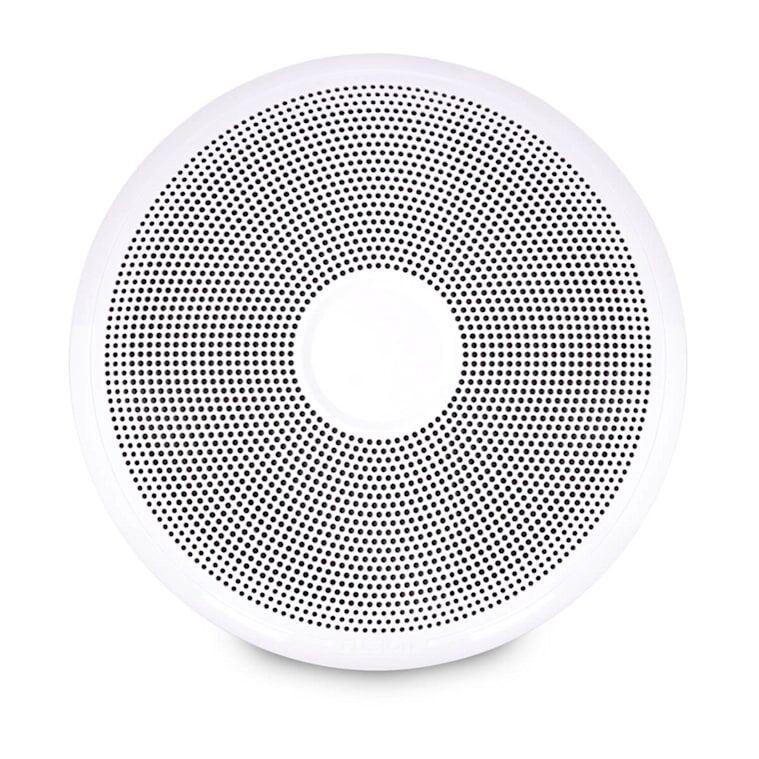

CLASSIC-STYLE SUBWOOFER
The XS Series classic-style subwoofer is available in a 10” size with interchangeable classic white/classic black grilles for a timeless, elegantly styled finish to blend in with the aesthetics of your boat.
SPECS
General |
|
| Sizes | 10" |
|---|---|
| Colour | Classic White/Black or Sports Gray/White |
| Physical dimensions (Diameter) | 10" (Classic/Sports): 274 mm (10.79") |
| Physical dimensions (Depth) | 10" (Classic): 142 mm (5.59") 10" (Sports): 147 mm (5.79") |
| Weight | 2.8 kg (6.17 lbs) |
| Water and dust rating | IP65 |
| Speaker type | Subwoofer |
| Continuous power handling (RMS) | 120 W |
| Sensitivity (SPL @ 1 W/1 m) | 87 dB |
| Frequency response (+/- 3 dB) | 30 Hz-2 kHz |
| Nominal impedance | 4 Ω |
| LED lighting | Yes - RGB (selected Sport models only) |
| LED supply voltage | 10.8-16 VDC (selected Sport models only) |
| LED Load Current @ 14.4 VDC (max) | 150 mA (selected Sport models only) |
| Operating temperature range | 0° to 50° C (32° to 122° F) |
| Cone material | Polypropylene cone with rubber surround |
| Warranty | 3 years |
Electrical features |
|
| Compass safe distance | 370 cm (146") |
|---|---|
Connections |
|
| Speaker connections | Spade Connectors |
|---|---|
| LED connection | Bullet Connectors (selected Sport models only) |
Mounting Dimensions |
|
| Mounting diameter clearance | 223 mm (8.78") |
|---|---|
| Mounting depth clearance | 113 mm (4.45") |
| Frontal grille protrusion | 37 mm (1.46") |
IN THE BOX
10" 600-Watt Classic Marine Subwoofer
- XS-S10CWB subwoofer
- 6 Phillips stainless steel mounting screws (4.8 mm x 50 mm / 10 gauge x 2”)
- Speaker grilles (1 classic white/ 1 classic black)
- Documentation
10" 600-Watt Sports Marine Subwoofer
- XS-S10SPGW subwoofer
- 6 Phillips stainless steel mounting screws (4.8 mm x 50 mm / 10 gauge x 2”)
- Speaker grilles (1 sports gray/1 sports white)
- Documentation
10" 600-Watt Sports Marine Subwoofer with RGB LED Lighting
- XS-SL10SPGW subwoofer
- 6 Phillips stainless steel mounting screws (4.8 mm x 50 mm / 10 gauge x 2”)
- Speaker grilles (1 sports gray/1 sports white)
- Documentation
COMPATIBLE DEVICES
Apollo RA670
Apollo RA770
Apollo WB670
Fusion® Apollo™ SRX400
Fusion BB100 Black Box
Fusion® MS-RA60 Marine Stereo
Fusion RA210 Marine Stereo
Fusion® RA70 Series Marine Stereos
Fusion® Signature Series Marine Amplifiers
| SKU | 010-02198-00 |
|---|---|
| Barcode # | 0753759221508 |
| Brand | Fusion |
| Shipping Weight | 4.0000kg |
