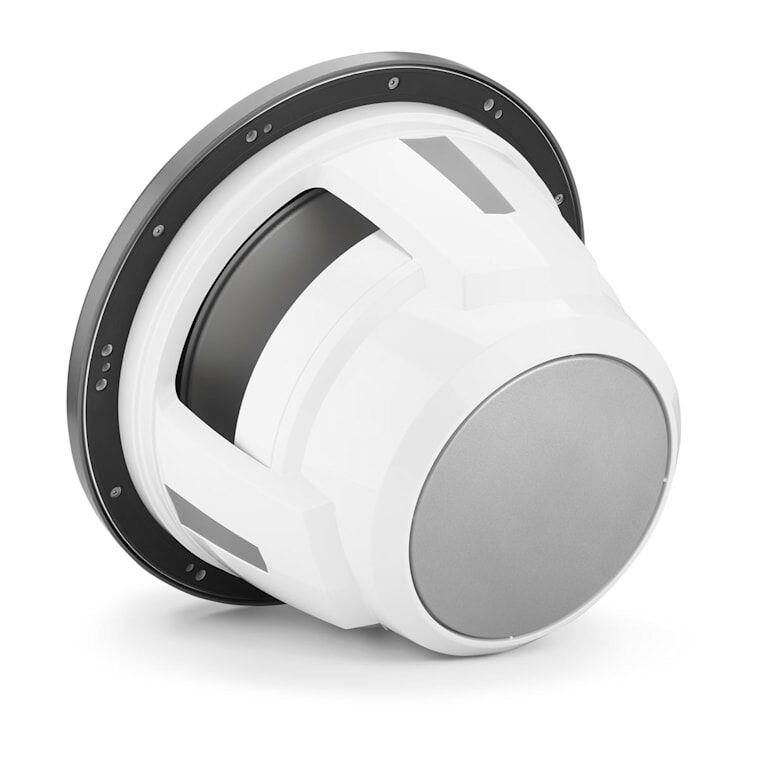

With oversized, overbuilt components and very powerful motor systems, M7s are extreme subwoofers optimised for high-power operation in open-air applications.
GENERATES STUNNING BASS IN OPEN-AIR APPLICATIONS
ENGINEERED FOR USE WITHOUT A DEDICATED ENCLOSURE
GRILLE AND TRIM RING ARE EASILY REMOVABLE FOR PAINTING
MODELS AVAILABLE WITH PATENTED LED ILLUMINATION
EXCEEDS INTERNATIONAL STANDARDS FOR SALT FOG AND UV EXPOSURE
2-YEAR WARRANTY
INCREDIBLE DISPLACEMENT
Displacement is a direct measure of a subwoofer’s output capability. With more than twice the displacement of most 10-inch subwoofers, the M7-12IB is in a class of its own.
INFINITE BAFFLE DESIGN
M7 marine subwoofers are purpose-engineered to operate without dedicated enclosures, needing only large volumes of air behind them.
HIGH POWERED
The M7 marine subwoofer easily handles up to 600 watts RMS.
DMA-OPTIMISED WOOFERS
Proprietary motor, suspension and cone modeling systems are employed, resulting in reduced distortion, improved transient performance and stellar bass sound quality.
REAL MARINE DUTY
For long-term use, all models are built to withstand saltwater marine environments and deliver years of listening enjoyment.

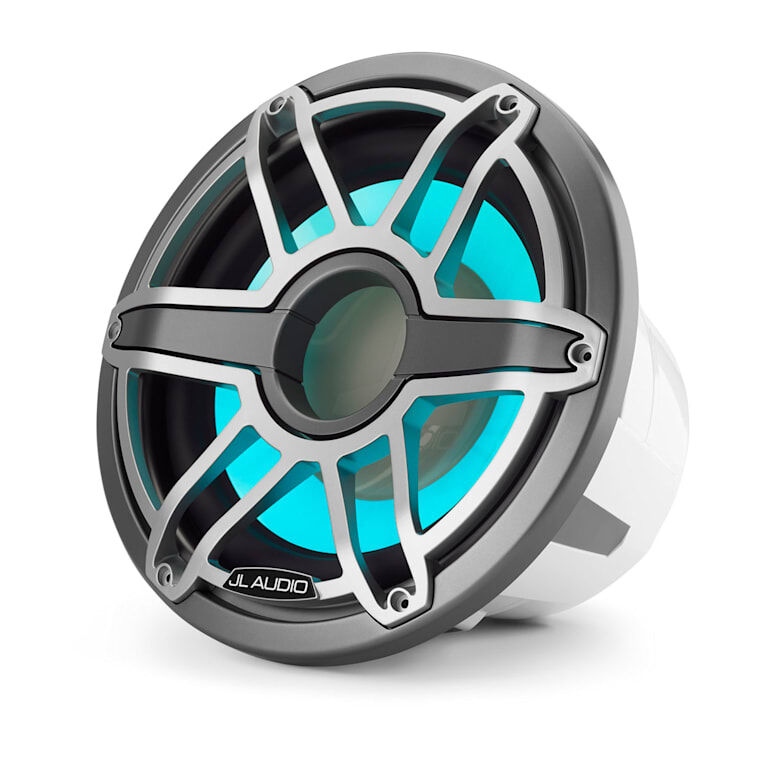

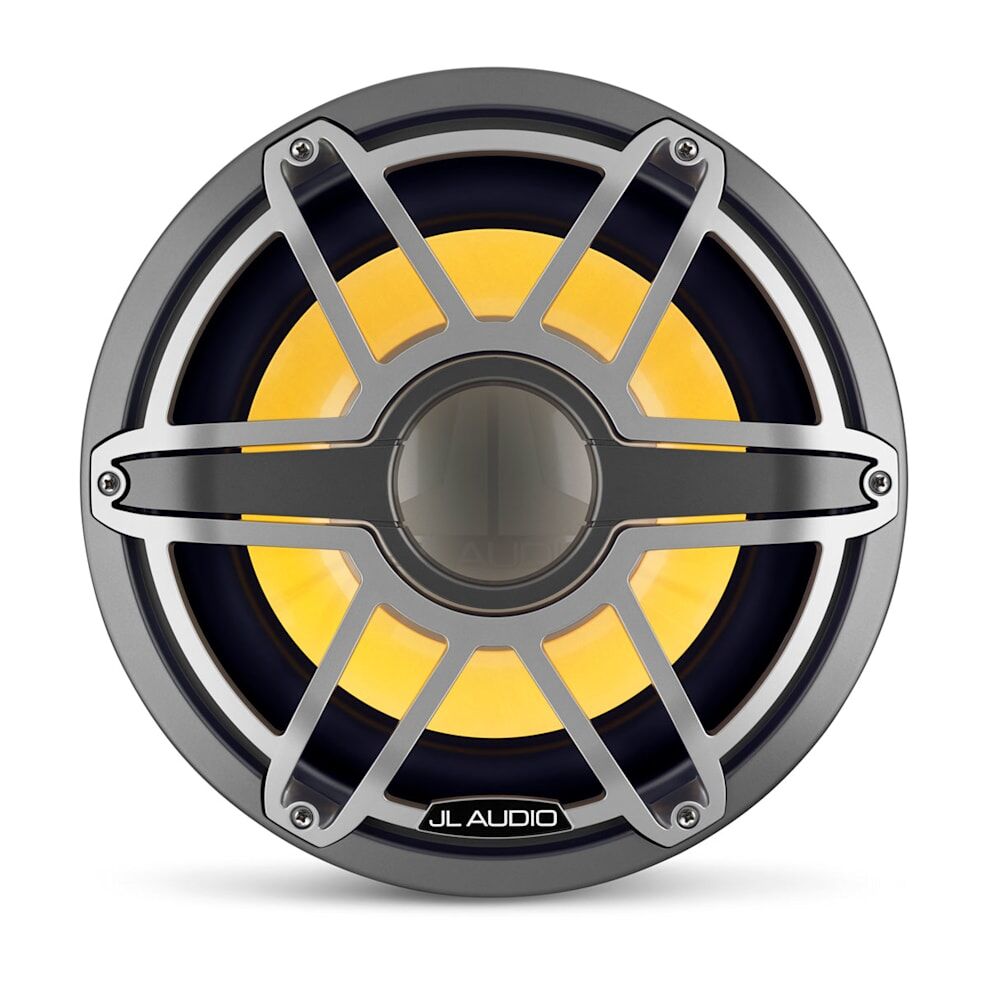

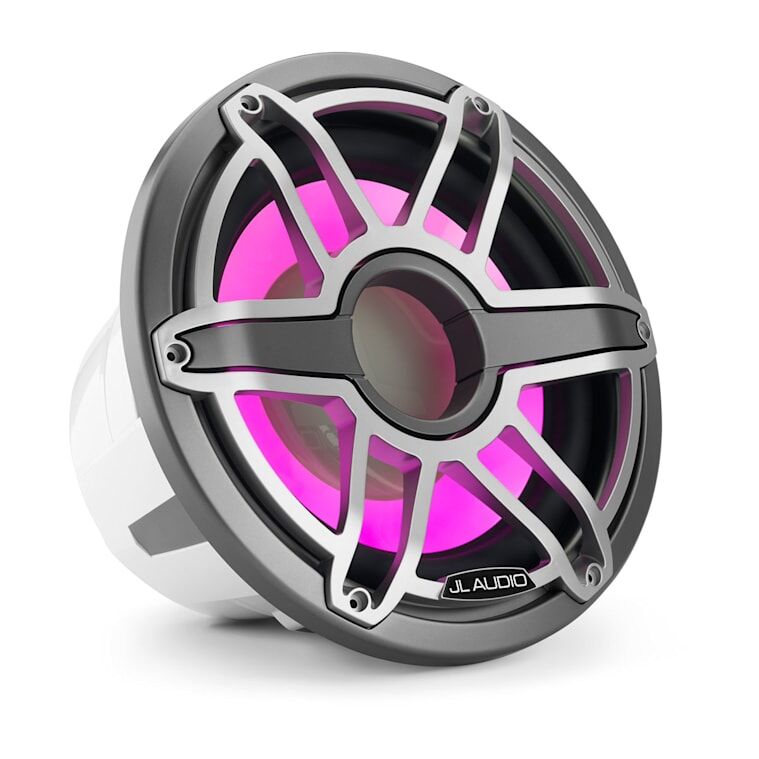

TRANSFLECTIVE™ RGB LED LIGHTING
Get a patented system on sport models for smooth lighting with no hot spots or reflections.
SPECS
General |
|
| Sizes | 12" |
|---|---|
| Colour | White Classic, White Sport or Titanium Sport |
| Physical dimensions (Diameter) | 356 mm (14") |
| Physical dimensions (Depth) | 12" (Classic): 239 mm (9.39") 12" (Sport): 240 mm (9.42") |
| Weight | 11.5 kg (25.35 lbs) |
| Speaker type | Infinite Baffle Subwoofer |
| Continuous power handling (RMS) | 600 W |
| Sensitivity (SPL @ 1 W/1 m) | 86.7 dB |
| Nominal impedance | 4 Ω |
| Recommended amplifier power (RMS) | 200-600 W |
| LED lighting | Yes - Transflective™ (selected Sport models only) |
| LED supply voltage | 10-14.4 VDC |
| LED Load Current @ 14.4 VDC (max) | 648 mA |
| Voice coil diameter | 4" (102 mm) |
| Cone material | Injection-molded, mica-filled polypropylene |
| Warranty | 2 years |
Connections |
|
| Speaker connections | Spade Connectors |
|---|---|
| LED connection | Flying Lead with 4-conductor 20 AWG wire (selected Sport models only) |
Mounting Dimensions |
|
| Mounting depth clearance | 202 mm (7.94") |
|---|---|
| Frontal grille protrusion | 12" (Classic): 37 mm (1.45") 12" (Sport): 38 mm (1.48") |
| Mounting hole | 306 mm (12.0625") |
| Bolt hole circle | 325 mm (12.813") |
Parameters |
|
| Free Air Resonance (FS) | 35.34 Hz |
|---|---|
| Electrical “Q” (Qes) | 0.856 |
| Mechanical “Q” (Qms) | 10.389 |
| Total “Q” (Qts) | 0.791 |
| Equivalent Compliance (Vas) | 56.35 L |
| One-way linear excursion (Xmax; specs are derived via one-way voice coil overhang method with no correction factors applied) | 18.5 mm (0.73") |
| Reference Efficiency (NO) | 0.28% |
| Effective piston area (SD) | 0.052 m² |
| DC resistance (RE) | 3.543 Ω |
Sealed Enclosure Specifications |
|
| Wall thickness | 19 mm (0.75") |
|---|---|
| Front baffle thickness | 19 mm (0.75") |
| Volume (net int.) | 85 L |
| External width (W) | 610 mm (24") |
| External height (H) | 470 mm (18.5") |
| External depth (D) | 400 mm (15.75") |
| -3 dB cutoff frequency (F3) | 35.52 Hz |
| System resonance (FC) | 45.58 Hz |
| System Q at resonance (QTC) | 1.02 |
Ported Enclosure Specifications |
|
| Wall thickness | 19 mm (0.75") |
|---|---|
| Front baffle thickness | 19 mm (0.75") |
| Volume (net int.) | 141.6 L |
| External width (W) | 762 mm (30") |
| External height (H) | 470 mm (18.5") |
| External depth (D) | 521 mm (20.5") |
| Internal port diameter (ID) | 127 mm (5") |
| Port length (L) | 343 mm (13.5") |
| Tuning frequency (FB) | 25 Hz |
| -3 dB cutoff frequency (F3) | 20.96 Hz |
Additional |
|
| Additional | The enclosure recommendations listed above are external dimensions which assume the use of 19 mm (0.75) thick material. If you are using 16 mm (0.625) thick material, subtract 6.5 mm (0.25) from each dimension. Do not use any material with a thickness of less than 16 mm (0.625) as this may compromise the rigidity of the enclosure. All enclosure volumes listed above are net internal volumes. Driver displacement, port displacement and brace displacement must be added to obtain the final gross internal volume. All enclosure dimensions above have already taken this into account. When using multiples in a common enclosure you will need to recalculate the enclosure and port dimensions. For assistance please contact your authorised JL Audio dealer or JL Audio Technical Support. We recommend the use of this in a bi-amplified system using high-quality satellites and a high-quality amplifier. We do not recommend the use of this with a passive crossover (coil), as this type of device will adversely affect performance. |
|---|---|
IN THE BOX
- One marine subwoofer
- One grille
- Six stainless steel mounting screws
- Six stainless steel washers
COMPATIBLE DEVICES
Fusion Apollo™ MS-RA800 marine stereo
JL Audio® M6 Enclosed Tower Speakers
JL Audio® M6 Marine Speakers
JL Audio® MHD Marine Amplifier
JL Audio® MVi Marine Amplifier
JL Audio® XDM Car and Marine Amplifier
| SKU | 010-03289-00 |
|---|---|
| Barcode # | 0699440936743 |
| Brand | JL Audio |
| Shipping Weight | 13.0500kg |
JL Audio M7 Marine Subwoofer, 12" with LED and Titanium Sport Grille
