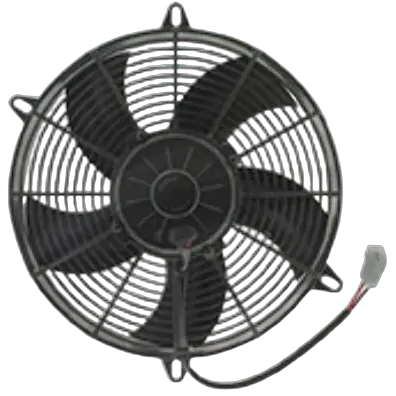

The VA59-BP70/LL-88S (EF9630) 24v 11" SPAL Pusher Fan is High Output thermo fan and features a Skew (curved) Blade Design which can push up to 1407cfm / 2390m3/h.
Individually balanced for long life, the EF9630 11" Pusher Fan features a fully sealed water & dust-proof motor of superior quality and backed with a 3-year manufacturers .
| EF9630 11" SPAL THERMO FAN DETAILS | |
|---|---|
| SPAL Fan Model # | VA59-BP70/LL-88S |
| Voltage | 24V |
| Flow Type | Pusher |
| Blade Diam. | 11 inch (280mm) |
| Blade Type | Skew |
| Shroud Type | Finger Guard |
| Amps | 6.3 |
| CFM | 1407 |
| M3/H | 2390 |
| Spec. Sheet | View Specifications  |
| EF9630 11" SPAL THERMO FAN DIMENSIONS | |
|---|---|
| A | 303mm / 11.93" |
| B | 315mm / 12.4" |
| C | 172.5mm / 6.79" |
| D | 299mm / 11.77" |
| E | 94.7mm / 3.73" |
 |
|
| ABOUT SPAL |
|---|
|
All SPAL Fans are individually balanced & tested to provide optimal performance and life. From the motor to the fan to the shroud, all components are completely designed, manufactured and tested in SPAL's state-of-the-art facility in Correggio, Italy. href=" ?filter.p.tag=SPAL+Accessory" title=" More">
 |
Designed to withstand the harshest environments, SPAL fans are unmatched in quality and reputation.
| SKU | EF9630 |
|---|---|
| Barcode # | 9316042352795 |
| Brand | SPAL |
| Shipping Weight | 5.0000kg |
| Shipping Width | 0.085m |
| Shipping Height | 0.315m |
| Shipping Length | 0.303m |
SPAL Thermo Pusher Fan - 11" - 24V - 1407 CFM - VA59-BP70/LL-88S
More infoMake 4 payments of $107.00 over 8 weeks and get it now!
Calculate Shipping
The VA59-BP70/LL-88S (EF9630) 24v 11" SPAL Pusher Fan is High Output thermo fan and features a Skew (curved) Blade Design which can push up to 1407cfm / 2390m3/h.
Individually balanced for long life, the EF9630 11" Pusher Fan features a fully sealed water & dust-proof motor of superior quality and backed with a 3-year manufacturers .
| EF9630 11" SPAL THERMO FAN DETAILS | |
|---|---|
| SPAL Fan Model # | VA59-BP70/LL-88S |
| Voltage | 24V |
| Flow Type | Pusher |
| Blade Diam. | 11 inch (280mm) |
| Blade Type | Skew |
| Shroud Type | Finger Guard |
| Amps | 6.3 |
| CFM | 1407 |
| M3/H | 2390 |
| Spec. Sheet | View Specifications |
| EF9630 11" SPAL THERMO FAN DIMENSIONS | |
|---|---|
| A | 303mm / 11.93" |
| B | 315mm / 12.4" |
| C | 172.5mm / 6.79" |
| D | 299mm / 11.77" |
| E | 94.7mm / 3.73" |
|
|
| ABOUT SPAL |
|---|
|
All SPAL Fans are individually balanced & tested to provide optimal performance and life. From the motor to the fan to the shroud, all components are completely designed, manufactured and tested in SPAL's state-of-the-art facility in Correggio, Italy. href=" ?filter.p.tag=SPAL+Accessory" title=" More">
|
| SKU | EF9630 |
|---|---|
| Barcode # | 9316042352795 |
| Brand | SPAL |
| Shipping Weight | 5.0000kg |
| Shipping Width | 0.085m |
| Shipping Height | 0.315m |
| Shipping Length | 0.303m |
