Description

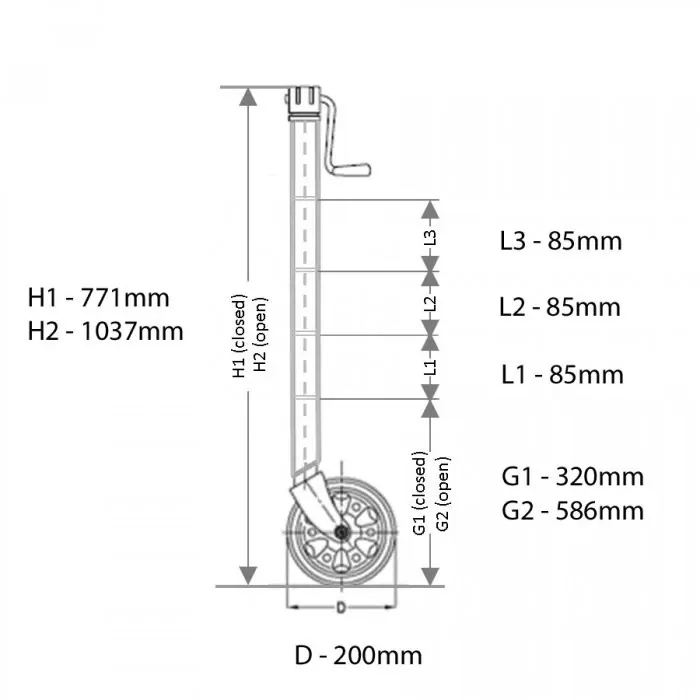

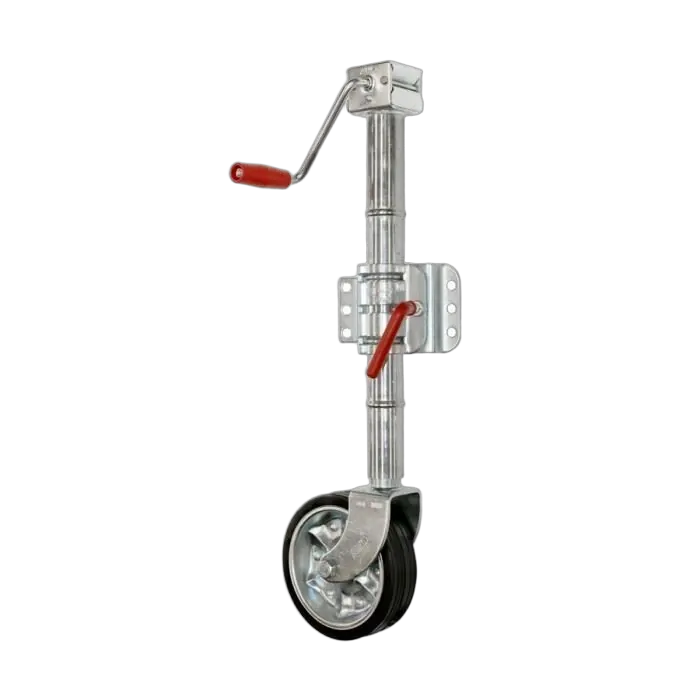

The side wind design allows unrestricted movement where conventional top wind units are obstructed by items mounted on your drawbar.The overall height of this jockey wheel with 4 clamping positions makes it suitable of a huge range of applications.The integrated gearbox provides effortless winding with a static capacity of up to 400kg.The Alko 628500 is a extra tall jockey wheel with a 200mm (8") solid tyre.The zinc coated 48mm diameter shaft has a lift range of 320mm to 841mm between the ground and centre of drawbar.
Features
- Side winding gear driven operation
- Huge height range
- Large heavy duty wheel for easy manoeuvring on soft or uneven surfaces
- Included Alko Extra Wide Clamp - this can bolted or welded on. (Bolts not included)
- Zinc coated for lasting protection
- 1 year warranty.
SKU | 450-00618 |
---|---|
Barcode # | OEBC523988 |
Brand | Alko |
Shipping Weight | 9.0000kg |
Shipping Width | 0.230m |
Shipping Height | 0.780m |
Shipping Length | 0.220m |
