Description

Alko's Premium range of jockeys wheels with Swivel Brackets enables quick and easy uncoupling of your caravan or trailer. Simply pull the release handle and the jockey wheel rotates between upright and travelling positions.This time saving feature means never again will you need to remove and store your jockey wheel.

Made from high quality materials rated with a static capacity of 400kg, the range includes multiple bracket options and a choice of wheels sizes from 150mm to 250mm.The swivel bracket can be welded or bolted on using the range of specialty U-bolt kits available to suit your A-frame needs.

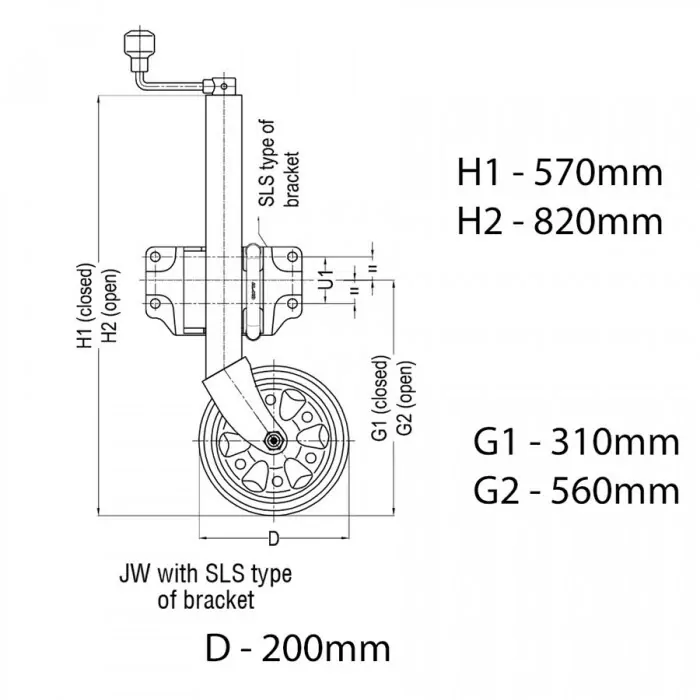

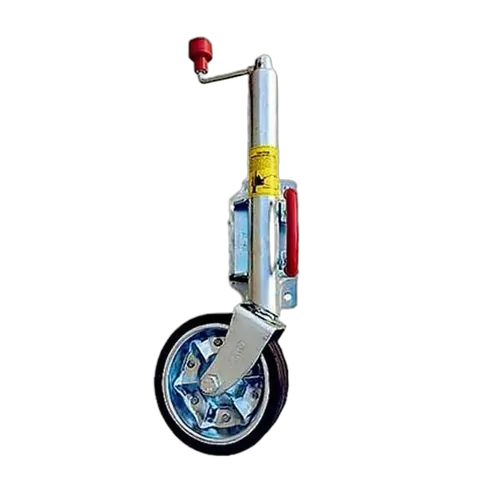

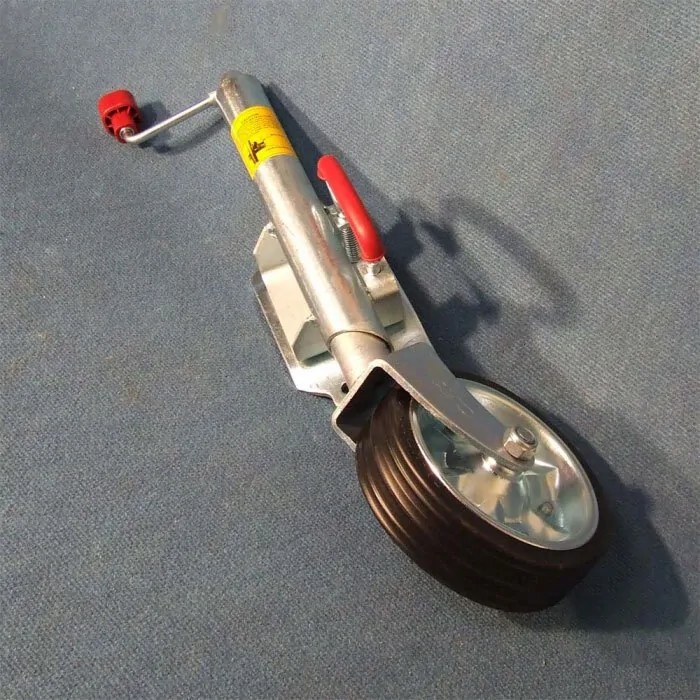

The Alko 628204 is a standard height jockey wheel with a small swivel bracket and 200mm (8") solid tyre.The zinc coated 48mm diameter shaft has a maximum extension of 250mm with a lift range of 310mm to 560mm between the ground and centre of drawbar.

This unit is ideal to weld on 100mm A-frame or u-bolt to 50mm A-frame such as ones found on box trailers. It will provide easy movement on soft or uneven ground once detached from the tow vehicle.

Features

• Swivel bracket allows the jockey wheel to stay permanently attached.
• No need to remove for storage
• Simple swing away action for travelling position
• Angle tube prevents rotation when stowed
• Large heavy duty wheel for easy manoeuvring on soft or uneven surfaces
• Zinc coated for lasting protection
• 1 year warranty.
