Description

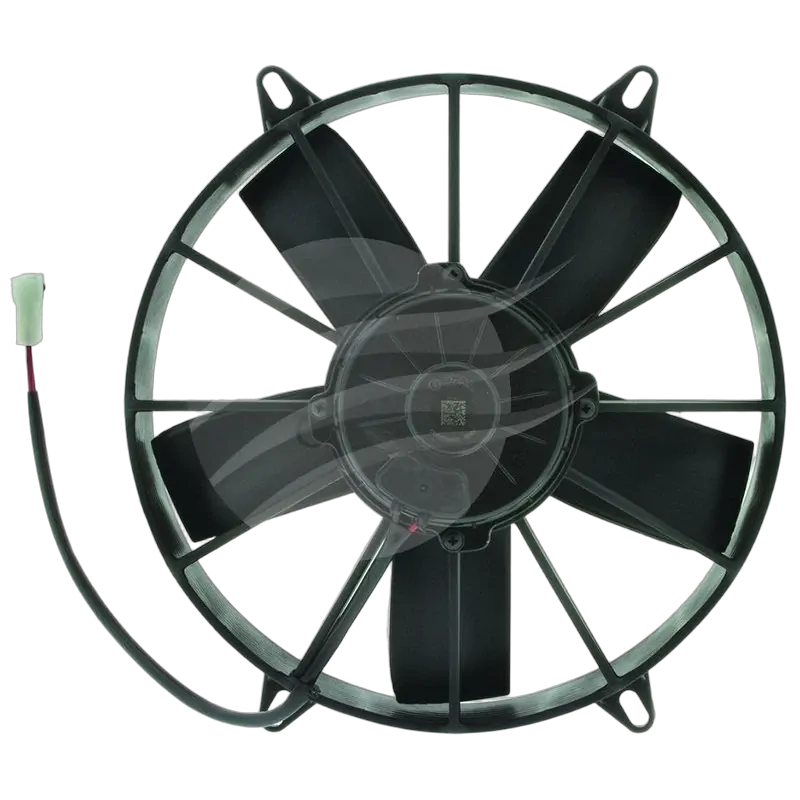

The VA03-AP70/LL-37A (EF3604) 12v SPAL Puller is a high-output thermo fan suitable for a wide array of uses from high-performance auto cooling to industrial and other commercial applications.
The EF3604 11" SPAL Fan features a very rugged design with aggressive paddle blade which can pull up to 1310cfm / 2225m3/h. Individually balanced for long life, this fan features a fully sealed water & dust-proof long-life motor.
| EF3604 11" SPAL THERMO FAN DETAILS | |
|---|---|
| SPAL Fan Model # | VA03-AP70/LL-37A |
| U.S. Part # | 30102054 |
| Motor Type | Long-Life IP68 |
| Voltage | 12V |
| Flow Type | Puller |
| Blade Diam. | 11 Inch (280mm) |
| Blade Type | Straight |
| Shroud Type | Open Shroud |
| Amps | 14 |
| CFM | 1310 |
| M3/H | 2225 |
| Spec. Sheet | VA03-AP70/LL-37A  |
| 3-Year Manufacturers |
|
| Included | SPAL Fan w/Standard Connector See SPAL Accessories for Mounts etc. |
| EF3604 11" SPAL THERMO FAN DIMENSIONS | |
|---|---|
| A | 304mm / 11.97" |
| B | 315mm / 12.4" |
| C | 173mm / 6.81" |
| D | 299mm / 11.77" |
| E | 94.5mm / 3.72" |
 |
|
| ABOUT SPAL |
|---|
|
All SPAL Fans are individually balanced & tested to provide optimal performance and life. From the motor to the fan to the shroud, all components are completely designed, manufactured and tested in SPAL's state-of-the-art facility in Correggio, Italy. title=" More" href=" ?filter.p.tag=SPAL+Accessory">
 |
Designed to withstand the harshest environments, SPAL fans are unmatched in quality and reputation.
Specifications
| SKU | EF3604 |
|---|---|
| Barcode # | 9316042309751 |
| Brand | SPAL |
| Shipping Weight | 5.0000kg |
| Shipping Width | 0.095m |
| Shipping Height | 0.315m |
| Shipping Length | 0.304m |
SKU: EF3604

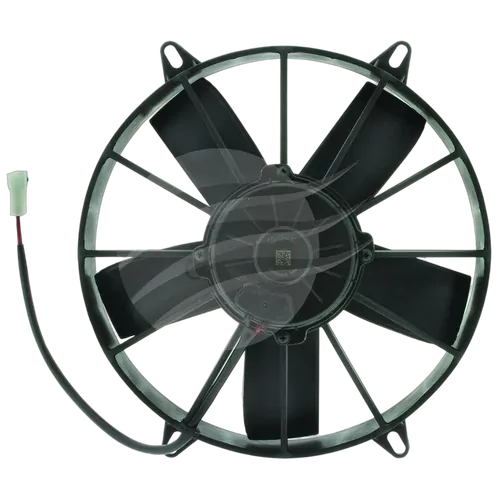

SPAL HP Thermo Puller Fan - 11" - 12V - 1310CFM - VA03-AP70/LL-37A
