Built for life on the move, the Scanstrut Ventura Series delivers compact, durable utility sockets for overlanders, vanlifers, and RV explorers. The Ventura Anderson 50A Solar Connector works seamlessly with the rest of the Ventura Series, integrating power, water, solar, and more into a compact, clean, and unified look for your exterior connections.

With its compact, rugged design, this 50A connector makes it easy to plug a range of high power devices into your vehicle's electrical system. From charging your onboard battery or powerbank using solar panels or mains chargers, to powering high draw gear outside your vehicle, or even taking power to a trailer, this 50A connector keeps your power flowing. Designed for outdoor life, this fixed, heavy-duty connector won’t work loose, and reliability and high performance are ensured thanks to the genuine Anderson SB connector fitted inside.

Designed using Scanstrut's renowned marine engineering expertise, this Ventura Series product has been rigorously tested for UV exposure and waterproofing. Featuring marine-grade 316 stainless steel components, it will deliver long-lasting performance in the harshest environments. It features a sleek, low-profile design, IP68 & IP69K waterproof rating, and a spring-loaded, click-shut lid, keeping your connections safe and your adventures powered, wherever the road takes you.

Please note: This product is supplied without crimp terminals for the cable.

This connector supports a maximum cable size of 16mm².

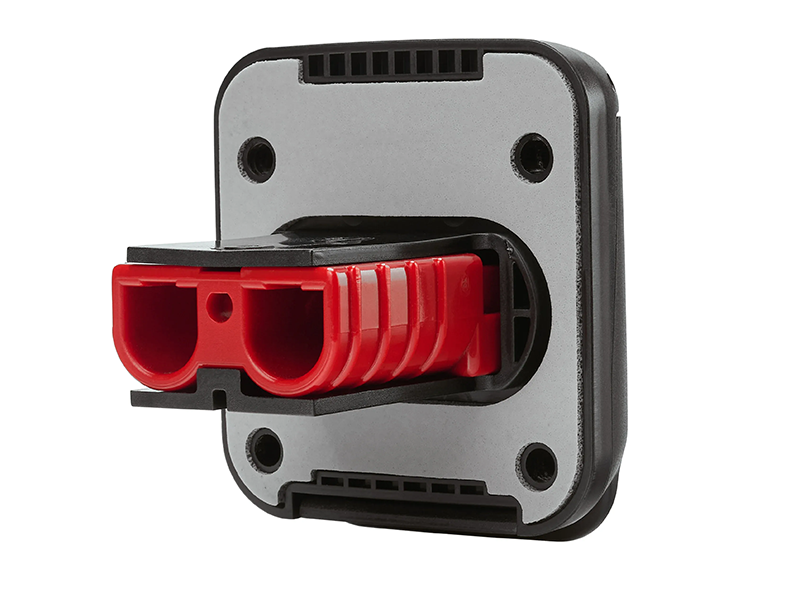

If you need to replace the red Anderson SB50 connector housing for one of another colour (e.g. SB50 grey), it can easily be removed using a T10 Torx driver

Features

• IP68 & IP69K waterproof  - seals out everything from desert dust to torrential downpours & industrial-grade washdowns

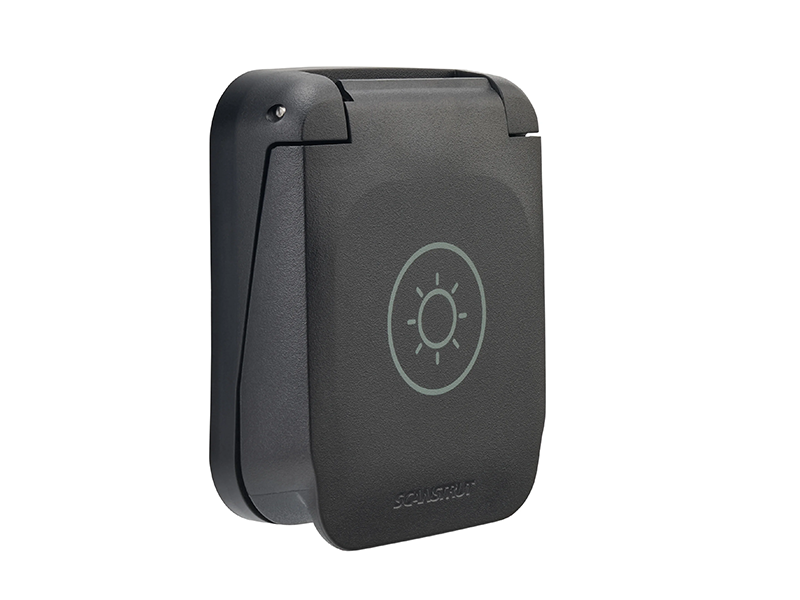

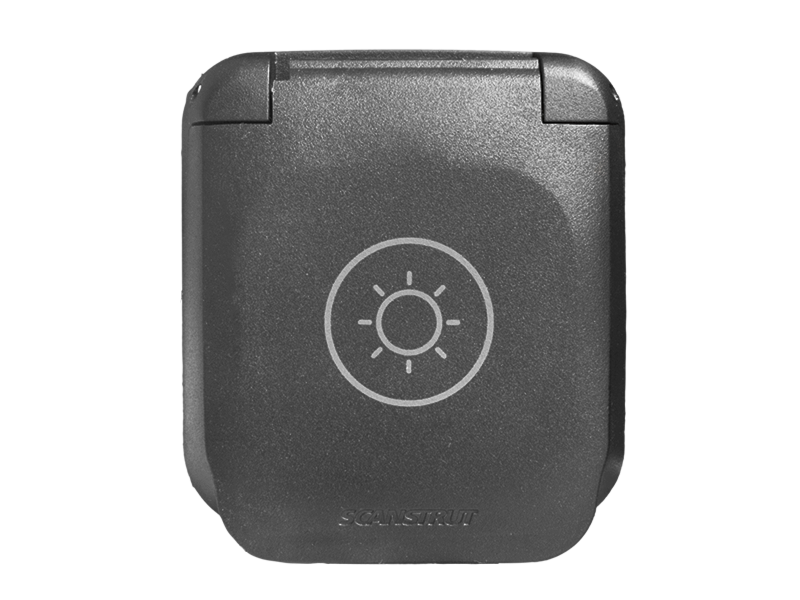

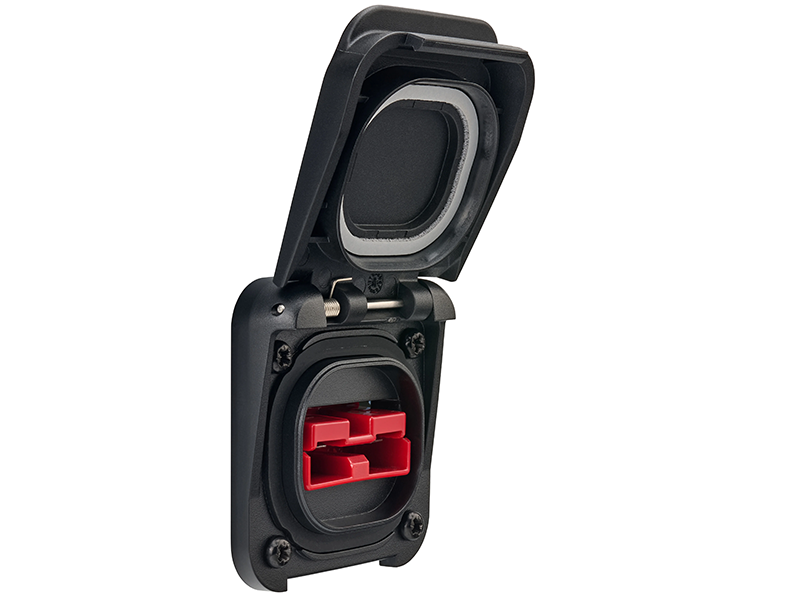

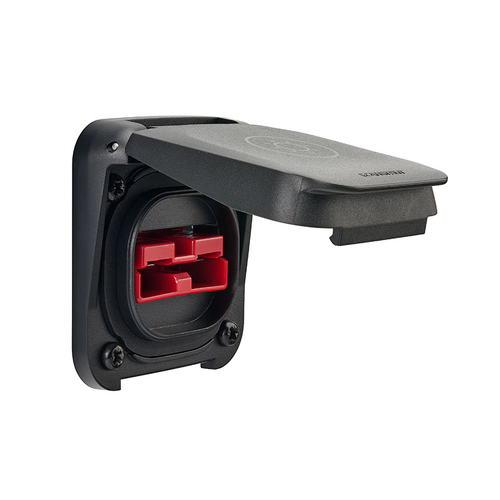

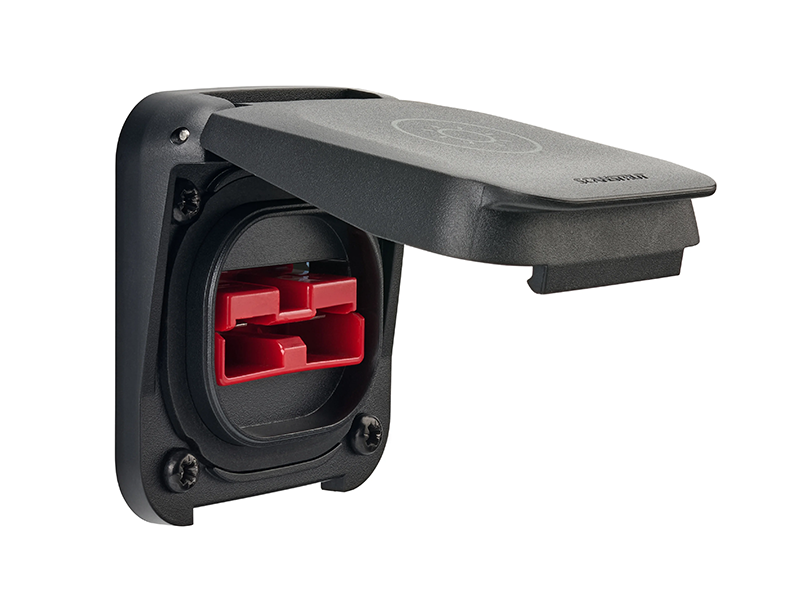

• Spring-loaded lid - premium-feel, click-shut lid with 90° hold-open feature keeps water off your plug while in use
• Rugged durability - marine-grade 316 stainless-steel hardware stands up to the harshest conditions
• UV resistant  - materials resist fading & degradation during prolonged sun exposure

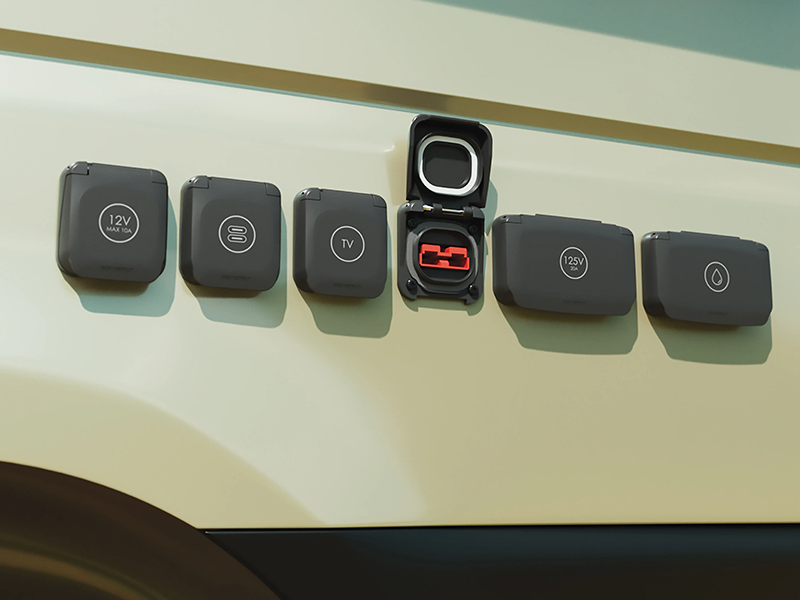

• Cohesive look - consistent design across every product in the Ventura Series
• Compact & uniform - low-profile socket fits tight panel spaces
• Connectivity - fast, easy connection to a matching red Anderson SB50 housing
• Easy installation - standard hole size and integrated gasket for fast, watertight mounting

Further information

Genuine Anderson terminals for use in this connector can be found here and are available for 6mm², 10mm² & 16mm² cable sizes (two terminals required per Anderson connector housing).

Genuine Anderson SB50 connector housings for connecting to this socket can be found here. Note: SB50 housings are genderless and can be connected together once terminals have been inserted and one housing is rotated through 180°. Housings are 'keyed', so only those of the same colour will connect together.

Specifications

• Connector type: Anderson SB50 - Red (will only connect to another red SB50 housing)
• Max. connector current: 50A
• Max. connector voltage: 600V DC
• Power delivery: 600W@12V | 1200W@24V | 2400W@48V
• Ingress protection rating: IP68, IP69K front only - lid closed
• Cable connection: Anderson SB50 terminals for 6mm², 10mm² or 16mm² cable (available separately)
• Overall dimensions of outlet (visible part): 60.3 (W) x 68.0 (H) x 16.0 (D) mm
• Connector depth behind mounting surface: 39mm
• Maximum height with lid open: 119mm
• Certification: CE, UKCA, ROHS
