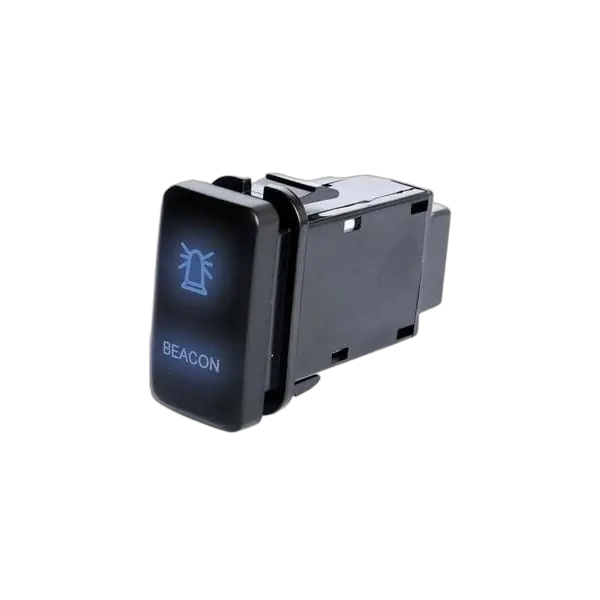

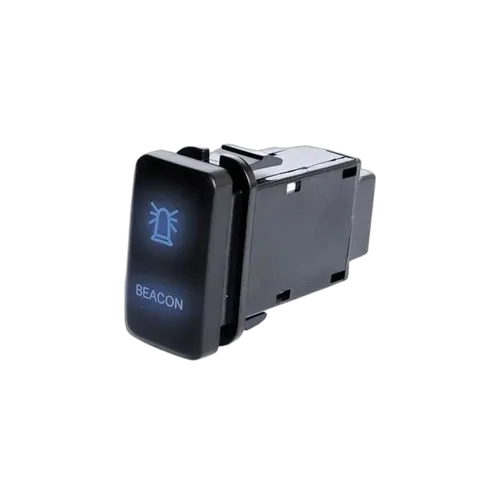

Direct fit, original equipment style driving light and beacon switches, designed to suit some of the more popular, late model 4WD’s in Australia today.

These switches present an ease of fitment; simply pop out the factory blanking plate and the switch will fit into place without need to cut, grind or otherwise modify the dashboard. All of the switches use the same four wire harness that can be wired into the vehicles dash light circuit allowing the switch to illuminate/dim with the rest of the instrument lights. The OE look and feel is further enhanced with the push on, push off operation that is used with most OE switches.

Specifications:

• Voltage: 12/24 Volts
• Range: 10 Amp @ 12 Volts
• Mounting Hole: 21mm x 37mm
• No. of Poles: 1
• No. of Positions: 2
• No. of Terminals: 5
• Function: OFF-ON-SPDT
• Display: Blue LED

To suit Toyota Hilux 2005-2014, Toyota Prado 120 Series 2002-2009, Toyota FJ Cruiser 2011-2013 & Toyota LandCruiser 100 Series 1998-2007
