Description
Features

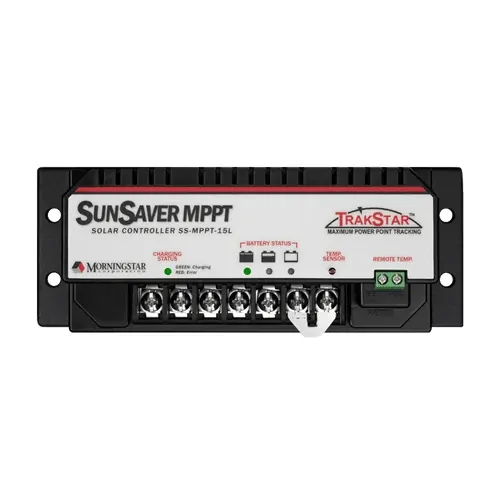

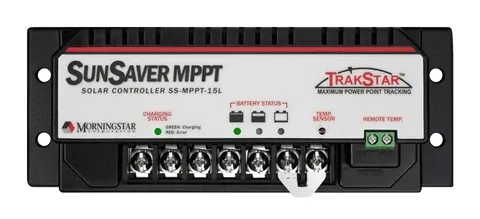

Morningstar SunSaver MPPT Controller. 15 amps / 12 or 24 volts.
The Morningstar SunSaver MPPT with TrakStar technology is an advanced maximum power point tracking controller for off-grid solar systems up to 400Wp.
- Use of high Voltage Modules – In addition to 12 volt crystalline modules, enables the use of high voltage and thin film modules for off-grid battery charging.
- Power Boost – Maximum power point tracking provides an increase of amps from the solar array into the battery.
- Converts 24V to 12V – Provides a means to use a 24V solar array to charge a 12V battery, reducing power losses in systems with a long cable run between the solar array and the battery.
- Automatic Lighting Control – Includes up to four programmable timer sequences for PV lighting applications.
Specifications
Model | SS -MPPT -15L |
Maximum Battery Current | 15 A |
Maximum Open Circuit Voltage | 75 V |
Maximum PV Input | 200Wp (12V Battery) |
Maximum PV Input | 400Wp (24V Battery) |
Ambient Operating Temperature | –40°C to +60°C |
Terminal | 16 mm |
Weight | 0.60 kg |
Dimensions | 16.8 x 5.5 x 7.0 cm |
Warranty | 5 years |
Note: Specifications subject to change without notice. |
Specifications
SKU | SR-SS-MPPT-15 |
---|---|
Barcode # | OEBC527682 |
Brand | Morningstar |
Shipping Weight | 0.6000kg |
Morningstar Sunsaver Mppt 15Amp Reg
QOH: 0
QTY: 0
QTY: 0
Availability:
Sold Out
Pay in 4 interest-free payments of $157.50
Make 4 payments of $157.50 over 8 weeks and get it now!
or interest free for up to 12 months with
Make 4 payments of $157.50 over 8 weeks and get it now!
