Features:
• Input Power: 12/24V via 50A Anderson Type Connector x 2
• Output x 6 via Rocker Switch with Blue ill Rated @ 12V/20A; 24V/10A
• DC Socket Output x 2 Rated @ 12V/20A; 24V/10A
• Engel Socket Output Rated @ 12V/20A; 24V/10A
• Dual USB Output x 2: QC3.0A; C-Type 4.0A • 12/24V Voltmeter with LED Display
• 6 Way Fuse Box Rated @ 32V/100A Max
• Internal Bus Bar x 2 (150A 32V DC Max)
• Internal Wiring Size: 10AWG & 14AWG
• C/W Fuses: 5A x 1, 15A x 3, 20A x 1, 30A x 2

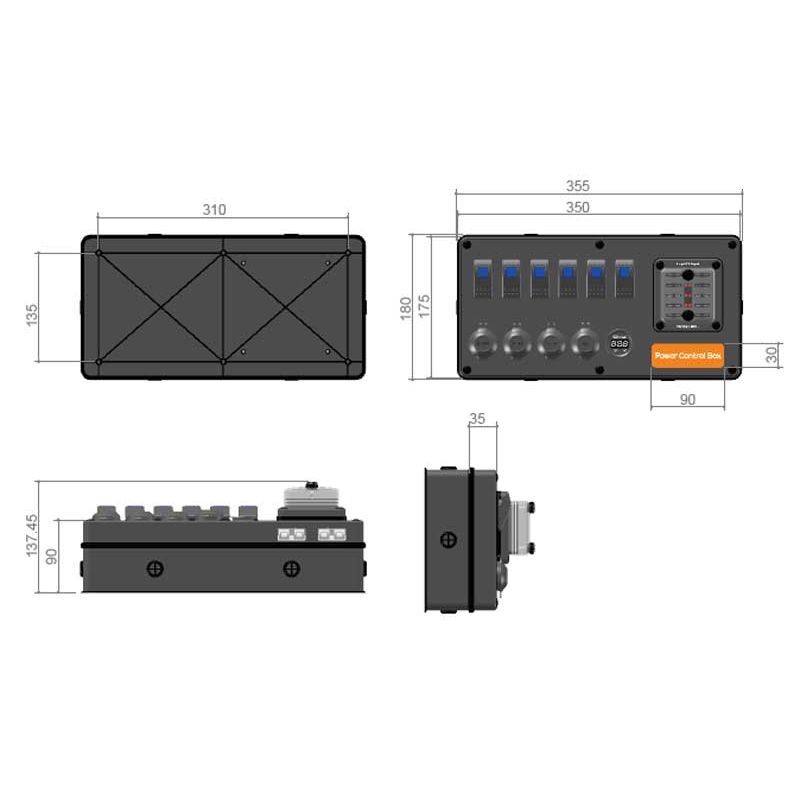

• Shell Material: Black Nylon • Dimensions: 355(L) x 180(W) x 138(H) mm
• Sticker Set & Mounting Screws Included • Applications: 4WD’s, Caravans, RV’s
| SKU | LV5184 |
|---|---|
| Barcode # | 9342828224048 |
| Brand | LV Automotive |
| Shipping Weight | 3.0000kg |
| Shipping Width | 0.360m |
| Shipping Height | 0.140m |
| Shipping Length | 0.190m |
| Shipping Cubic | 0.009576000m3 |
Download instructions to help you install, use and get the most out of your product.
