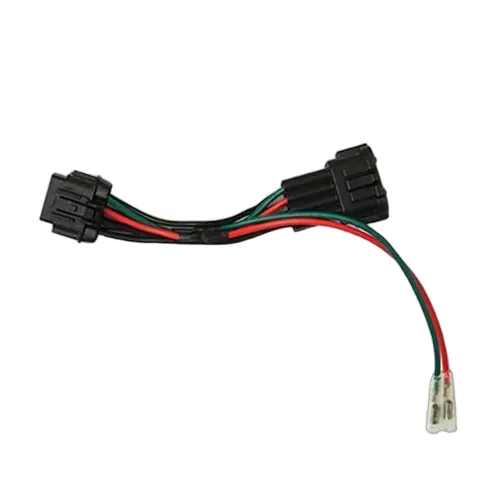

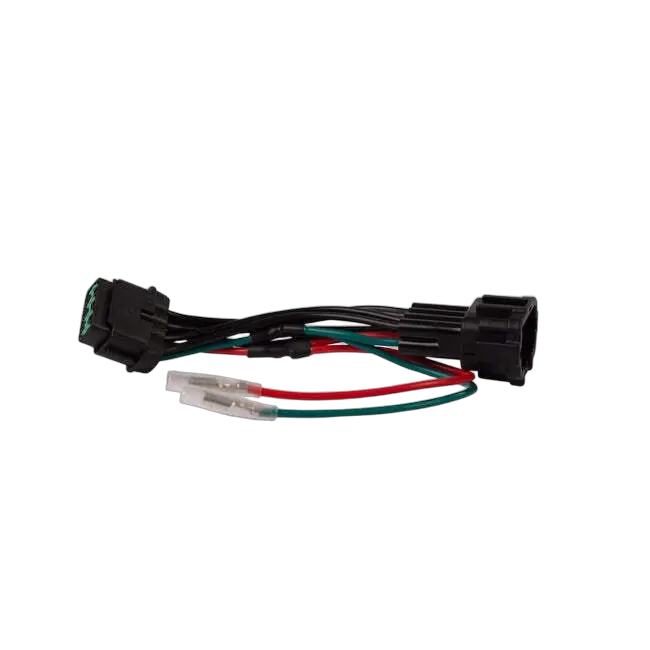

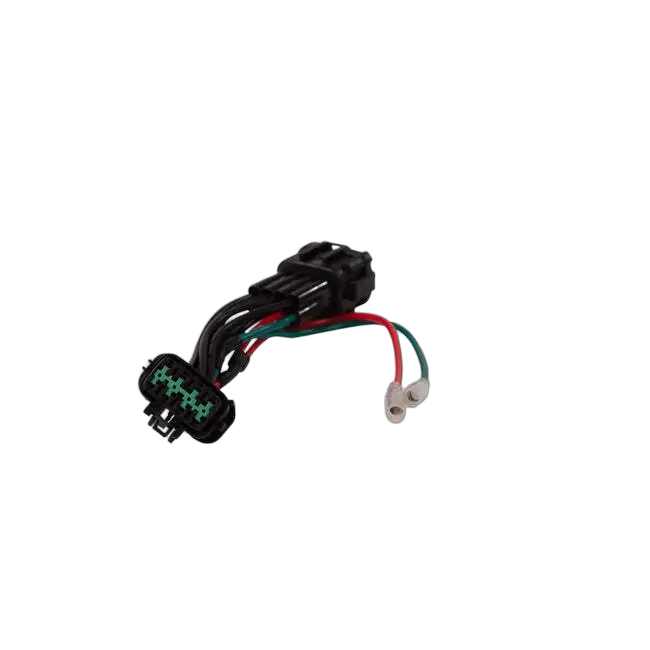

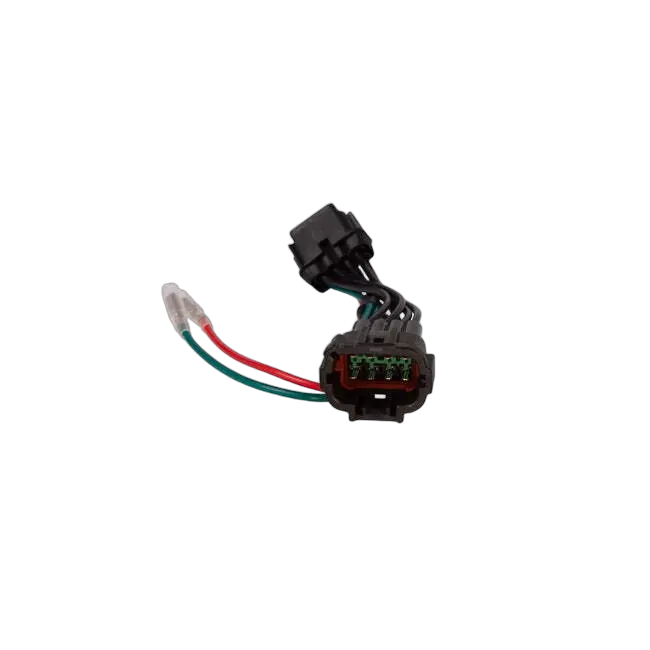

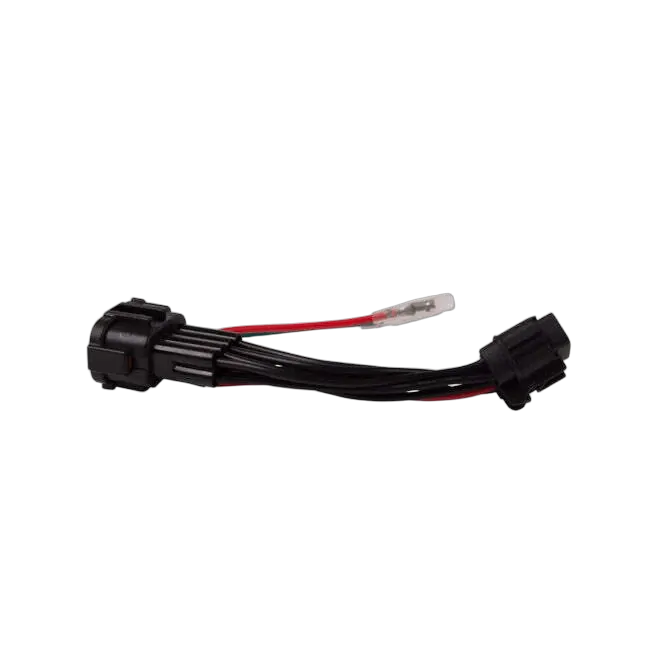

Headlight Patch Harness Suits Nissan Np300

It uses the OEM connection point on the back of the headlight assembly. You no longer need to put a hole in the dust cover or splice a wire into the OEM harness for auxiliary driving lights, simply:

• Remove the existing OEM 8 pin connector from the back of the headlight (left or right side) there is a locking tab that must be depressed while removing the connector
• Fit the corresponding new connector to the OEM connector that has just been removed
• Fit the remaining new connector to the original OEM connector affixed to the headlight assembly
• Then connect the corresponding connectors from anyone of our listed compatible wiring harnesses.

WIRING

The only compatible Lightforce Harnesses are:

• Venom and Genesis LED Harness (LFDLHTS/LFDLHTS2)
• HTX Hybrid Driving Light Harness (LFDLHDS)
• Striker LED Harness (STRIKERLEDHARN)
• Universal Driving Light Harness (LFDLHSS) - Available Soon.

All Patch Harnesses With Two Wires (Red/Green)
When used with Lightforce Driving Light Harnesses LFDLHDS, STRIKERLEDHARN and LFDLHSS:

• Connect the red and green wires from the patch harness to the red and green wires from the Lightforce Driving Light Harness.

When used with Lightforce Driving Light Harnesses LFDLHTS and LFDLHTS2 and you wish to operate the optional positioning light function:

• Connect the blue wire on the Driving Light Wiring Harness to a 12v low beam power source within the engine bay. Please refer to the Lightforce Driving Light Wiring Harness User Instructions for full details.

Patch Harness Wiring:

• Red - High beam operation
• Green - High beam operation.
• Note: Both red and green wires MUST be connected.

All Patch Harnesses With Three Wires (Red/Green/Blue)

When used with Lightforce Driving Light Harnesses LFDLHTS and LFDLHTS2:
Connect all three corresponding wire colours from the patch harness to the Lightforce Driving Light Wiring Harness.

Patch Harness Wiring:

• Red - High beam operation
• Green - High beam operation
• Blue - For the optional positioning light function (low beam 12v +).

Note: Both red and green wires MUST be connected.

When used with Lightforce Driving Light Harnesses STRIKERLEDHARN, LFDLHSS and LFDLHDS:

• Connect the red and green wires from the patch harness to the red and green wires from the Lightforce Driving Light Harness.

The remaining blue wire can be used for the switch illumination pickup (yellow wire on Driving Light Harness). If not required, please insulate and secure. Please refer to the Lightforce Driving Light Wiring Harness User Instructions for full details.

Note: The above options for functionality and integration is not applicable to Lightforce Driving Light Harness LFDLH or any Lightforce LED Bar Wiring Harness.
