Optimised for moderate power systems, M3 marine speakers are designed to produce powerful, smooth sound that is several steps beyond common marine speakers.
AMAZING FIDELITY AND AFFORDABILITY IN MARINE SETTINGS
OFFERED IN 2 SIZES AND 5 LOOKS TO FIT YOUR STYLE
MODELS AVAILABLE WITH BUILT-IN RGB LED LIGHTING
EXCEEDS INTERNATIONAL STANDARDS FOR SALT FOG AND UV EXPOSURE
2-YEAR WARRANTY
BUILT-IN RGB LED LIGHTING
Offered on sport models, multicolour LEDs produce a vibrant accent glow.
DMA-OPTIMISED WOOFERS
Proprietary motor, suspension and cone modeling systems are employed, resulting in reduced distortion, improved transient performance and stellar bass sound quality.
PURE SILK TWEETERS
The treated silk dome design is chosen for its lightness, damping properties and smooth response characteristics to deliver superior output capability with crystal-clear, high-frequency detail.
INTEGRATED TWEETER FILTERS
Each speaker includes a built-in second-order, high-pass tweeter filter with a solid-state protection circuit to minimise the possibility of tweeter failure.
POWER VERSATILITY
Designed to benefit from operation with quality amplification, M3 marine speakers are also suitable for use with standard marine head-unit power.
REAL MARINE DUTY
For long-term use, all models are built to withstand saltwater marine environments and deliver years of listening enjoyment.
SPECS
General |
|
| Sizes | 6.5"/7.7" |
|---|---|
| Colour | White Classic, White Sport or Grey Sport |
| Physical dimensions (Diameter) | 6.5" (Classic/Sport): 175 mm (6.90") 7.7": (Classic/Sport): 196 mm (7.70") |
| Physical dimensions (Depth) | 6.5" (Classic): 95 mm (3.75") 6.5" (Sport): 96 mm (3.79") 7.7": (Classic): 106 mm (4.19") 7.7": (Sport): 108 mm (4.27") |
| Speaker type | Coaxial |
| Continuous power handling (RMS) | 6.5": 60 W 7.7": 70 W |
| Sensitivity (SPL @ 1 W/1 m) | 6.5": 89.5 dB 7.7": 90.5 dB |
| Frequency response (+/- 3 dB) | 6.5": 55 Hz-25 kHz 7.7": 45Hz-25 kHz |
| Nominal impedance | 4 Ω |
| Recommended amplifier power (RMS) | 6.5": 20-120 W/Channel 7.7": 20-140 W/Channel |
| LED lighting | Yes - RGB (selected Sport models only) |
| LED supply voltage | 10-14.4 VDC |
| LED Load Current @ 14.4 VDC (max) | 108 mA |
| Cone material | Injection-molded, mica-filled polypropylene |
| Tweeter type | Silk dome |
| Tweeter size | 19 mm (0.75") |
| Warranty | 2 years |
Connections |
|
| Speaker connections | Spade Connectors |
|---|---|
| LED connection | Flying Lead with 4-conductor 22 AWG wire (selected Sport models only) |
Mounting Dimensions |
|
| Mounting depth clearance | 6.5" (Classic/Sport): 71 mm (2.78") 7.7": (Classic/Sport): 81 mm (3.17") |
|---|---|
| Frontal grille protrusion | 6.5" (Classic): 25 mm (0.97") 6.5" (Sport): 26 mm (1.01") 7.7" (Classic): 26 mm (1.02") 7.7" (Sport): 28 mm (1.10") |
| Mounting hole | 6.5": 127-133 mm (5"-5.25") 7.7": 59 mm (6.25") |
| Bolt hole circle | 6.5": 156 mm (6.125") 7.7": 176 mm (6.92") |
Additional |
|
| Additional | The enclosure recommendations listed above are external dimensions which assume the use of 19 mm (0.75) thick material. If you are using 16 mm (0.625) thick material, subtract 6.5 mm (0.25) from each dimension. Do not use any material with a thickness of less than 16 mm (0.625) as this may compromise the rigidity of the enclosure. All enclosure volumes listed above are net internal volumes. Driver displacement, port displacement and brace displacement must be added to obtain the final gross internal volume. All enclosure dimensions above have already taken this into account. When using multiples in a common enclosure you will need to recalculate the enclosure and port dimensions. For assistance please contact your authorised JL Audio dealer or JL Audio Technical Support. We recommend the use of this in a bi-amplified system using high-quality satellites and a high-quality amplifier. We do not recommend the use of this with a passive crossover (coil), as this type of device will adversely affect performance. |
|---|---|
IN THE BOX
- Two marine coaxial loudspeakers
- Two grilles (attached to speaker)
- Twelve stainless steel mounting screws
- Twelve stainless steel washers
- Mounting template
- Logo badges (sports models only)
COMPATIBLE DEVICES
Fusion Apollo™ MS-RA800 marine stereo
JL Audio M3 Marine Subwoofer
JL Audio® MediaMaster® 55 stereo
JL Audio® MHD Marine Amplifier
JL Audio® MVi Marine Amplifier
JL Audio® MX Marine and Powersports Amplifiers
JL Audio Stealthbox® Enclosed Subwoofer for Chevrolet Camaro (SB-GM-CAM6G/12W6v3)
JL Audio Stealthbox® Enclosed Subwoofer for Ford F-150 SuperCrew & 2017-Up SuperDuty Crew Cab (SB-F-150-SPRCRW/13TW5/BK)
JL Audio Stealthbox® Enclosed Subwoofer for SuperDuty Crew Cab
JL Audio Stealthbox® Enclosed Subwoofer for Toyota Tundra CrewMax (SB-T-TUNDCMAX/13TW5)
JL Audio® XDM Car and Marine Amplifier
| SKU | 010-03061-00 |
|---|---|
| Barcode # | 0699440935128 |
| Brand | JL Audio |
| Shipping Weight | 2.8200kg |

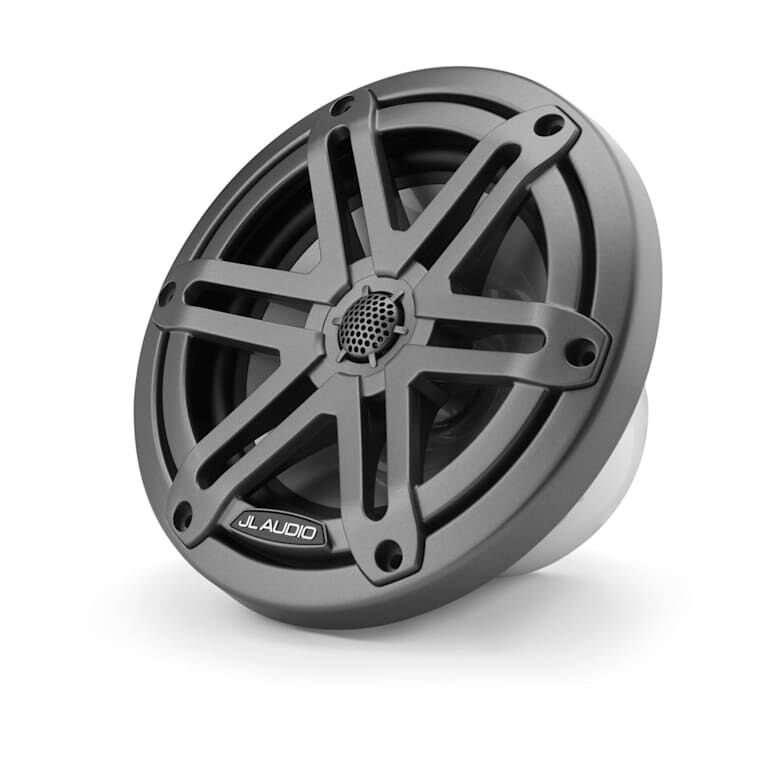

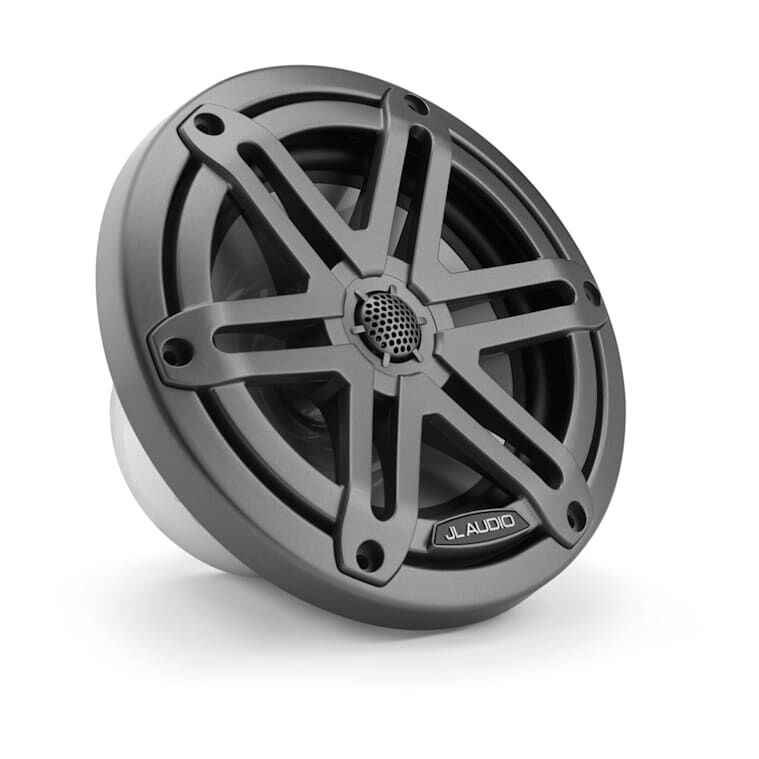

JL Audio M3 Marine Speakers, 6.5" with Grey sport grille
