OVERVIEW
CLEAR AUDIO, CLEAN AESTHETICS – ALL CLASS
The Fusion FM Series speakers are engineered to deliver quality acoustics to your boat and have a sleek and minimalistic aesthetic to match modern boat design trends.
Innovative flush-mount design for a sleek and minimalistic finish.
Low profile, near flat installation with a mounting profile of just 2.5 mm.
The aluminum dome tweeter provides smooth upper frequency response and increased efficiency.
With an increase in real power, the voice coil provides a high-quality audio experience.
The speakers are available in 6.5-inch and 7.7-inch designs with a round or square form factor.
Engineered to last season after season, the speakers include a 3-year warranty.
DESIGNED AND ENGINEERED TO TRUE-MARINE™ STANDARDS
Built on the True-Marine design philosophy from Fusion, the FM Series speakers have an IP65 rating for protection against dust and water ingress and have been tested to a high level of protection against salt fog, temperature, vibration and UV.
DESIGNED TO COMPLY WITH ISO12216
Tested to international standards for pressure and water ingress, the FM Series speakers are designed and built for superior quality and robustness.
QUALITY MATERIALS AND ACOUSTIC ENGINEERING
The FM Series speakers incorporate high-quality materials and marine-specific design elements. This not only ensures their enhanced aesthetics, but also their capability to reproduce high-quality audio while out on the water.
INJECTION-MOULDED POLYPROPYLENE CONE
By using a water-resistant IMPP cone, the speaker is more robust, which allows for clean, clear audio reproduction.
ALUMINUM DOME TWEETER
The aluminum dome tweeter provides smooth upper frequency response and increased efficiency, which delivers crystal clear music reproduction.
OVERHUNG VOICE COIL
The overhung design reduces distortion and increases power and efficiency to deliver a truly high-quality audio experience.
FULLY SEALED CROSSOVER COMPONENTS
Fully sealed crossover components provide increased protection from the harsh marine environment. This delivers improved frequency response at the crossover point and a detailed audio spectrum for a new level of acoustic performance.
OPEN BASKET CONSTRUCTION
The optimised open back design allows for extended power handling and versatile mounting options.

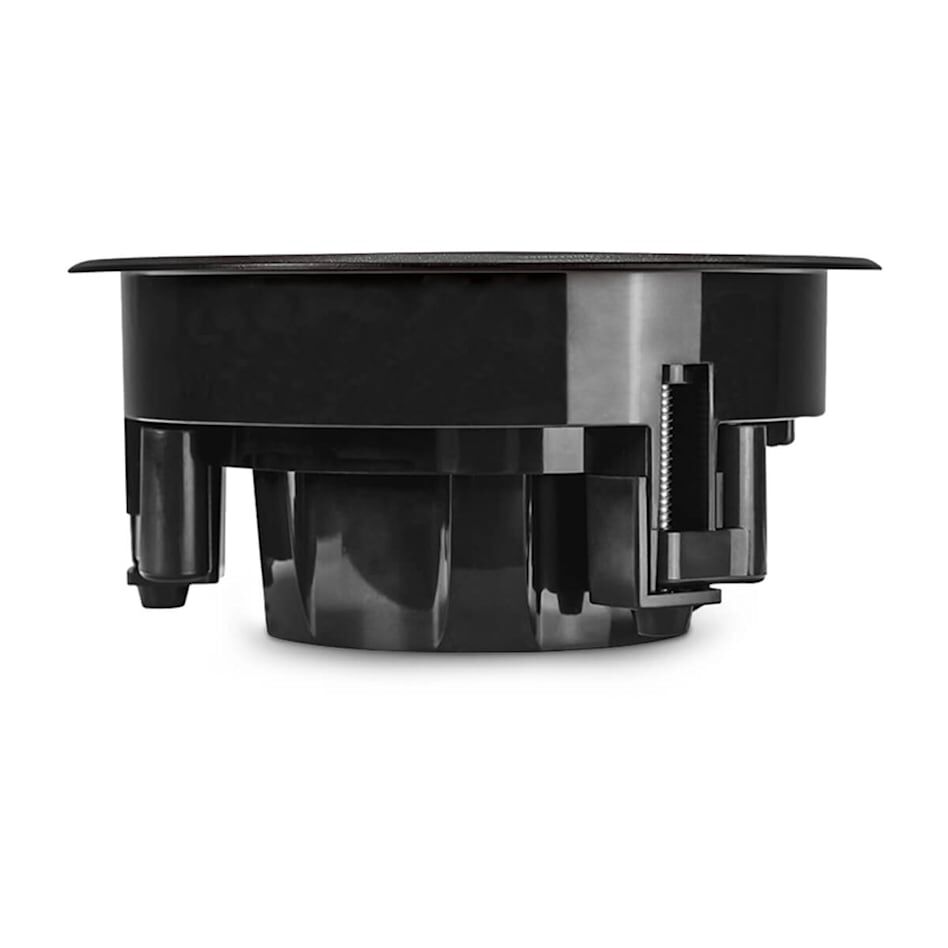

INNOVATIVE FLUSH MOUNT DESIGN
The FM Series speakers are designed to be flush-mounted with a mounting profile no thicker than 2.5 mm for a visually appealing, near flat finish. The sleek and minimalistic aesthetic allows the FM Series speakers to blend in seamlessly with your boat.

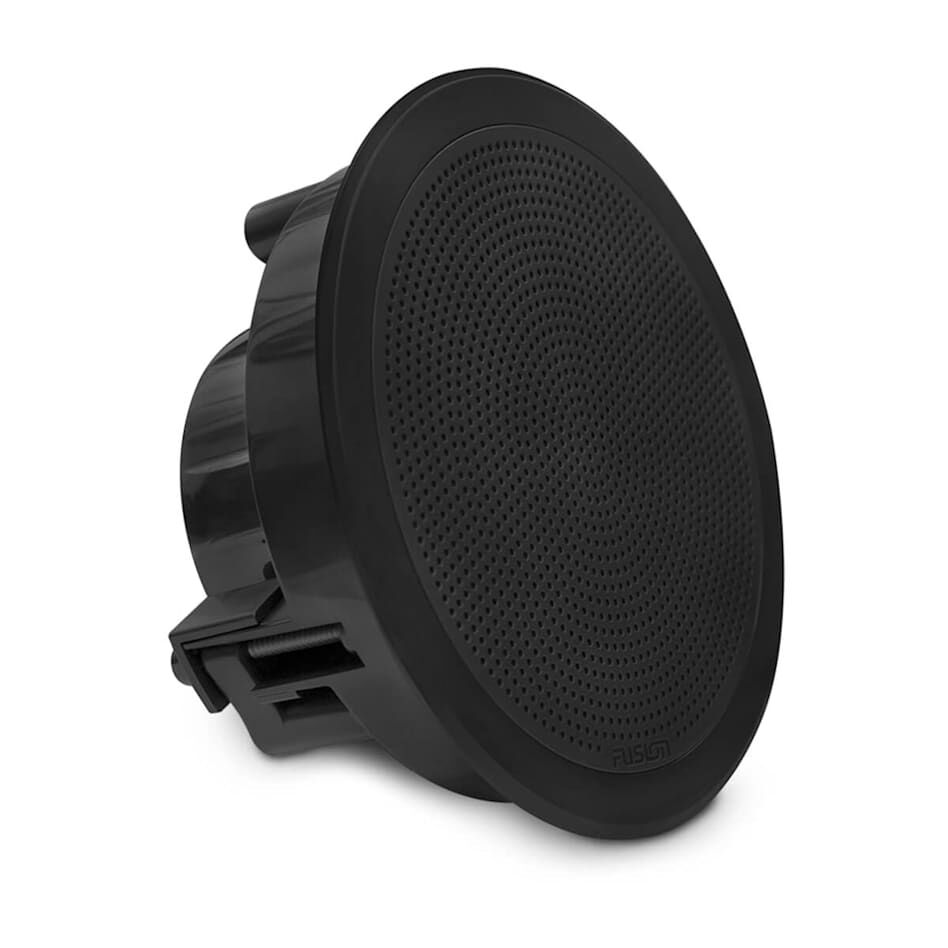

NON-INTRUSIVE MOUNTING SYSTEM
The FM Series speakers feature an intelligent mounting system. Simply place the speaker into the cutout, tighten the screws and the speaker legs will tighten against the panel, keeping it in place without needing to create any screw holes in your boat.
SPECS
General
| Sizes | 6.5"/7.7" |
|---|---|
| Colour | Round white or round black or square white or square black |
| Physical dimensions (Diameter) | 6.5":153 mm (6.02") 7.7": 181 mm (7.13") |
| Physical dimensions (Depth) | 6.5": 69.6 mm (2.74") 7.7": 82.9 mm (3.26") |
| Weight | 6.5" Round: 0.8 kg (1.76 lbs) 6.5" Square: 0.85 kg (1.87 lbs) 7.7" Round: 1.2 kg (2.65 lbs) 7.7" Square: 1.3 kg (2.87 lbs) |
| Water and dust rating | IP65 |
| Speaker type | Coaxial |
| Continuous power handling (RMS) | 6.5": 30 W 7.7": 50 W |
| Sensitivity (SPL @ 1 W/1 m) | 6.5": 87 dB 7.7": 91 dB |
| Frequency response (+/- 3 dB) | 6.5": 100 Hz-18 kHz 7.7": 80 Hz-18 kHz |
| Nominal impedance | 4 Ω |
| Operating temperature range | 0° to 50° C (32° to 122° F) |
| Cone material | 6.5": Polypropylene cone with rubber surround 7.7": Polypropylene cone with cloth surround |
| Tweeter type | Aluminum dome |
| Warranty | 3 years |
Electrical features
| Compass safe distance | 6.5": 245 cm (96.5") 7.7": 290 cm (114.2") |
|---|
Connections
| Speaker connections | Spade Connectors |
|---|
Mounting Dimensions
| Mounting diameter clearance | 6.5": 138 mm (5.43") 7.7": 165 mm (6.5") |
|---|---|
| Mounting depth clearance | 6.5": 70 mm (2.76") 7.7": 83 mm (3.27") |
| Frontal grille protrusion | 6.5": 3 mm (0.12") 7.7": 3 mm (0.12") |
IN THE BOX

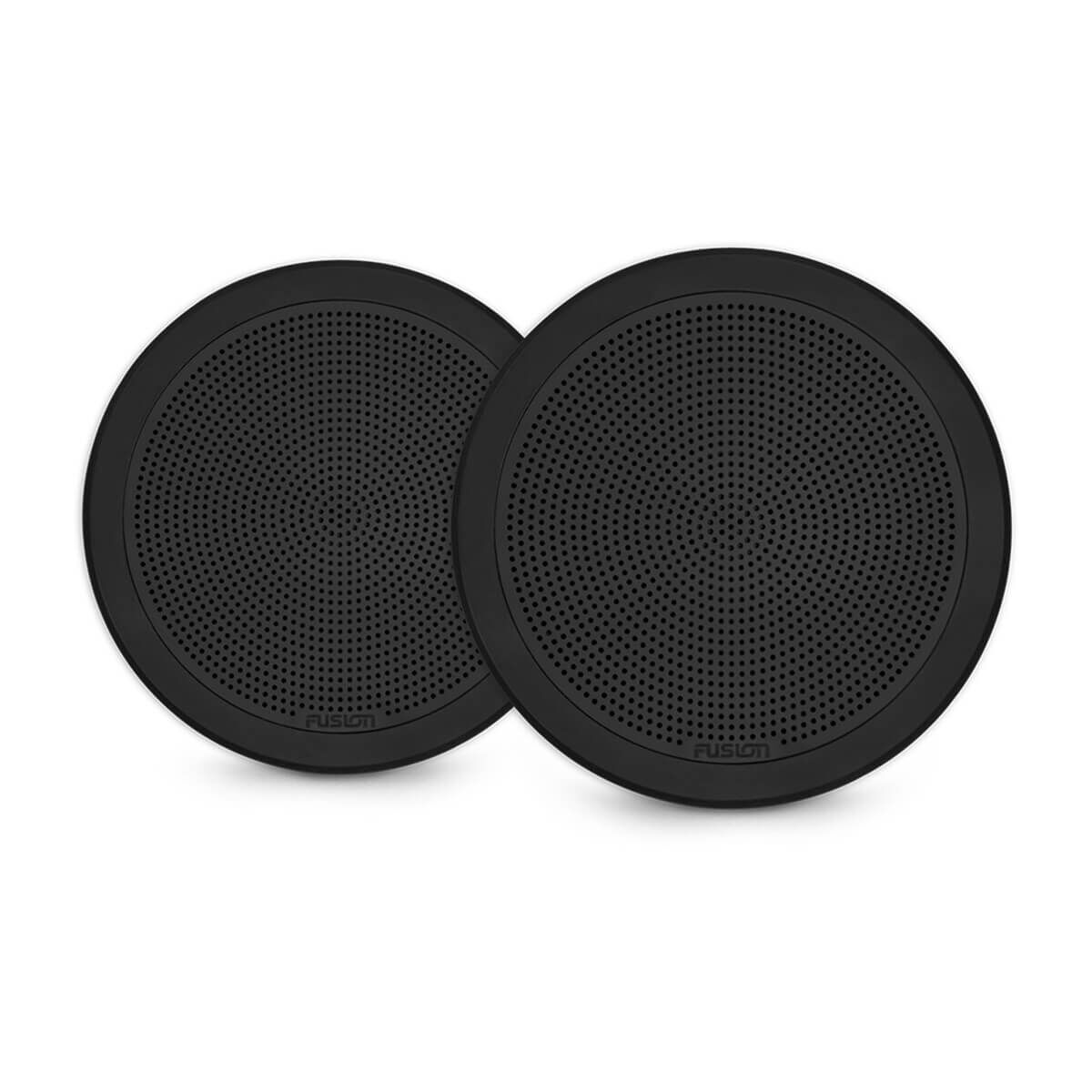

- One pair of speakers (based on what you select)
- Documentation
COMPATIBLE DEVICES
Apollo RA670
Apollo RA770
Apollo WB670
Fusion® Apollo™ SRX400
Fusion BB100 Black Box
Fusion® MS-RA60 Marine Stereo
Fusion RA210 Marine Stereo
Fusion® RA70 Series Marine Stereos
Fusion® Signature Series Marine Amplifiers
- Gear suits 138 mm round cut-outs
- Near-flat 3 mm grille profile
- IP65 and ISO12216 marine rated
- 30 W RMS, 87 dB sensitivity
- Polypropylene cone with rubber surround
- Aluminium dome tweeter and sealed crossover
- Brand: Fusion
- Series: FM Series
- Application: Marine flush-mount speakers
- Shape: Round
- Size: 6.5"
- Colour: Black
- Speaker type: Coaxial
- Continuous power handling (RMS): 30 W (6.5")
- Peak power handling: 120 W (6.5" model per title)
- Sensitivity (1 W/1 m): 87 dB (6.5")
- Frequency response (+/- 3 dB): 100 Hz – 18 kHz (6.5")
- Nominal impedance: 4 Ω
- Water and dust rating: IP65
- Design standard: True-Marine
- Compliance: ISO12216 pressure and water ingress
- Cone material: Injection-moulded polypropylene with rubber surround (6.5")
- Tweeter type: Aluminium dome
- Voice coil type: Overhung design
- Crossover: Fully sealed components
- Basket: Open-back construction
- Operating temperature range: 0° to 50° C (32° to 122° F)
- Physical diameter: 153 mm (6.02") (6.5" speaker)
- Physical depth: 69.6 mm (2.74") (6.5" speaker)
- Mounting diameter clearance: 138 mm (5.43") (6.5" speaker)
- Mounting depth clearance: 70 mm (2.76") (6.5" speaker)
- Frontal grille protrusion: 3 mm (0.12") (6.5" speaker)
- Weight: 0.8 kg (1.76 lb) per 6.5" round speaker
- Water ingress protection tests: Salt fog, temperature, vibration and UV exposure
- Electrical compass safe distance: 245 cm (96.5") (6.5")
- Speaker connections: Spade connectors
- Warranty: 3 years
- Compatible stereos: Apollo RA670, Apollo RA770, Apollo WB670, Fusion Apollo SRX400, Fusion BB100 Black Box, Fusion MS-RA60 Marine Stereo, Fusion RA210 Marine Stereo, Fusion RA70 Series Marine Stereos, Fusion Signature Series Marine Amplifiers
- One pair of 6.5" round black Fusion FM Series flush-mount marine speakers
- Documentation
| SKU | 010-02299-01 |
|---|---|
| Barcode # | 0753759236632 |
| Brand | Fusion |
| Shipping Weight | 2.1800kg |
