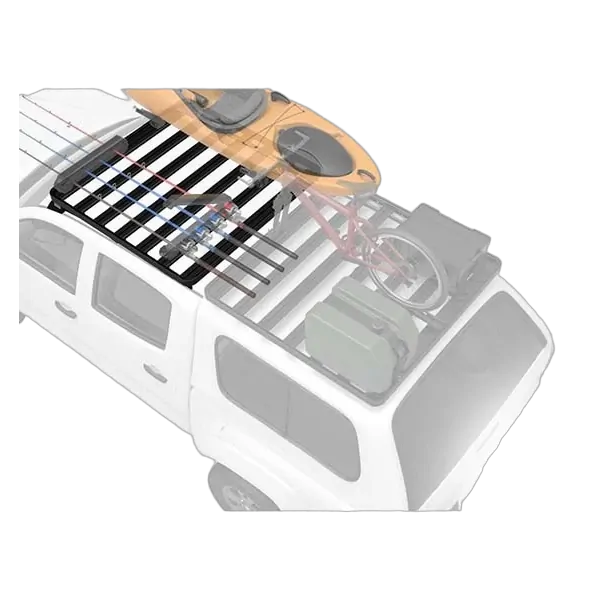

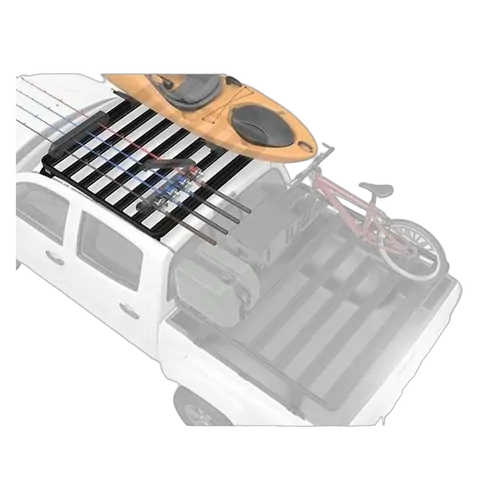

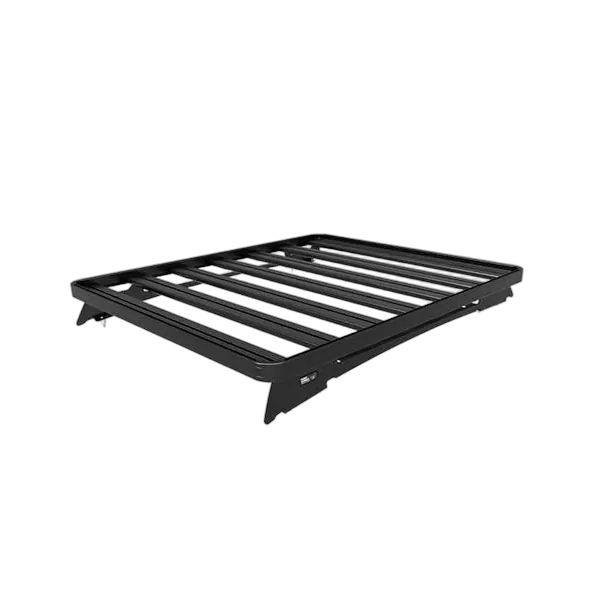

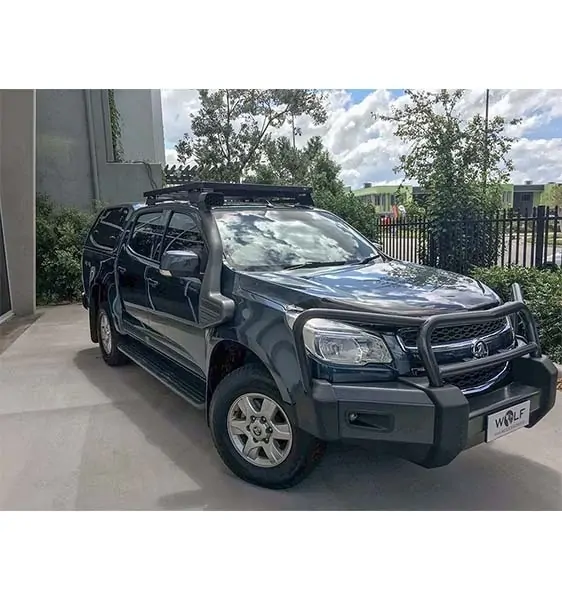

This 1165mm/45.9” long full-size Slimline II cargo roof rack kit contains the Slimline II Tray, Wind Deflector and 2 Foot Rails to mount the Slimline II Tray to your 2012+ For Holden Colorado/GMC Canyon Double Cab. It easily installs using the existing factory mounting points. Drilling is model dependent.

All Front Runner Rack Kits contain installation instructions as well as all the components needed to mount the Slimline II Tray to your vehicle. The vehicle specific foot rails have openings for storing compatible gear under the rack such as Front Runner tables.

These Foot Rails contain 1 opening to access a Front Runner under rack mount table (1 smaller prep table or 1 larger camp size table).

All Front Runner Racks are backed by a Limited Lifetime Warranty*

KRHC001T - For Holden Colorado/GMC Canyon DC (2012-Current) Slimline II Roof Rack Kit - by Front Runner

Consisting of:

1 x FAIK001 - Isuzu D-Max Foot Rails - by Front Runner
1 x RRSTA07 - Slimline II Tray - 1165mm(W) X 1358mm(L) - by Front Runner

Material used:
Black epoxy powder-coated T6 aluminium
3CR12 Stainless Steel

Approximate Installed Weight 24kg (52lbs)

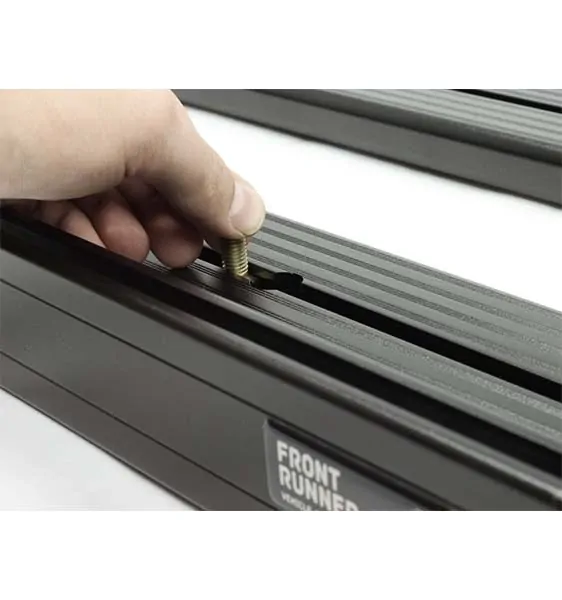

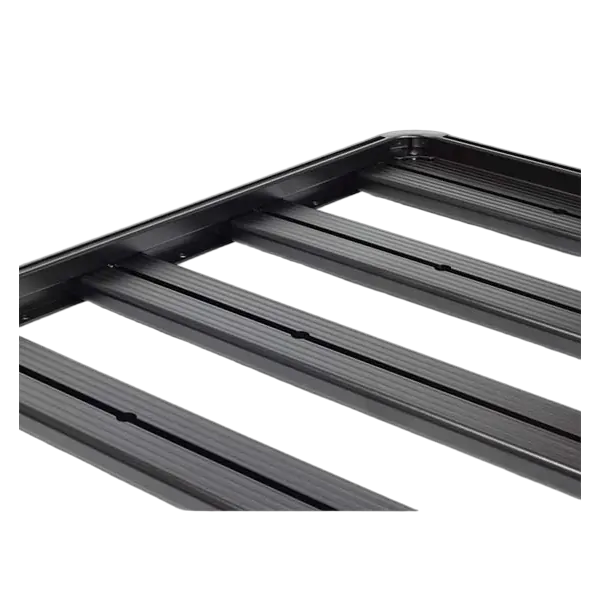

The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.

To determine the approximate height from your vehicle’s roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/ 2") to the height of the Foot, Grab-on Foot or Strap-On Foot listed above.

If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/ 2") to the height of the Legs to determine the height of the rack from your vehicle’s rain gutters.

If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/ 2") to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicles roof.

Shipping Dimensions:
Width 630mm (25")
Length 1640mm (65")
Height 160mm (6")


Shipping Weight:
Weight 27.5kg (60.4lbs)

SKU KRHC001T
Barcode # 6009542239101
Brand Front Runner Outfitters
Shipping Weight 27.4700kg
Shipping Width 0.160m
Shipping Height 0.630m
Shipping Length 1.640m
SKU: KRHC001T

Holden Colorado/GMC Canyon DC (2012+) SRack Kit

QOH: 0
QTY: 999

Sale price
$1,635.00
Pay in 4 interest-free payments of $408.75 PayPal Checkout

More info.

Make 4 payments of $408.75 over 8 weeks and get it now!

or interest free for up to 12 months with zipMoney
Make 4 payments of $408.75 over 8 weeks and get it now! Afterpay
This 1165mm long, full-size Slimline II cargo roof rack kit by Front Runner contains the Slimline II tray, wind deflector and 2 foot rails to mount the Slimline II tray to your 2012+ Holden Colorado/GMC Canyon double cab.

Calculate Shipping

Available Rates

Standard Free Shipping
FREE
Standard Free Shipping + Shipping Insurance
$9.50



This 1165mm/45.9” long full-size Slimline II cargo roof rack kit contains the Slimline II Tray, Wind Deflector and 2 Foot Rails to mount the Slimline II Tray to your 2012+ For Holden Colorado/GMC Canyon Double Cab. It easily installs using the existing factory mounting points. Drilling is model dependent.

All Front Runner Rack Kits contain installation instructions as well as all the components needed to mount the Slimline II Tray to your vehicle. The vehicle specific foot rails have openings for storing compatible gear under the rack such as Front Runner tables.

These Foot Rails contain 1 opening to access a Front Runner under rack mount table (1 smaller prep table or 1 larger camp size table).

All Front Runner Racks are backed by a Limited Lifetime Warranty*

KRHC001T - For Holden Colorado/GMC Canyon DC (2012-Current) Slimline II Roof Rack Kit - by Front Runner

Consisting of:

1 x FAIK001 - Isuzu D-Max Foot Rails - by Front Runner
1 x RRSTA07 - Slimline II Tray - 1165mm(W) X 1358mm(L) - by Front Runner

Material used:
Black epoxy powder-coated T6 aluminium
3CR12 Stainless Steel

Approximate Installed Weight 24kg (52lbs)

The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.

To determine the approximate height from your vehicle’s roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/ 2") to the height of the Foot, Grab-on Foot or Strap-On Foot listed above.

If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/ 2") to the height of the Legs to determine the height of the rack from your vehicle’s rain gutters.

If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/ 2") to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicles roof.

Shipping Dimensions:
Width 630mm (25")
Length 1640mm (65")
Height 160mm (6")


Shipping Weight:
Weight 27.5kg (60.4lbs)

SKU KRHC001T
Barcode # 6009542239101
Brand Front Runner Outfitters
Shipping Weight 27.4700kg
Shipping Width 0.160m
Shipping Height 0.630m
Shipping Length 1.640m
