Features

  • Stainless steel studs, nuts and washers for optimal corrosion resistance
  • Tin plated high purity copper busses provide maximum conductivity, reducing heat and improving efficiency
  • Special fiber reinforced base material offers excellent high temperature properties, good chemical resistance and high strength
  • Unique grid optimized footprints allow space saving arrangements of multiple products
  • Common interconnection heights for easy combining of multiple products using link plates
  • Robust transparent covers with breakouts to allow wire access from any direction
  • Smart terminal design allows dual mirrored cable lug connections
  • Easy in-system connection access due to top locked covers

Specifications

Model Part No. Grid size Maximum Current1) Max. Voltage Connection stud size
DCM 5xM8 Busbar DCM-5075160 1 x 3 600A 50V M8
DCM 5xM10 Busbar DCM-5075180 1 x 3 600A 50V M10

1) Higher voltages may require additional safety measures

SKU DCM-5075160
Barcode # OEBC527653
Brand Enerdrive
Shipping Weight 0.5500kg

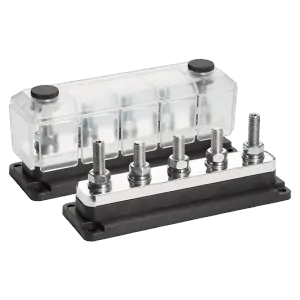

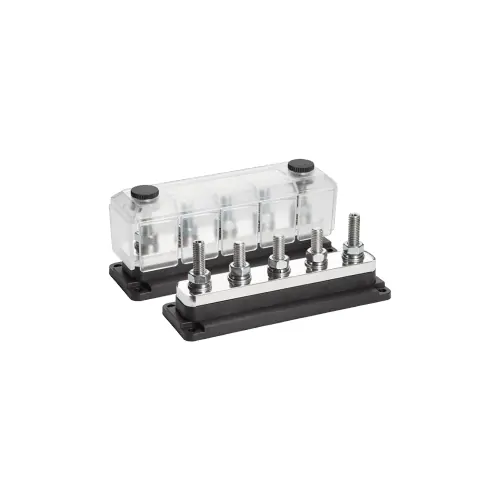

Enerdrive 5 Stud Busbar - M8

SKU: DCM-5075160
Sale price
$155.99 MATES’ RATE
Unlock Mates'Rate and Save. Login or Join Free
REG $168.00
Earn 1,550 GEAR'd Points
Ships in 7 days (Christmas delays possible)
Sale price
$168.00 REG
$155.99 MATES’ RATE
PayPal Checkout
4 payments of $42.00

afterpay More info.

Make 4 payments of $42.00 over 8 weeks and get it now!

zipMoney
From $10 / week
Afterpay
4 payments of $42.00
Humm

Calculate Shipping

Features

  • Stainless steel studs, nuts and washers for optimal corrosion resistance
  • Tin plated high purity copper busses provide maximum conductivity, reducing heat and improving efficiency
  • Special fiber reinforced base material offers excellent high temperature properties, good chemical resistance and high strength
  • Unique grid optimized footprints allow space saving arrangements of multiple products
  • Common interconnection heights for easy combining of multiple products using link plates
  • Robust transparent covers with breakouts to allow wire access from any direction
  • Smart terminal design allows dual mirrored cable lug connections
  • Easy in-system connection access due to top locked covers

Specifications

Model Part No. Grid size Maximum Current1) Max. Voltage Connection stud size
DCM 5xM8 Busbar DCM-5075160 1 x 3 600A 50V M8
DCM 5xM10 Busbar DCM-5075180 1 x 3 600A 50V M10

1) Higher voltages may require additional safety measures

SKU DCM-5075160
Barcode # OEBC527653
Brand Enerdrive
Shipping Weight 0.5500kg
