Description
- Busbars are used to consolidate multiple wires or feed multiple circuits
- Insert molded stainless steel studs eliminate need for securing nut and allow high torquing for excellent electrical contact
- Raised bus provides easy access to multiple wires on a single stud
- UL 94-V0 rated base material resists high heat
- Recessed mounting holes eliminate accidental shorts to aluminum and steel mounting surfaces
| Specifications | |
|---|---|
| Maximum Voltage | 300V AC 48V DC |
| Number of Terminal Studs | 4 |
| Terminal Type | 5/16"-18 Stud |
Continuous Rating  |
250A |
| Base Material | UL 94-V0 Rated, Glass Reinforced Thermoplastics |
| Bus Material | Tin-Plated Copper CDA 110 / UNS 11000 |
| Recommended Stud Torque | 132 in-lb (14.91 N·m) |
| Weight | 0.75lb (0.34 kg) |
| Weight | 0.80lb (0.36 kg) |
Features
- 250A bus suits serious setups
- Four 5/16" studs share power cleanly
- Tin-plated copper bar handles current well
- Glass reinforced base shrugs off heat
- Stainless hardware stands up to corrosion
- Recessed mounts help avoid stray shorts
Specifications
- Maximum voltage: 300V AC / 48V DC
- Continuous current rating: 250A
- Number of terminal studs: 4
- Terminal type: 5/16"-18 stud
- Bus material: tin-plated copper CDA 110 / UNS 11000
- Base material: UL 94-V0 rated glass reinforced thermoplastic
- Recommended stud torque: 132 in-lb (14.91 N·m)
- Weight: 0.75 lb (0.34 kg)
- Alternative listed weight: 0.80 lb (0.36 kg)
- Insert-moulded stainless steel studs
- Raised bus for access to multiple wires
- Recessed mounting holes to reduce accidental shorts

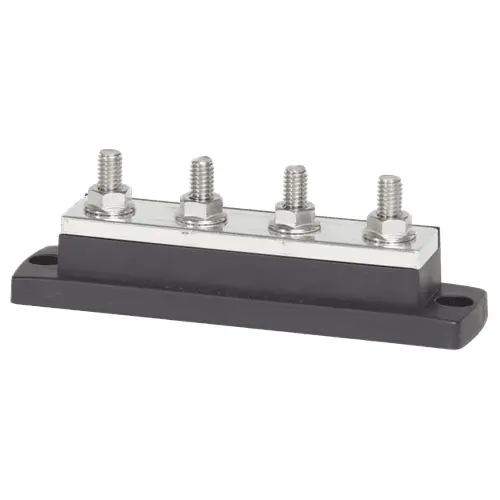

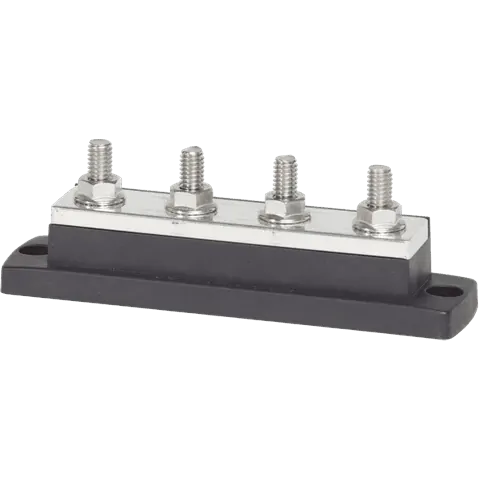

1 x Blue Sea Systems busbar 250A
4 x 5/16"-18 stainless steel terminal studs
4 x stainless steel nuts
4 x stainless steel washers
Integrated UL 94-V0 rated glass reinforced thermoplastic base
| SKU | BS-2127 |
|---|---|
| Barcode # | OEBC527472 |
| Brand | Blue Sea Systems |
| Shipping Weight | 0.3000kg |
