3854 Series

3854 Series

Features / Specifications

  • Diffused Tail Function
  • Sequential Indicator
  • ADR Approved
  • IP67 100% Waterproof
  • Voltage Range 12-24 Volt
  • 387mm x 105mm x 30.5mm
  • 5 Year Warranty


Download Data Sheet

Fitting Instructions

Separate the base plate from the lamp and horizontally mount it onto a flat surface using the screws provided, ensuring the correct side is facing outwards. Run the wire through the hole in the fixing surface, then re-align the lamp and clip it into the mounting base using light pressure to ensure it sits in place correctly. Please refer to ADR 13/00 for mounting instructions.

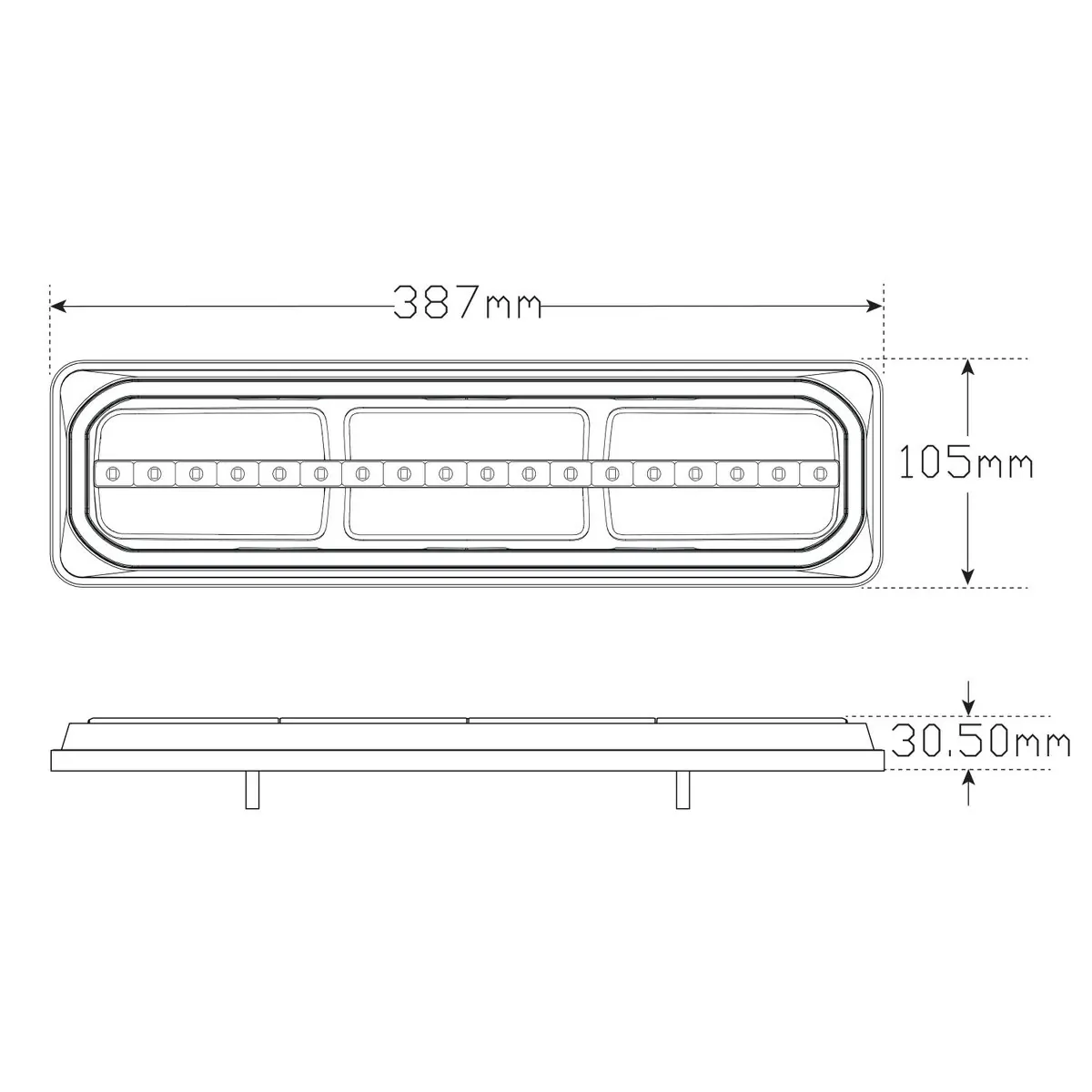

Technical Drawings



More details


SKU 38541ARWMLCSB
Barcode # 9335962108985
Brand LED Autolamps
Shipping Weight 0.6000kg
Shipping Width 0.145m
Shipping Height 0.055m
Shipping Length 0.524m
SKU: 38541ARWMLCSB

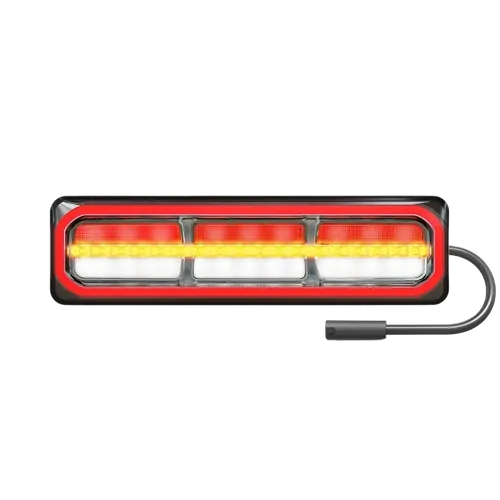

Combination Lamps 38541ARWMLCSB (Left)

QOH: 0
QTY: 999
Sale price
$179.99

Don't Pay RRP:$213.51

Earn 1,790 Outback Rewards Points

Sale price
$179.99

Don't Pay RRP:$213.51

Pay in 4 interest-free payments of $45.00 PayPal Checkout

More info.

Make 4 payments of $45.00 over 8 weeks and get it now!

or interest free for up to 12 months with zipMoney
Make 4 payments of $45.00 over 8 weeks and get it now! Afterpay
Lhs Stop/Tail/Indicator/Reverse, White Diffused Tail With Sequential Indicator, Lhs Plug, Multivolt, 385 X 104 X X31Mm, Adr, White Box
