3854 Series
3854 Series
Features / Specifications
|

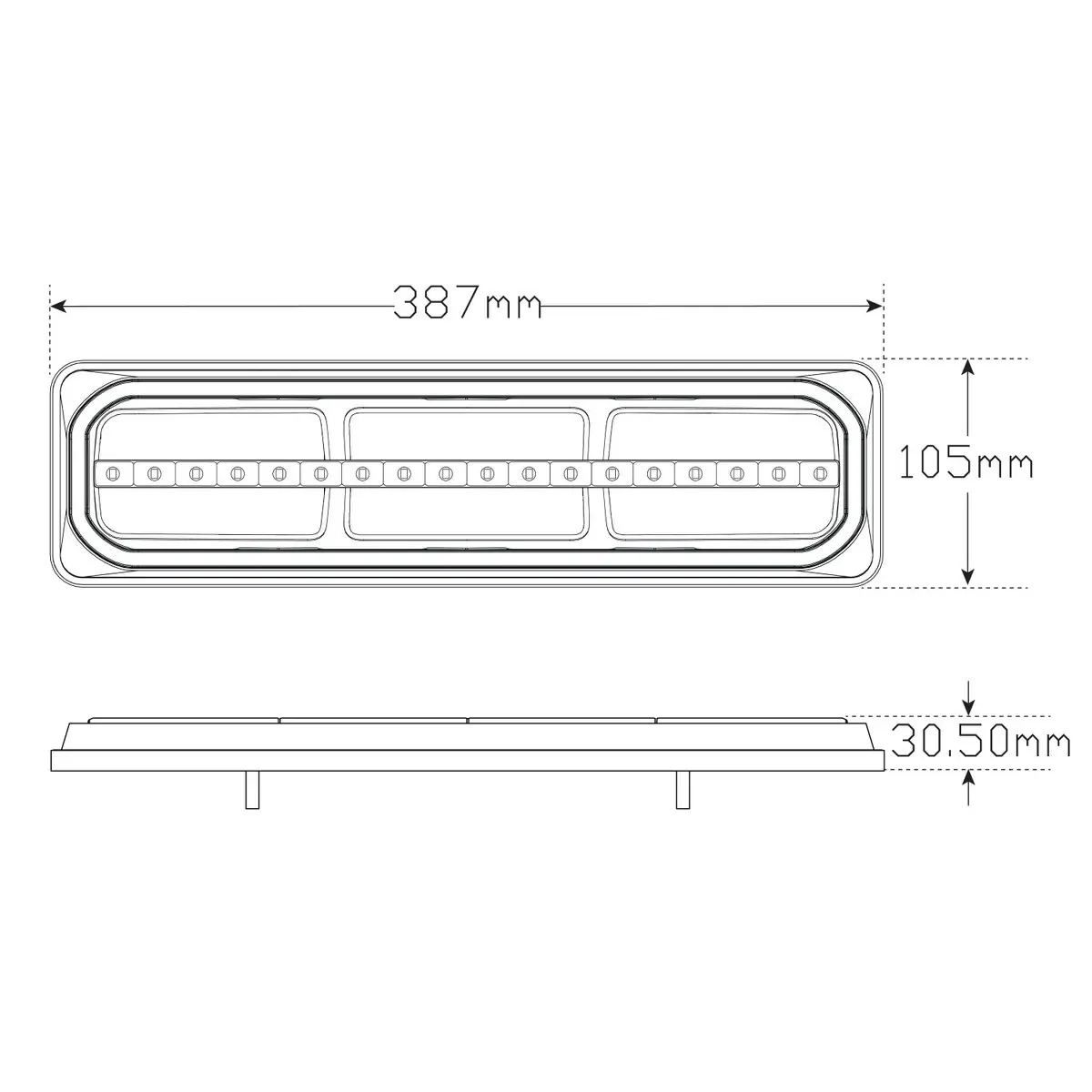

Fitting InstructionsSeparate the base plate from the lamp and horizontally mount it onto a flat surface using the screws provided, ensuring the correct side is facing outwards. Run the wire through the hole in the fixing surface, then re-align the lamp and clip it into the mounting base using light pressure to ensure it sits in place correctly. Please refer to ADR 13/00 for mounting instructions. Technical Drawings
|
- Multivolt gear for mixed vehicle fleets
- Diffused tail ring keeps you seen
- Sequential indicator helps other drivers judge
- IP67 housing ready for mud and spray
- ADR approved kit for roadworthy setups
- Series: LED Autolamps 3854 Series
- Part number: 3854ARWM-2
- Lamp functions: Stop Tail Indicator
- Tail function type: Diffused tail
- Indicator type: Sequential indicator
- Voltage range: 12–24 Volt multivolt
- Ingress protection rating: IP67 100% waterproof
- ADR approved: Yes
- Overall length: 387 mm
- Overall height: 105 mm
- Overall depth: 30.5 mm
- Warranty period: 5 years

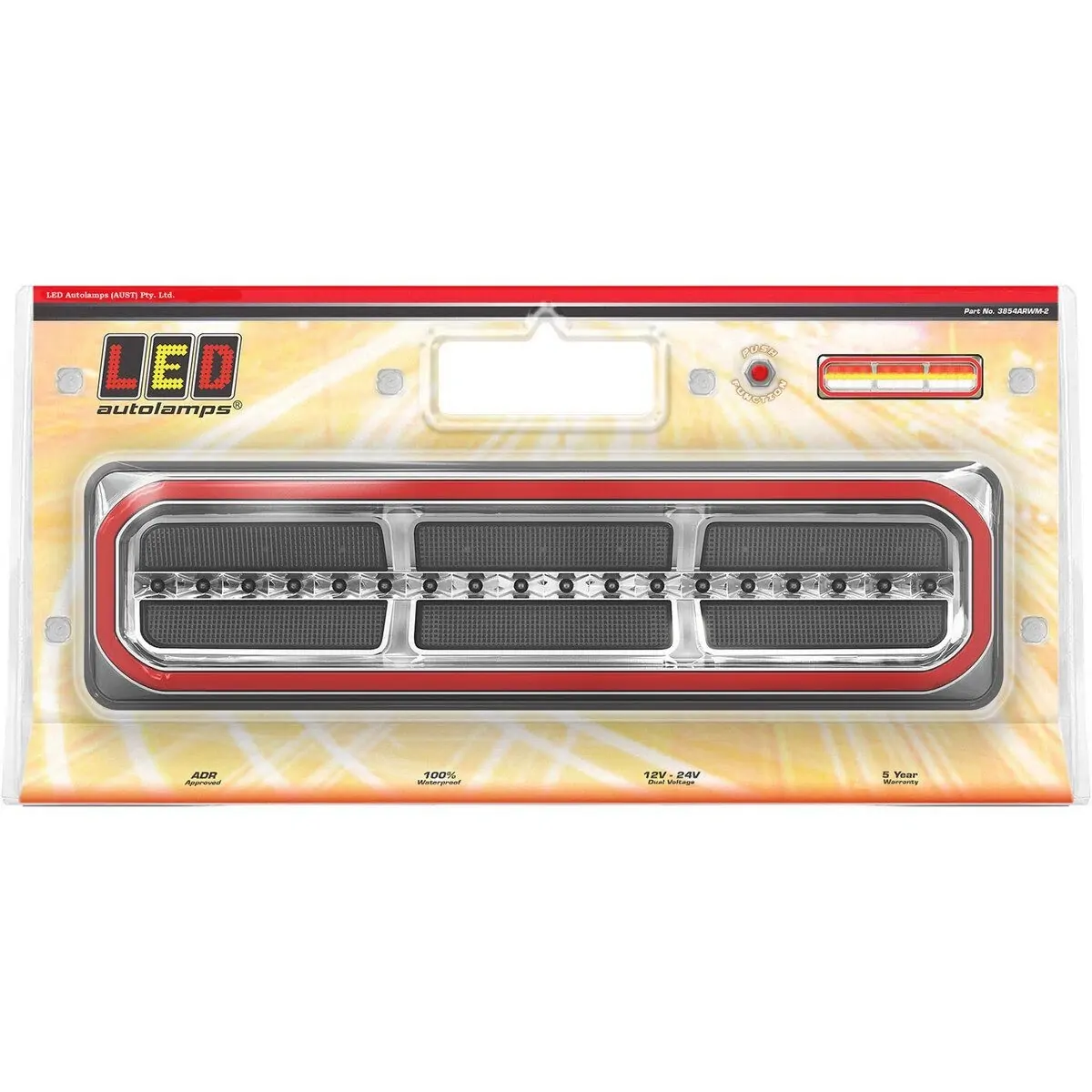

- Supplied as: Twin blister pack with try me function
- Mounting orientation: Horizontal on flat surface
- Application: Rear combination trailer or vehicle lighting
- 2 x LED Autolamps 3854 Series combination lamps (twin blister pack)
- Mounting base plates pre-attached to each lamp
- Mounting screws for horizontal installation
| SKU | 3854ARWM-2 |
|---|---|
| Barcode # | 9335962107513 |
| Brand | LED Autolamps |
| Shipping Weight | 1.6500kg |
| Shipping Width | 0.445m |
| Shipping Height | 0.210m |
| Shipping Length | 0.075m |
