Description
Features

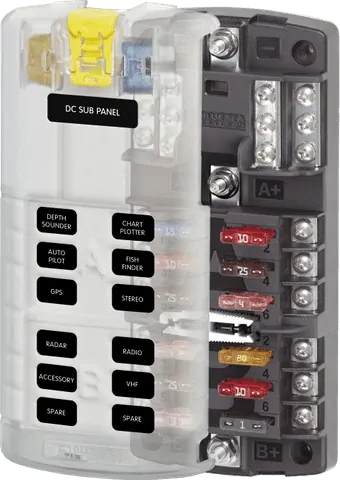

ST Blade Split Bus Fuse Block
- Provides two isolated groups of six ATO®/ATC® circuits
- For use with either two isolated batteries or with a single battery providing a mix of 24 hour and switched circuits
- Screw terminals for securing wires accept ring terminals
- One-piece stainless flange nuts ensure safe and secure connections
- Clear insulating cover with label recesses and storage for two fuses, satisfies ABYC/USCG insulation requirements
- Easy to open, push button latch for easy access to fuses
- Tin-plated copper buses and fuse clips
- Circuit labels sold separately
- Fuses sold separately
Specifications
| ST Blade Split Bus Fuse Block | |
|---|---|
| Circuits | 12 |
| Maximum Amperage | 30A per circuit 100A total |
| Maximum Voltage | 32V DC |
| Mounting | 8″ Screw [M4] |
| Negative Bus | #10-32 Stud |
| Recommended Torque | 24 in-lb (2.71 N.m) |
| Screw Terminal Type | #8-32 with Captive Start Lockwasher |
Specifications
| SKU | BS-5032B |
|---|---|
| Barcode # | OEBC527368 |
| Brand | Blue Sea Systems |
| Shipping Weight | 0.2000kg |
SKU: BS-5032B
Blue Sea Systems St Blade Split Bus Fuse Block
