Description
Features

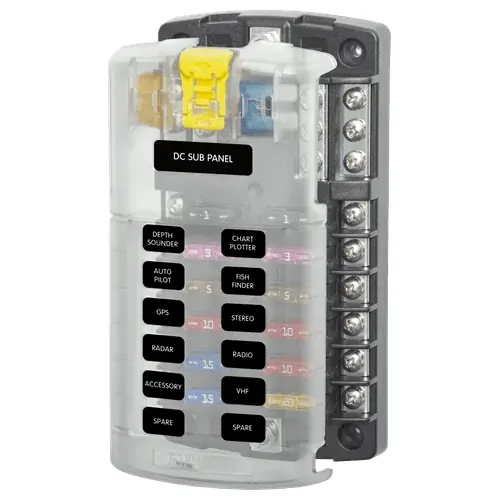

ST Blade Fuse Block – 12 Circuits with Negative Bus and Cover
Consolidates branch circuits and in-line fuses
- Positive distribution bus with #10-32 stud
- Can be used for 24-hour circuits
- Models available with or without a cover
- Cover satisfies ABYC/USCG requirements for insulation, incorporates an easy to open push button latch providing easy access to fuses, storage for two spare fuses, and label recesses that accept Blue Sea Systems” Small Format Labels for circuit identification
- Tin-plated copper buses and fuse clips
- Accepts ring or spade type terminals
- Accepts ATO® and ATC® fast acting blade fuses
- Circuit labels sold separately
- Fuses sold separately
Specifications
| ST Blade Fuse Block – 12 Circuits with Negative Bus and Cover | |
|---|---|
| Circuits | 12 |
| Maximum Amperage | 30A per circuit 100A per block |
| Maximum Voltage | 32V DC |
| Mounting | 8″ Screw [M4] |
| Negative Bus | #10-32 Stud |
| Positive Bus | #10-32 Stud |
| Recommended Torque | 24 in-lb (2.71 N.m) |
| Screw Terminal Type | #8-32 with captive start lock washer |
| Weight | 0.34 kg |
Specifications
| SKU | BS-5026B |
|---|---|
| Barcode # | OEBC527365 |
| Brand | Blue Sea Systems |
| Shipping Weight | 0.3500kg |
SKU: BS-5026B
Blue Sea Systems St Blade Fuse Block - 12 Circuits With Negative Bus And Cover
