• Closed back design completely insulates power from the mounting surface
  • Each screw pair is one isolated circuit
  • Jumpers allow creation of common circuits
Specifications
Circuits 2
Length 2.13in (54.1 mm)
Maximum Voltage 600V AC/DC
Continuous Rating  30A
Base Material UL 94 V0, PC
Bus Material Nickel-Plated Brass
Mounting Screw #10 [M5]
Screw Material Stainless Steel
Screw Terminal Torque 10 in-lb (1.13 Nm)
Terminal Screws M4
Wire Terminal Size #8 [M4]
Weight 0.11lb (0.05 kg)
Weight 0.11lb (0.05 kg)
SKU BS-2502
Barcode # OEBC527451
Brand Blue Sea Systems
Shipping Weight 0.1000kg
SKU: BS-2502

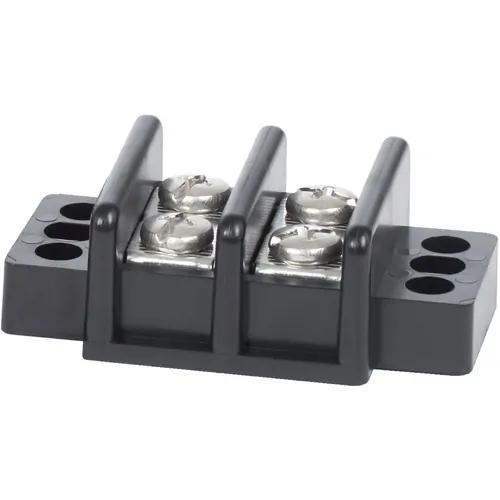

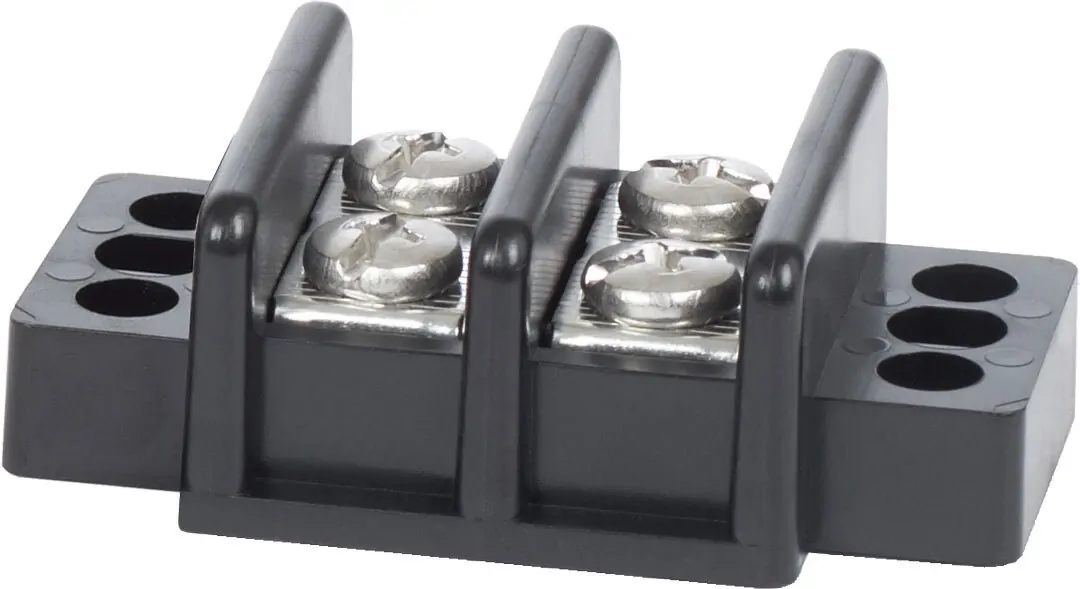

Blue Sea Systems 30A Terminal Block 2 Circuit

QOH: 1
QTY: 1
Availability:
In stock
In Stock

Sale price
$19.00
Pay in 4 interest-free payments of $4.75 PayPal Checkout

afterpay More info.

Make 4 payments of $4.75 over 8 weeks and get it now!

or interest free for up to 12 months with zipMoney
Make 4 payments of $4.75 over 8 weeks and get it now! Afterpay

Calculate Shipping

  • Closed back design completely insulates power from the mounting surface
  • Each screw pair is one isolated circuit
  • Jumpers allow creation of common circuits
Specifications
Circuits 2
Length 2.13in (54.1 mm)
Maximum Voltage 600V AC/DC
Continuous Rating  30A
Base Material UL 94 V0, PC
Bus Material Nickel-Plated Brass
Mounting Screw #10 [M5]
Screw Material Stainless Steel
Screw Terminal Torque 10 in-lb (1.13 Nm)
Terminal Screws M4
Wire Terminal Size #8 [M4]
Weight 0.11lb (0.05 kg)
Weight 0.11lb (0.05 kg)
SKU BS-2502
Barcode # OEBC527451
Brand Blue Sea Systems
Shipping Weight 0.1000kg
