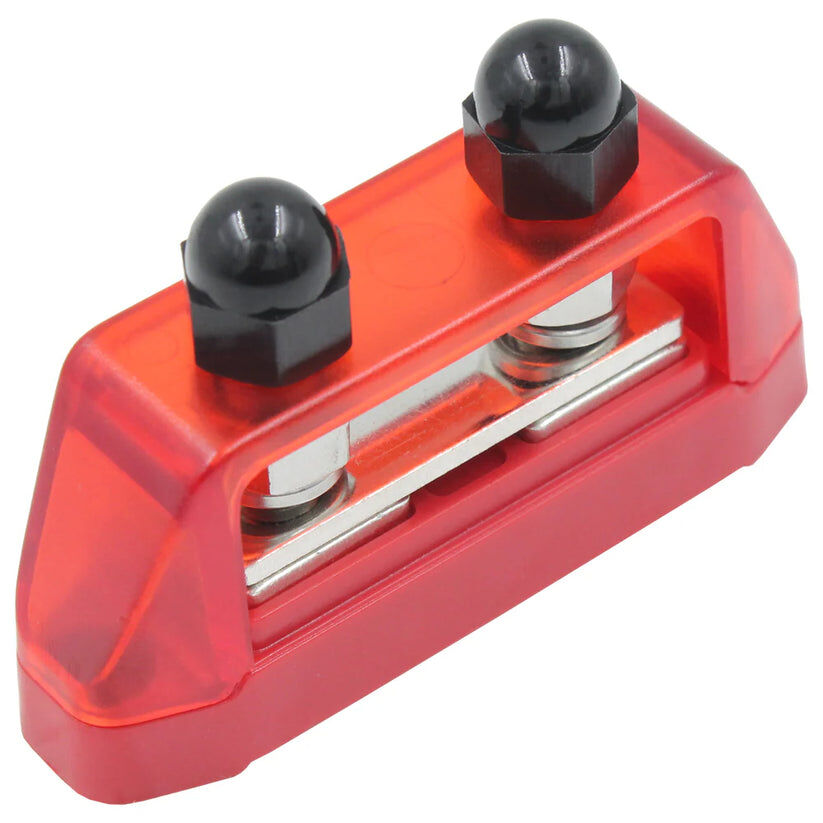

The Dual Red Surface Mount Bus Bar with M10 Studs is a reliable power distribution solution for a wide range of automotive and marine applications. Rated at 150A @ 12V, this high-performance bus bar simplifies your wiring setup and ensures a well-organized battery system by consolidating multiple connections into a single point.
Key Features:
- Efficient Power Distribution: Helps organize your battery setup with one wire per terminal, reducing clutter and improving troubleshooting.
- Enhanced Safety: The insulated design minimizes the risk of short circuits, allowing safe storage and maintenance around the battery area.
- Simplified Wiring: Makes identifying and tracing faults easier by providing accessible and centralized connection points.
Specifications:
- Maximum Rating: 250A @ 12V
- Max Voltage Supply: 48V DC
- Dimensions: 22.5mm (W) x 80mm (L) x 51.5mm (H, including cover nut)
- Terminals: M10 stud (suits 10mm, 3/8"")
- Mounting Holes: 4.7mm (recessed), with 68mm hole centers
This bus bar is an essential tool for creating a clean, efficient, and secure electrical setup in your vehicle or boat.
- Dual M10 studs for solid connections
- Handles up to 150A at 12V
- Insulated cover shields exposed hardware
- Slim 22.5mm width suits cramped bays
- 4.7mm recessed mounting holes on 68mm centres
- Accepts 10mm or 3/8" cable lugs
- Maximum continuous rating: 150A @ 12V DC
- Maximum rating: 250A @ 12V DC
- Maximum supply voltage: 48V DC
- Terminals: M10 stud to suit 10mm (3/8") lugs
- Dimensions: 22.5mm (W) x 80mm (L) x 51.5mm (H including cover nut)
- Mounting hole size: 4.7mm recessed
- Mounting hole centres: 68mm
- Configuration: dual terminal surface-mount bus bar
- Application: power distribution for automotive and marine electrical systems

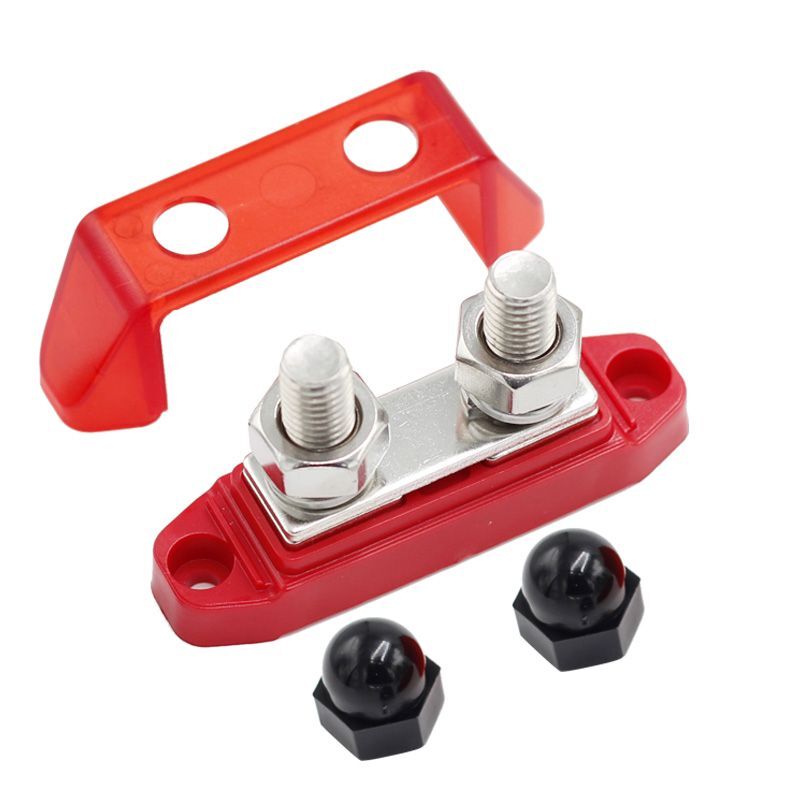

- 1 x dual red surface mount bus bar assembly with M10 studs
- 1 x red protective cover
- 2 x black terminal caps
| SKU | VES214 |
|---|---|
| Barcode # | OEBC702857 |
| Brand | VES |
| Shipping Weight | 0.5000kg |
| Shipping Width | 0.100m |
| Shipping Height | 0.100m |
| Shipping Length | 0.150m |
