The AL-KO Drop Down Corner Steady

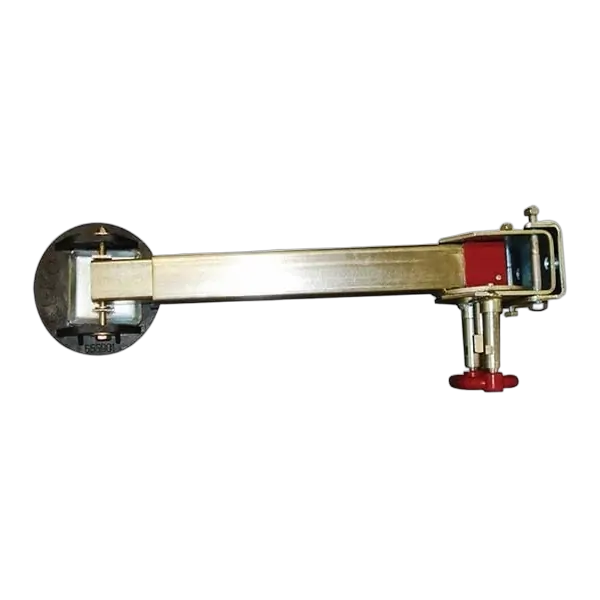

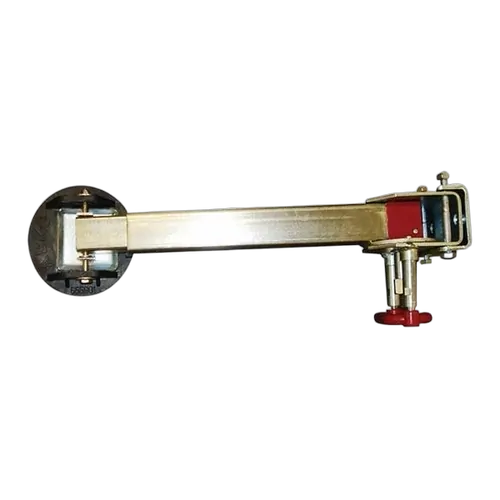

The AL-KO 590mm Drop Down Corner Steady with Bigfoot is designed to stabilise your caravan or trailer when parked. The zinc plated finish resists rust, while the large Bigfoot plate spreads weight across soft ground. With a 19mm hex drive, lowering and raising the leg is smooth and reliable.

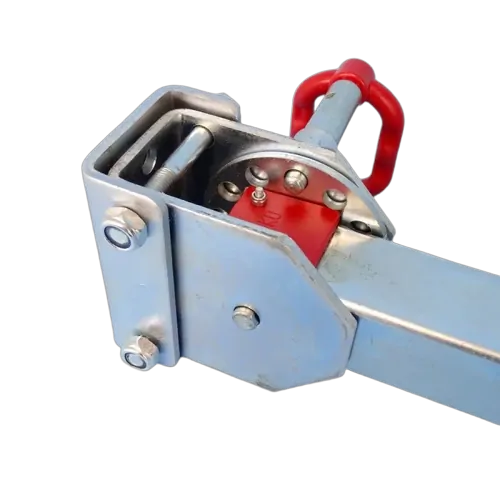

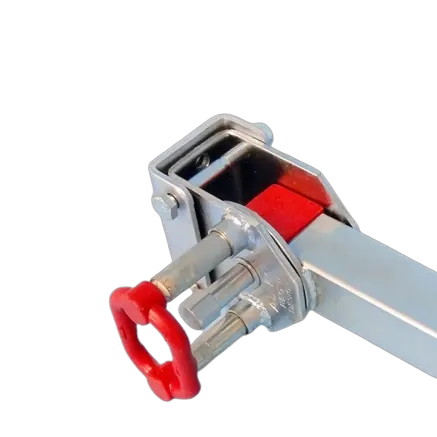

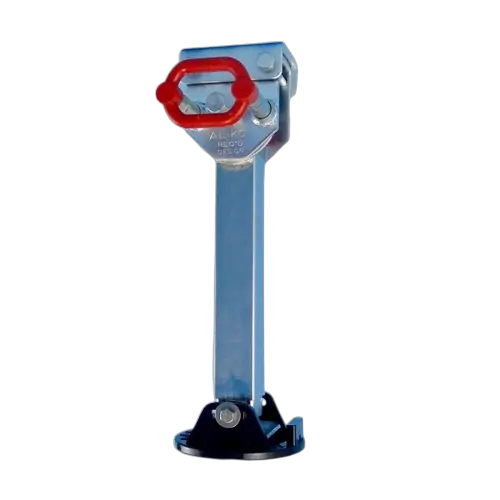

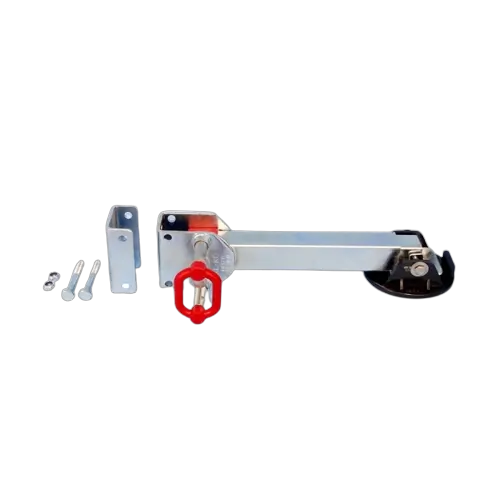

This model drops down to multiple angles, including vertical, and locks in place with a quick release handle. A welded mounting plate is included, with bolt-on installation points for easy removal or replacement. The compact closed length makes it practical for both touring caravans and camper trailers.

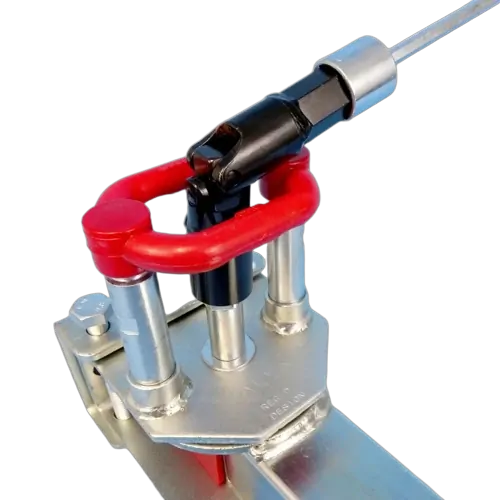

Important: AL-KO corner steadies are not jacks. They are built to stabilise a stationary caravan or trailer, not to lift it. Always use an AL-KO Hex Drive Handle for operation.
Key Features
- Zinc plated for durability
- 590mm extended length, 410mm closed length
- Wide Bigfoot base for soft or uneven ground
- Swing-up storage and quick release handle
- Weld-on mounting plate with bolt-on leg changeover option
- Smooth hex drive for simple winding
- Ergonomic grip for ease of use
- Spare parts available
Specifications
- Brand: AL-KO
- Extended Length: 590mm
- Closed Length: 410mm
- Mounting Plate (Weld-on): 110mm x 75mm

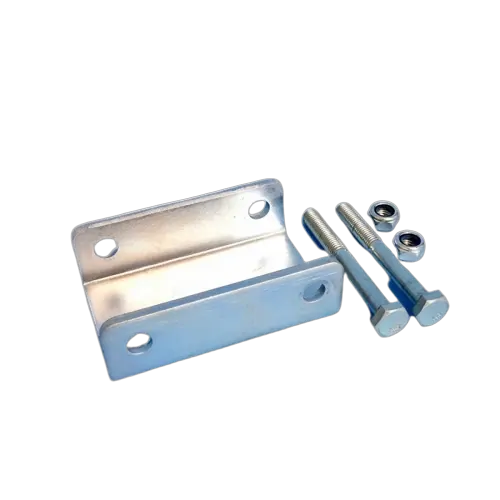

- Bolt-on Bracket: 100mm x 65mm, 80mm hole centres
- Finish: Zinc plated
- Weight: 4.9kg
- Shipping Size: 460mm x 150mm x 120mm
- Winder Handle: Sold separately
FAQs About AL-KO 590mm Drop Down Corner Steady
What’s the difference between the 590mm and 740mm versions?
The 590mm suits most on-road caravans and lower trailers. The 740mm is better for off-road vans or those with higher ground clearance. Always measure from your chassis to the ground to confirm.
Why is the Bigfoot plate important?
The Bigfoot spreads the load across a larger surface. This stops the leg from sinking into soft soil, sand, or grass. It also gives more stability on uneven ground.
Can corner steadies lift a caravan or trailer?
No. They are only designed to stabilise a stationary caravan. Always use a proper jack for lifting.
| SKU | 450-05400 |
|---|---|
| Barcode # | 450-05400 |
| Brand | Alko |
| Shipping Weight | 5.0000kg |
