Description
Yamaha Engine Interface Cable
Connects to Yamaha engines without Yamaha CommandLink Plus system.
- 2006 & newer: F50, T50, F60, T60, F75, F90, F115, LF115, F150, LF150, F200, LF200, F225, F225, F250, LF250.
- 2006 & newer: Z150, LZ150, VZ150, Z175, Z200, LZ200, VZ225, Z250, LZ250, VZ250, Z300, LZ300, VZ300.
Outputs:
| Yamaha | 4-stroke 50-250 | 2-stroke HDPI 150-350 | |
| RPM | Yes | Yes | |
| Alternator Voltage | Yes | Yes | |
| Engine Hours | Yes | Yes | |
| Engine Temperature | Yes | Yes | |
| Fuel Pressure | Yes | Yes | |
| Fuel Rate | Yes | Yes | |
| Oil Pressure | Yes | Yes | |
| Trim * | Yes | Yes | |
| Water Pressure | Yes | Yes |
*Digital trim must be connected by a Yamaha dealer.

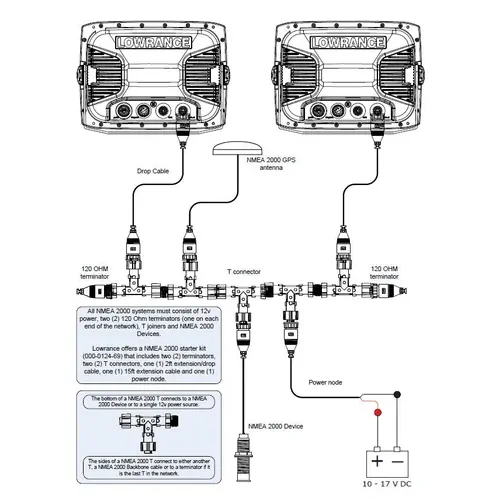

*Requires NMEA 2000 network. Kit includes T-connector to
Specifications
| SKU | 000-0120-37 |
|---|---|
| Barcode # | OEBC672507 |
| Brand | Lowrance |
| Shipping Weight | 0.5000kg |
Ships in 7 days
