Description

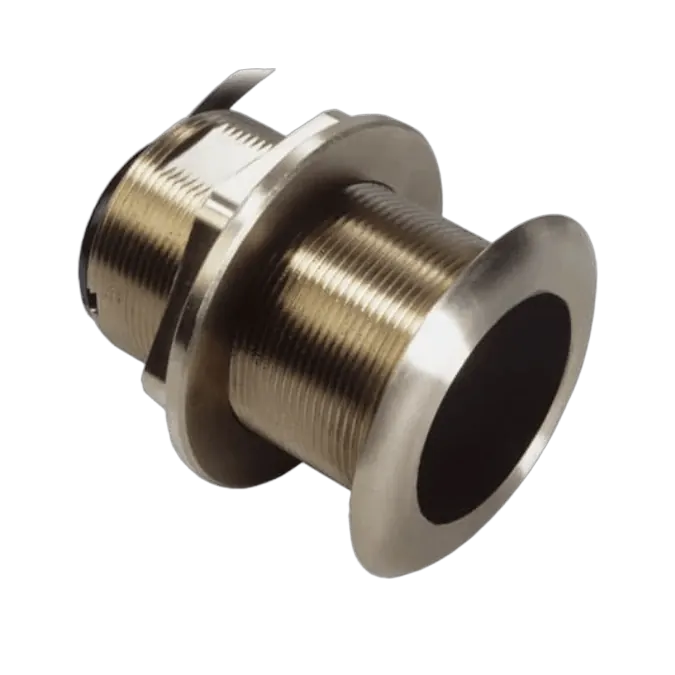

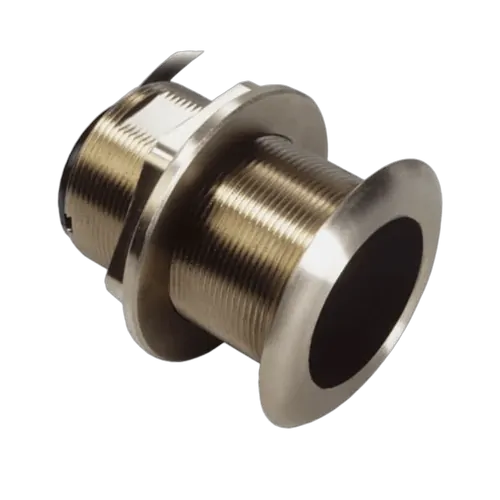

B60 (20°) - Bronze 600 W Through-Hull 50/200 kHz Depth/Temperature Sonar Transducer. Black 9pin connector and 10m (33ft) cable.
B60 Depth/Temperature Transducer 20° Tilt
The B60 is a Bronze, thru-hull, tilted, dual-frequency, depth and temperature transducer. The ceramic element is tilted for built-in deadrise compensation, giving excellent echo returns for more accurate depth readings.
Features
- Depth and water temperature
- 600 W
- 50 kHz with a wide 45° beamwidth for depth performance to 353 m (1,200')
- 200 kHz with a 12° beamwidth for depth performance to 206 m (700')
- Perfect for center-console or trailered boats
- Low-profile protrusion extends only 5 mm (3/16") outside the hull
- No effect on your boat’s running performance
- Bronze housing for use on fiberglass or wood hulls
Specifications
- Weight: 1.4 kg (3 lb.)
- Recommended Boat Length: Up to 8 m (25')
- Hull Material: Fiberglass or wood
- Hull Deadrise: 16°-24°
- Acoustic Window: Urethane
- Hole Diameter: 60 mm (2-3/8")
Specifications
Specifications
| -Weight | 1.4 kg (3 lb.) |
| -Recommended Boat Length | Up to 8 m (25') |
| -Hull Material | Fiberglass or wood |
| -Hull Deadrise | 16°-24° |
| -Acoustic Window | Urethane |
| -Hole Diameter | 60 mm (2-3/8") |
| SKU | 000-16188-001 |
|---|---|
| Barcode # | 9420064132140 |
| Brand | Airmar |
| Shipping Weight | 2.8000kg |
| Shipping Width | 0.254m |
| Shipping Height | 0.102m |
| Shipping Length | 0.203m |
SKU: 000-16188-001
Airmar XSONIC Airmar B60 (20°)
Sale price
$499.00
Pay in 4 interest-free payments of $124.75
More infoMake 4 payments of $124.75 over 8 weeks and get it now!
