With the all-new AXON™ lineup distributed by Canyon Off-Road, WARN has taken winching to the next level by combining a powerful motor and first-of-its-kind digital contactor into one unit called a Motactor™. The WARN Motactor™ increases performance, drops installation time, and provides never-before-seen levels of performance and feedback to the user. Tech is nothing without durability, so we made AXON the most durable powersports winch ever. All-metal construction, waterproof sealing, and increased structural rigidity are made for extreme environments. It’s smart, tough, and perfect for a wide range of powersports vehicles.

SPECIFICATIONS:

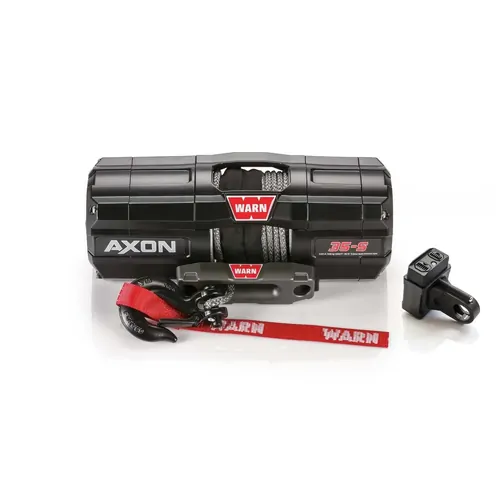

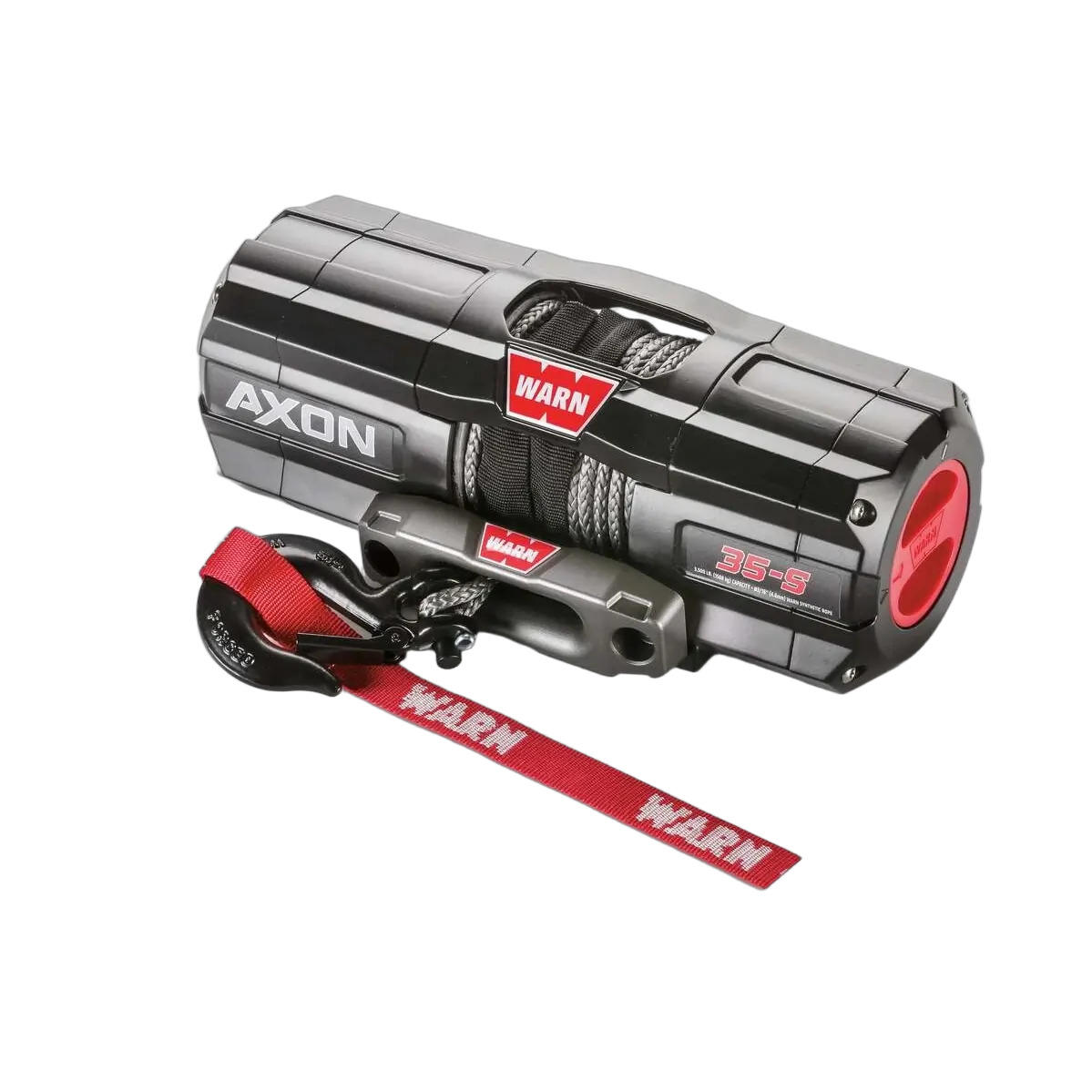

• Winch model: Axon 35-S
• Part numbers: AXON-35-S-101130
• Rated line pull: 3500 lbs. (1588 kg) single line
• Motor: 12V Permanent Magnet
• Sealing: IP68 waterproof
• Gear train: 3-Stage Planetary
• Rope Material: Synthetic
• Rope length & diameter: 50′ x 3/16″ (15m x 4.8mm)
• Primary Control: Rocker bar digital control switch with handlebar mount adaptor
• Remote Control: Sold separately
• Brake: Mechanical brake
• Mechanical Warranty: Limited lifetime
• Electrical Warranty: 3 Year
