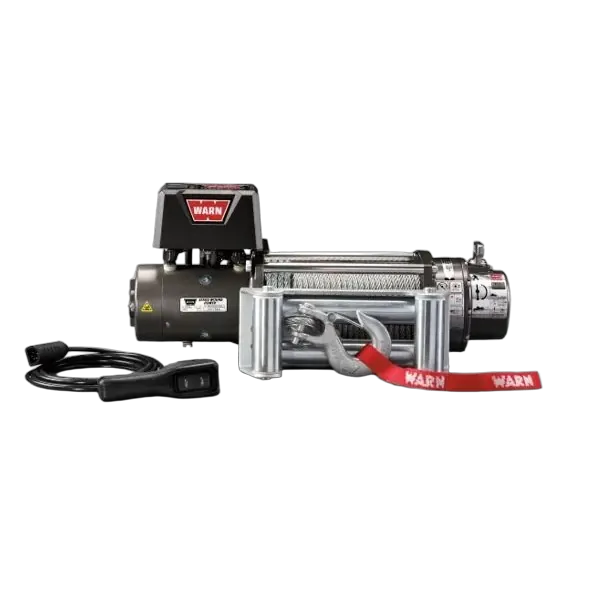

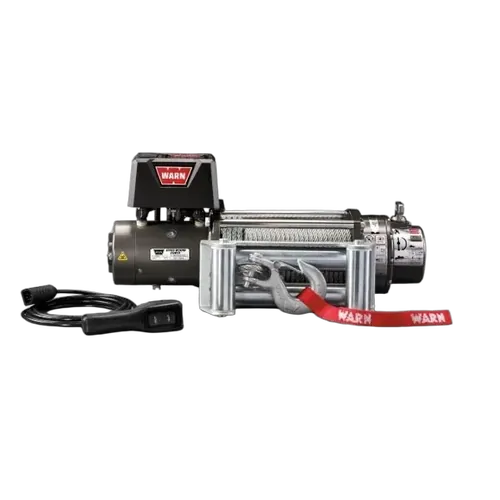

Long time best selling winch

Long-time best seller. A durable 9,000 lb. winch with a compact body and separate control pack that allows you to use it in tight spaces. Comes with 100′ of 5/16″ wire rope. Backed by the Warn Limited Lifetime Warranty.

SPECIFICATIONS:

• Part Number: XD9000-28500
• Winch model: XD9000
• Rated line pull: 9,000 lbs., (4080 kgs.) single-line
• Motor: Series Wound: 12V 4.6 hp,
• Electrical controls: Contactor
• Remote Control: Remote switch, 12′ (3.7m) lead
• Gear Train: 3-Stage Planetary
• Gear ratio: 156:1
• Clutch (free spooling): Sliding Ring Gear
• Brake: Automatic mechanical cone
• Drum diameter/Length: 2.5″/9.0″ (6.4cm/23cm)
• Weight: 78 lbs. (35kgs.)
• Wire rope: 100′, 5/16″ dia. (30m, 8mm)
• Fairlead: Roller
• Recommended Battery: 650 CCA minimum for winching
• Battery leads: 2 gauge, 72″ (1.83m)
• Finish: Argent grey powder coat

Dimensions 21.8″ L. x 6.3″ D. x 7.6″ H. (555mm L. x 160mm D. x 193mm H.)

Mounting Bolt Pattern 10.0″ x 4.5″ (254mm x 114.3mm)
