Fast, powerful and reliable

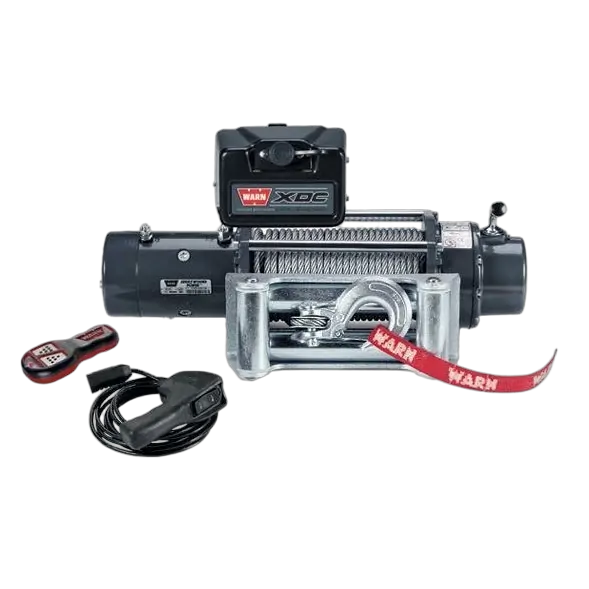

The fast, powerful XDC winch distributed by Canyon Off-Road is designed for the serious off-roader who demands a winch that will perform under the most extreme conditions in the world. It has a compact shape to fit a wide-variety of bumpers. A 9,500 lb. (4,310 kg.) capacity rating and an extreme duty cycle deliver long, efficient pulls. Additionally, the XDC features a thermometric protection device to ensure long motor life by suspending winch operation if the motor’s temperature becomes elevated beyond its normal operating range.

SPECIFICATIONS:

• Part Numbers: 9500XDC-74700
• Motor: 12V Gen II, Series Wound
• Electrical controls: Contactor
• Remote controls: Remote switch with 12′ (3.7m) lead, hand-held wireless
• Gear train: 3-stage planetary
• Clutch (free spooling): Sliding ring gear
• Brake: Automatic direct drive cone
• Rope: Steel – 100′, 5/16″ diameter (30m, 8mm diam.)
• Fairlead: roller fairlead
• Recommended battery: 650 CCA minimum for winching
• Battery leads: 2 gauge, 72″ (1.83m)
• Finish: Chromate with high-gloss dark-grey powder coat
• Drum diameter/Length: 2.5″/9.0″ (6.4cm/23cm)
• Weight: 87.0 lbs. (39.5 kgs.)

Dimensions 22.7″ L. x 6.3″ D. x 7.7″ H. (577mm L. x 160mm D. x 196mm H.)

Mounting Bolt Pattern 10.0″ x 4.5″(254mm x 114.3mm)
