Fast, Powerful and Includes Synthetic Rope

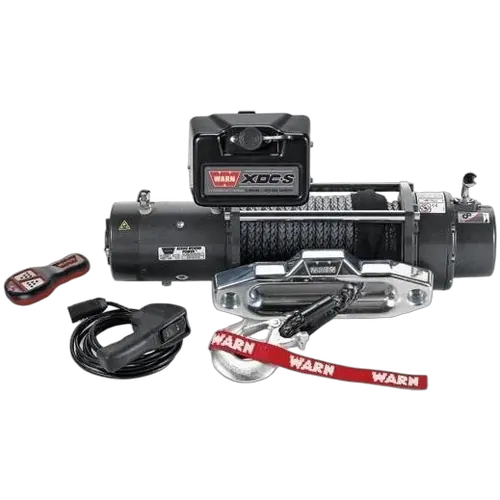

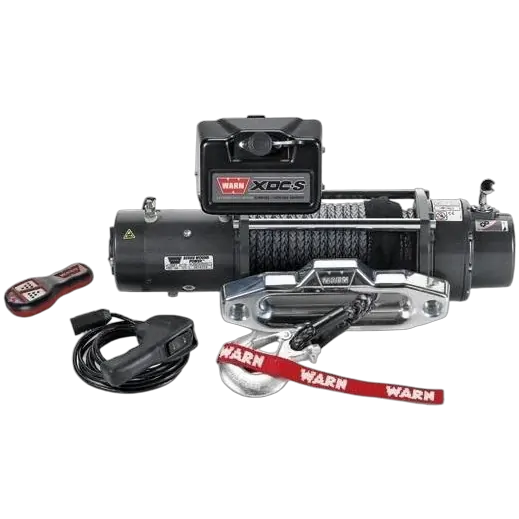

The fast, powerful XDC winch distributed by Canyon Off-Road is designed for the serious off-roader who demands a winch that will perform under the most extreme conditions in the world. It has a compact shape to fit a wide-variety of bumpers. A 9,500 lb. (4,310 kg.) capacity rating and an extreme duty cycle deliver long, efficient pulls. Additionally, the XDC features a thermometric protection device to ensure long motor life by suspending winch operation if the motor’s temperature becomes elevated beyond its normal operating range.

SPECIFICATIONS:

• Part number: CE9500XDC-88750
• Rated line pull: 9,500 lbs., (4310 kgs.) single-line
• Motor: 12V Gen II, Series Wound
• Electrical controls: Contactor
• Remote Control: Remote switch, 12′ (3.7m) lead and
• Gear train: 3-Stage Planetary
• Gear ratio: 156:1
• Clutch (free spooling): Sliding Ring Gear
• Brake: Automatic Direct Drive Cone
• Drum diameter/Length: 2.5″/9.0″ (6.4cm/23cm)
• Weight: 68 lbs. (30.8 kg)
• Synthetic Rope: 80′, 3/8″ diameter (24.38m, 9.5mm diam.)
• Fairlead: Polished Aluminium Hawse
• Recommended Battery: 650 CCA minimum for winching
• Battery leads: 2 gauge, 72″ (1.83m)
• Finish: Chromate with high-gloss dark-grey powder coat

Dimensions 21.8″ L. x 6.3″ D. x 7.6″ H. (555mm L. x 160mm D. x 193mm H.)

Mounting Bolt Pattern 10.0″ x 4.5″ (254mm x 114.3mm)
