Description

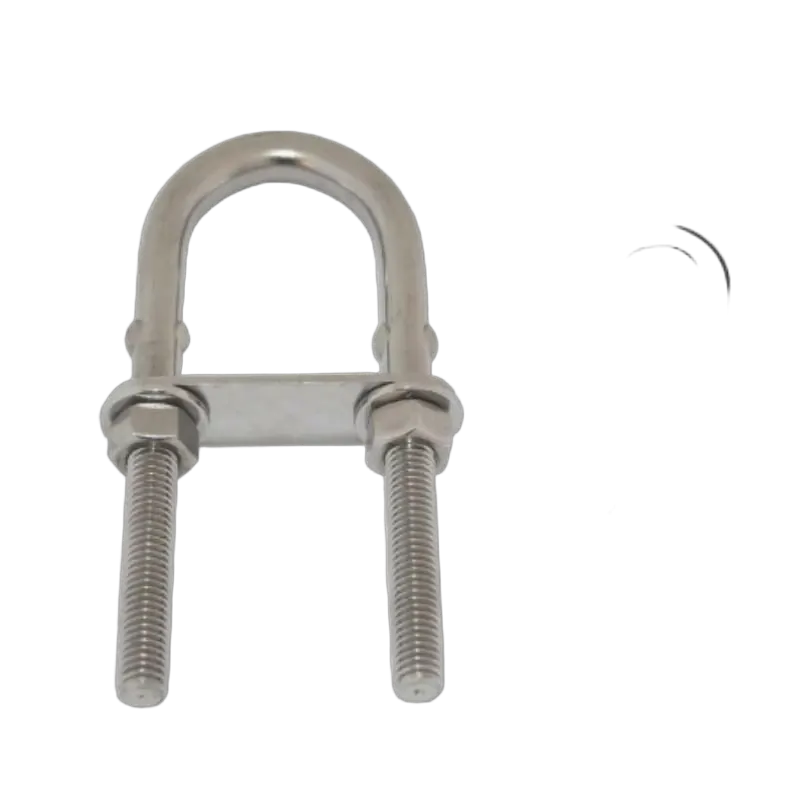

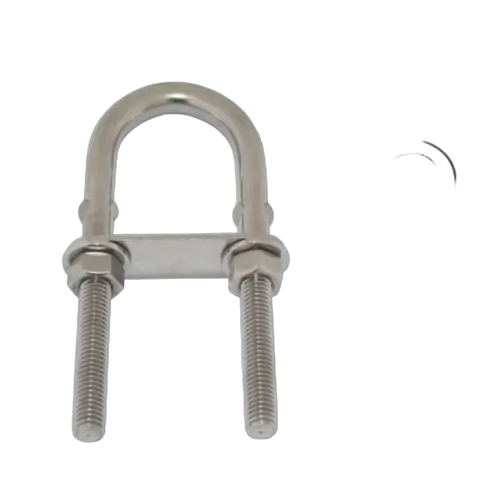

304 grade stainless steel with crimped shaft and metric shaft thread. Supplied with 1 x cross plate,
2 x washers and 2 x hex nuts.
| PART NUMBER | GAUGE (D) SIZE | OVERALL LENGTH (L) | TOP LENNGTH (L1) | BOTTOM LENGTH (L2) | WIDTH (A) | THREAD LENGTH (B) |
|---|---|---|---|---|---|---|
| RWB-2413 | 6mm | 80mm | 30mm | 45mm | 35mm | 40mm |
| RWB-2409 | 8mm | 80mm | 35mm | 45mm | 35mm | 40mm |
| RWB-2410 | 8mm | 100mm | 40mm | 60mm | 35mm | 48mm |
| RWB-2411 | 10mm | 130mm | 55mm | 75mm | 53mm | 55mm |
| RWB-2412 | 12mm | 150mm | 75mm | 75mm | 60mm | 60mm |
Specifications
| SKU | RWB2409 |
|---|---|
| Barcode # | 9324608004460 |
| Brand | RWB |
| Shipping Weight | 1.0000kg |
Pay in 4 interest-free payments of $2.25
More infoMake 4 payments of $2.25 over 8 weeks and get it now!
or interest free for up to 12 months with
Make 4 payments of $2.25 over 8 weeks and get it now!
304 grade stainless steel "U" bolts with a stepped shaft giving a solid bearing surface for the bearing
