The Symmetry range of small area modules are perfect for use in a wide variety of low power solar PV systems. Available in a range of sizes from 5 watts up to 180 watts, the Symmetry range uses mono-crystalline, weatherproof A grade solar cells in a robust aluminium frame.
Features:
- High Efficiency
High module conversion efficiency, through innovative manufacturing technology.
- Low-Light Performance
Advanced glass and solar cell surface texturing allow for excellent performance in low-light environments.
- Severe Weather Resilience
Certified to withstand - wind load (2400Pa) and snow load (5400Pa).
- Durability Against Extreme Environmental Conditions
High salt mist and ammonia resistance certified by TUV.
- 0-+5W Positive Tolerance
Detailed information in Electrical Specifications.
| Weight [kg] | 9.61 |
| Depth [mm] | 30 |
| Quantity Per Pallet | 40 |
| Brand | Symmetry |
| Backsheet Colour | White |
| IP Rating | IP65 |
| Operating Temperature Range [°C] | -40 to +85 |
| Maximum Power (Pmp) [W] | 180 |
| Maximum Series Fuse Rating [A] | 15 |
| Frame Colour | Silver |
| Solar Cell Type | Monocrystalline |
| Maximum Power Voltage (Vmp) [V] | 20.88 |
| Maximum Power Current (Imp) [A] | 8.62 |
| Short Circuit Current (Isc) [A] | 19.9 |
| Open Circuit Voltage (Voc) [V] | 24.8 |
| Pmp Temp Coefficient [%/°C] | -0.35 |
| Voc Temp Coefficient [%/°C] | -0.285 |
| Isc Temp Coefficient [%/°C] | 0.045 |
| NOCT [°C] | 45 |
| Junction Box | IP67 |
| Module Cables | 2 x 0.9m 2.5mm2 with LH4 connectors |
| Maximum System Voltage [V] | 1000 |
| Number of Cells | 72 |
| Width [mm] | 770 |
| Length [mm] | 1175 |
| Packaging | Cardboard Carton |
| Family | Symmetry |
| SKU | SY3-M180W_LH4 |
|---|---|
| Barcode # | OEBC720161 |
| Brand | Symmetry |
| Shipping Weight | 10.0000kg |
| Shipping Width | 0.800m |
| Shipping Height | 0.050m |
| Shipping Length | 1.200m |

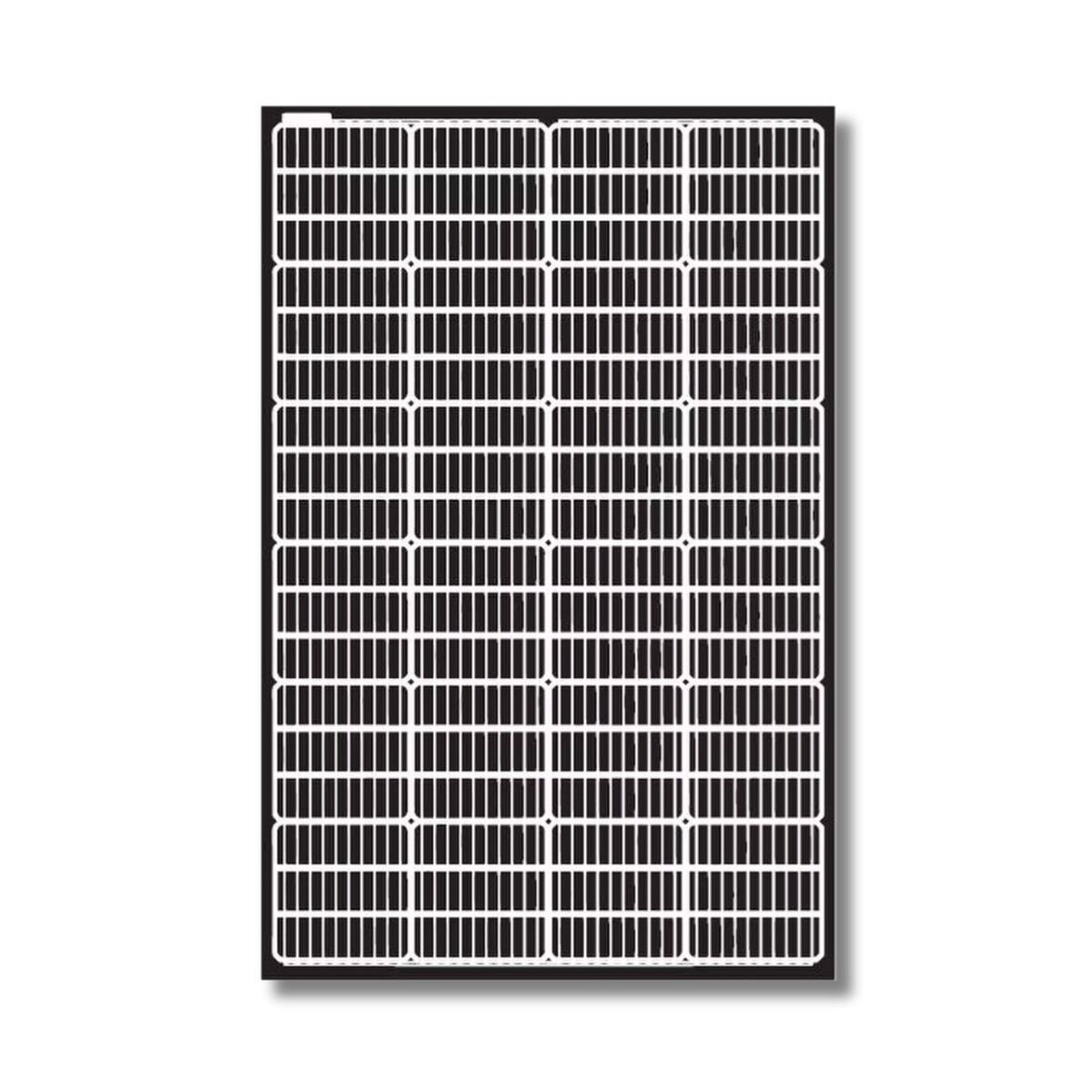

Symmetry Solar PV 180w Module; Mono 12v 0.9m LH4 Connectors (30mm)
