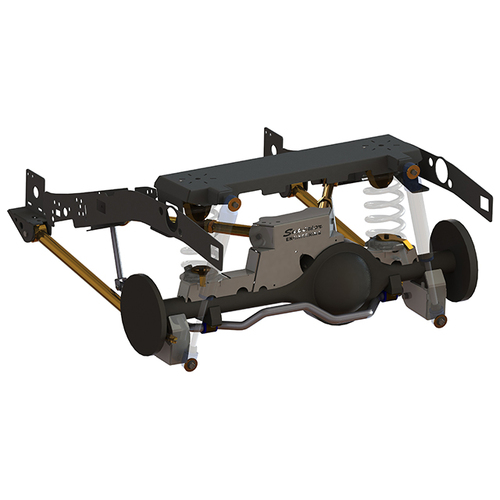

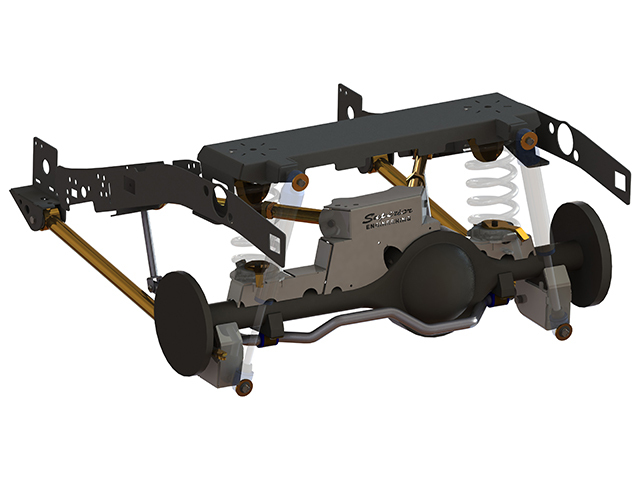

Superior Weld-In Coil Conversion VSB14 Approved Lift Kits Suitable For Toyota LandCruiser 79 Series Gen 1 (Non-VSC Models)

_x000D_ _x000D_

Note: Superior Engineering highly recommends the use of an EPRS rust prevention unit when fitting any weld on chassis components.
_x000D_ The Use of Electronic Rust Prevention can assist in the prevention of rust formation.
_x000D_ Superior recommends using an 8 Coupler system for most vehicles, please see the related products tab above.

_x000D_ _x000D_

_x000D_

_x000D_

2nd Generation Design! Now supplied with Longer Lower Control Arms for better control of the diff when off-road. (Design Number 201817399)

_x000D_ _x000D_

NOTE: Exhaust mods are not included in this price and will have to add to the final cost, the exhaust will need the be modified from the rear control arm mount back.

_x000D_ _x000D_

Convert your leaf sprung LandCruiser 79 Series Dual Cab to a more compliant ride and better handling both on and offroad with one of our Superior Engineering Coil Conversion Kits, designed, tested and manufactured right here in Brisbane to suit all Australian conditions.
_x000D_ This kit is supplied with everything you need to convert your vehicle from leaves to coils except the coils and shocks, this allows you to run your own selection of coils or shocks.
_x000D_ It still includes all other required parts such as all brackets, mounts, control arms, brake lines and sway bar as well.
_x000D_ The NCOP VSB pre-approval paperwork is also supplied, so you can legally have the Coil suspension fitted and approved on your vehicle.
_x000D_ The Coil Conversion kit utilises many original bolt locations to precisely place many of the brackets on the vehicle, allowing simple installation.

_x000D_ _x000D_

The Superior Engineering Weld-In coil conversion design was chosen to provide a more robust and longer-lasting solution for the trusty LandCruiser workhorses.
_x000D_ We felt that a welded package that distributes the loads more evenly over almost 100% more chassis area than common bolt-in systems is exactly what LandCruiser owners deserve!
_x000D_ ?LESS Expense, Less Maintenance and improved chassis strength is why - Welding is the preferred method. Who would want to drive to the cape over corrugated tracks and have to stop to check if your rear suspension is still bolted in all the time?

_x000D_ _x000D_

Once you drive on a coil rear 79 you won"t ever want to go back to leaf-sprung suspension! Do your spine a favour, and get the Superior Engineering Weld-In Coil Suspension.

_x000D_ _x000D_

We have developed this kit to be easy to install with full instructions and have done all the hard work and testing as well as performing accredited lane change tests (Check out the video below) and the Design pre-approval under the VSB LS Codes.
_x000D_ This kit needs to be welded by a qualified boilermaker or welder (AS1554.1 certified) and fitted by a suitably qualified suspension fitter.
_x000D_ Once this coil conversion is fitted the vehicle must be produced at your local transport approved modification plate officer, they will inspect that the vehicle has the suspension fitted in accordance with the supplied instructions and is welded correctly and to an acceptable standard, original invoice will need to be provided for the coil kit at the time of inspection to prove it is a Superior Engineering kit. The inspector/ officer will then plate the vehicle with an LS6 approval code. As with all modification and aftermarket accessories, it is recommended to confirm all modifications in writing with your insurance company as some policies or providers may not accept such modifications although street legal.

_x000D_ _x000D_

This kit is designed to use Toyota LandCruiser 80 Series Coils and Nissan Patrol Rear Shocks, which gives a great range to choose from.
_x000D_ Please call us for advice on coil shock selection.

_x000D_ _x000D_

For more detailed information please Click Here

_x000D_ _x000D_

_x000D_ _x000D_

FEATURES & HIGHLIGHTS

_x000D_ _x000D_

_x000D_
• Street Legal & Compliant, Approval Under VSB LS Codes
_x000D_
• Weld-In Kit Featuring 4 x Chassis Side Strengthening Braces
_x000D_
• Heavy Duty Sway bar & Coil Tower Brace
_x000D_
• Uses Factory Mounting Locations For A Precise Fit
_x000D_
• Supplied Pre-Fabricated For An Easy Installation
_x000D_
• Improved Roll Axis For Tyre Clearance
_x000D_
• Increased Wheel Travel & Articulation
_x000D_
• Adjustable Upper Control Arms
_x000D_
• 40mm OD Fixed Lower Control Arms
_x000D_
• Reduced Bush Bind Over A 5-Link
_x000D_
• Compatible with Coil Air Bags
_x000D_
• 4-Link Rear Suspension Setup
_x000D_
• Fully Adjustable Pinion Angle
_x000D_
• Provides More Precise Handling
_x000D_
• Improved Comfort & Ride
_x000D_
• 350 Grade Steel Mounts
_x000D_
• Supplied with Sway Bar
_x000D_
• Will work on up to 5" lift
_x000D_

_x000D_ _x000D_

Kit Contains

_x000D_ _x000D_

_x000D_
• Side Chassis Brace
_x000D_
• Sway Bar Kit
_x000D_
• Upper Control Arm Mounts (Diff and Chassis)
_x000D_
• Lower Control Arm Fixed Pins
_x000D_
• Lower Control Arm/Shock Mount
_x000D_
• Coil Tower/Bracing
_x000D_
• Lower Coil Mounts
_x000D_
• Upper Adjustable Control Arms
_x000D_
• Lower Control Arms
_x000D_
• Handbrake Relocation Bracketry
_x000D_
• All Required Bolts and Fasteners
_x000D_

_x000D_ _x000D_

NOTE: Some modifications to the rear of the exhaust system will be required to fit this kit.

_x000D_ _x000D_

_x000D_ _x000D_

_x000D_ _x000D_

_x000D_ _x000D_

_x000D_ _x000D_

_x000D_ _x000D_

_x000D_ _x000D_

_x000D_ _x000D_

_x000D_ _x000D_

_x000D_ _x000D_

NOTE: The welding of this kit must meet or exceed Australian Standard AS 1554 Structural steel
_x000D_ welding Category SP. In general, for approval purposes, this part needs to be welded by a qualified
_x000D_ welded who has performed and understands the correct welding procedure that is required.

_x000D_ _x000D_

For warranty reasons, when fitting a lift kit you should always fill out a "Fitment Form".
