Superior Weld-in\ Coil Conversion VSB14 -Approved 2 Inch Lift Kit with Track Corrected Chromoly\ Diamond Diff Housing w/2.5 Remote Reservoir Shocks(Front and Rear) Suitable For\ Toyota LandCruiser 79 Series Gen 1 (Non-VSC Models)

\ \

Please Note: Due to supply issues, the colour of the coil springs you receive may vary from the coils pictured. All coils used in Superior Engineering Kits are made from quality Australian manufacturers.

Note: Superior Engineering highly recommends the use of an EPRS rust prevention unit when fitting any weld on chassis components.
\ The Use of Electronic Rust Prevention can assist in the prevention of rust formation.
\ Superior recommends using an 8 Coupler system for most vehicles, please see the related products tab above.

\ \

\ \

The Superior Engineering LandCruiser 79 coil kits can be supplied to suit a wide range of applications. We have packages and options from – VSB / State approved kits that use your factory housing in either Bolt-In or Weld-In to our bigger kits that can be Federally approved. These larger Federally approved kits allow a metric equivalent or imperial 35” tire, 4” suspension lift kit, 4-tonne GVM, Wide-Track Chromoly housing.

\ \

With so many options available Superior Engineering can supply a kit to suit just about any application, whether you’re just a weekend wheeler that has no weight and puts the dog in the back, a Tradie that is loaded through the week and unloaded on the weekends or a fully kitted-out 4T+ tourer.

\ \

The Ultimate diff housing starts with 4140 Chromoly 13.5mm wall housing tubes that are ~900Mpa average Yield Strength where our competition uses ~6mm wall carbon hollow bar that is ~470Mpa, meaning just in the tubes alone a Superior Engineering housing are almost double the strength over our competitors. FEA tests were completed with 15-tonne load on the rear axle, and even then they only showed a deflection in the housing of less than 1mm, no other brand LandCruiser housing come close!

\ \

For more detailed information please Click Here

\ \

FEATURES & HIGHLIGHTS

\ \

\
• Weld-In Kit Featuring 4 x Chassis Side Strengthening Braces
\
• Heavy Duty Sway bar & Coil Tower Brace
\
• Uses Factory Mounting Locations For A Precise Fit
\
• Supplied Pre-Fabricated For An Easy Installation
\
• Improved Roll Axis For Tyre Clearance
\
• Increased Wheel Travel & Articulation
\
• Adjustable Upper Control Arms
\
• 40mm OD Fixed Lower Control Arms
\
• Reduced Bush Bind Over A 5-Link
\
• Compatible with Coil Air Bags
\
• 4-Link Rear Suspension Setup
\
• Fully Adjustable Pinion Angle
\
• Provides More Precise Handling
\
• Improved Comfort & Ride
\
• 350 Grade Steel Mounts
\
• Supplied with Sway Bar
\
• Will work on up to 5” lift
\
• Superior Track Corrected Chromoly Diamond Diff Housing, with a Higher load rating than competitors at 3150kg
\

\ \

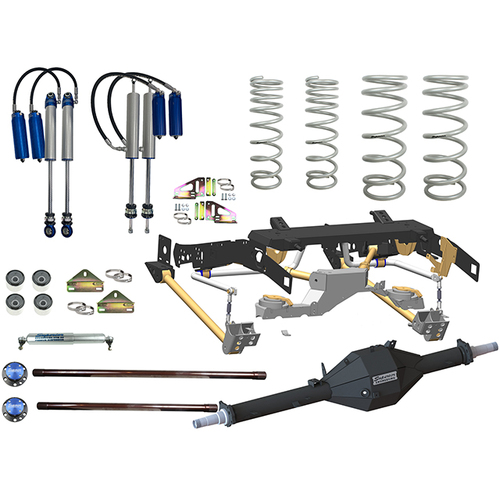

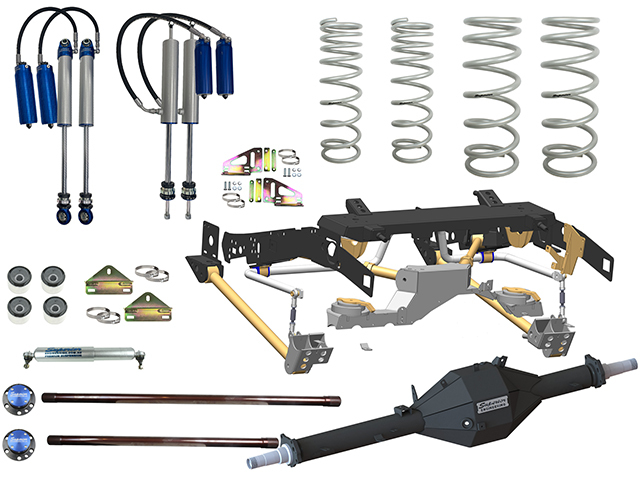

Kit Contains

\ \

\
• Side Chassis Brace
\
• Sway Bar Kit
\
• Upper Control Arm Mounts (Diff and Chassis)
\
• Lower Control Arm Fixed Pins
\
• Lower Control Arm/Shock Mount
\
• Coil Tower/Bracing
\
• Lower Coil Mounts
\
• Upper Adjustable Control Arms
\
• Lower Control Arms
\
• Handbrake Relocation Bracketry
\
• All Required Bolts and Fasteners
\
• Superior Engineering Track Corrected Chromoly Diamond Diff Housing, with a Higher load rating than competitors at 3150kg
\
• Front Coil Springs
\
• Rear Coil Springs
\
• Front Superior Remote Reservoir Shocks
\
• Rear Superior Remote Reservoir Shocks
\
• Superior Steering Damper
\

\ \

NOTE: Some modifications to the rear of the exhaust system will be required to fit this kit.

\ \

\ \

\ \

\ \

\ \

\ \

\ \

\ \

\ \

\ \

\ \

\ \

\ \

\ \

\ \

\ \

\ \

NOTE: The welding of this kit must meet or exceed Australian Standard AS 1554 Structural steel
\ welding Category SP. In general, for approval purposes, this part needs to be welded by a qualified
\ welded who has performed and understands the correct welding procedure that is required.

\ \

For warranty reasons, when fitting a lift kit you should always fill out a "Fitment Form".

\
