NOTE: THIS KIT IS FOR BRAND NEW PRE-REGISTERED VEHICLES AUSTRALIA WIDE
ALSO AVAILABLE TO BE APPROVED IN-SERVICE IN SA
Fitting and Federal Approval valid in all States is available from Superior Engineering or one of our Federally Approved Production Facilities.
\
The cost of Fitting/Welding and Engineering Approval at any Superior Engineering Production Facility Location Prior to first Vehicle Registration Starts from $6370.00
Superior Engineering is the only manufacturer in Australia that can legally supply a lift kit that offers a true 35†tire option on 16â€, 17†or 18†rims with a combination from +0 to Neg 25 offset in the rims, Superior 4 link coil conversion in 3.8T GVM upgrade and we also upgrade the rear track width to match the front.
Another key factor in choosing this kit is it can also legally use Superior Radius Arms meaning you will have the biggest, meanest 76 driving around legally throughout Australia.
Unlike other manufacturers who supply diffs then make you pay more for good axles we supply as standard the world's toughest 300M axles built in the USA just for Superior Engineering, these axles offer a lifetime warranty against failure and they retail for over $3000 per pair at no extra cost when purchasing a complete suspension kit.
\ \For more detailed information please click here
\ \FEATURES & HIGHLIGHTS
\ \- \
- Street Legal & Compliant, Approval Under SSM \
- Bolt-In Kit Featuring 4 x Chassis Side Strengthening Braces \
- Heavy Duty Sway bar & Coil Tower Brace
- RCV 300M Axles \
- Uses Factory Mounting Locations For A Precise Fit \
- Supplied Pre-Fabricated For An Easy Installation \
- Improved Roll Axis For Tyre Clearance \
- Increased Wheel Travel & Articulation \
- Adjustable Upper Control Arms \
- 40mm OD Fixed Lower Control Arms \
- Reduced Bush Bind Over A 5-Link \
- Compatible with Coil Air Bags \
- 4-Link Rear Suspension Setup \
- Fully Adjustable Pinion Angle \
- Provides More Precise Handling \
- Improved Comfort & Ride \
- 350 Grade Steel Mounts \
- Supplied with Sway Bar \
- Geometry will work on up to 5†lift but not legal at that height \
- Superior Track Corrected Chromoly Diamond Diff Housing, with a Higher load rating than competitors at 3150kg \

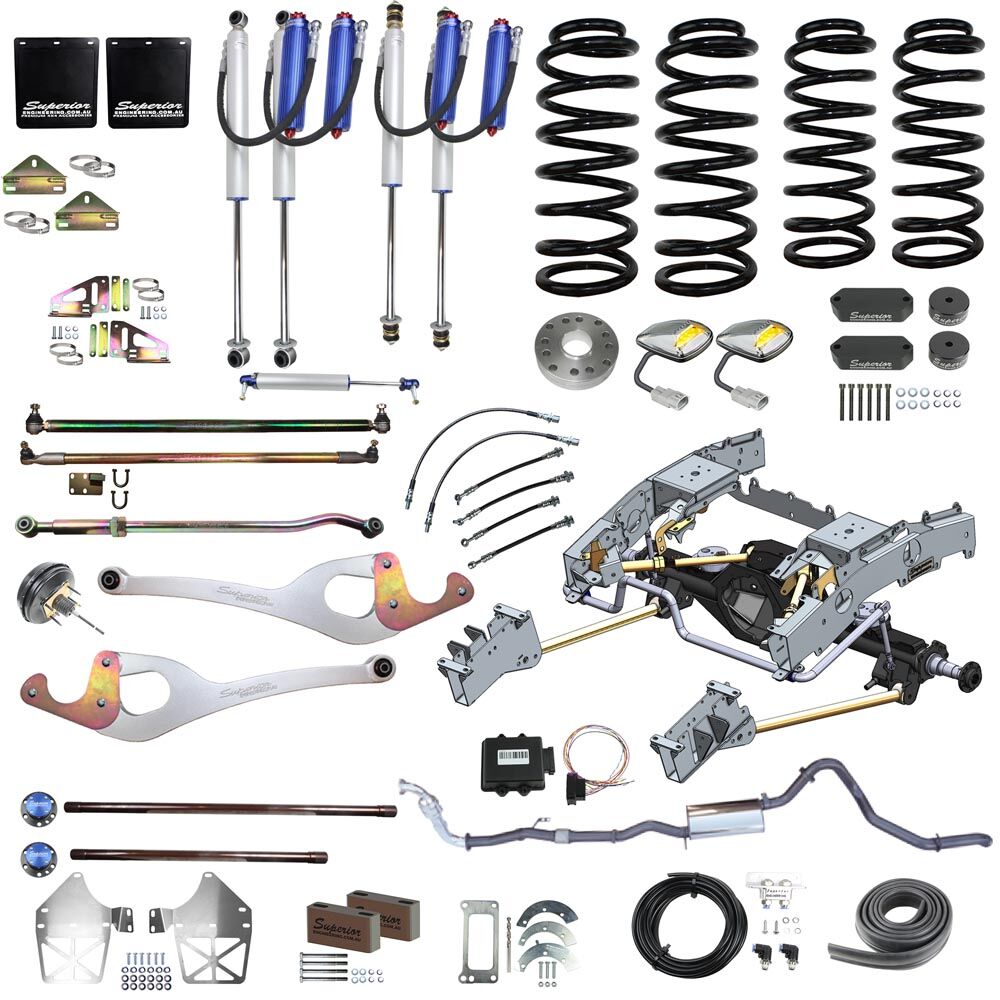

Kit Contains
\ \- \
- Side Chassis Brace \
- Sway Bar Kit \
- Upper Control Arm Mounts (Diff and Chassis) \
- Lower Control Arm Fixed Pins \
- Lower Control Arm/Shock Mount \
- Coil Tower/Bracing \
- Lower Coil Mounts \
- Upper Adjustable Control Arms \
- Lower Control Arms \
- Handbrake Relocation Bracketry \
- All Required Bolts and Fasteners \
- Superior Engineering Track Corrected Chromoly Diamond Diff Housing - Lifetime warranty against bending \
- RCV 300M Axles \
- Front Coil Springs \
- Rear Coil Springs \
- Superior Engineering Radius Arms - Lifetime warranty against bending \
- Superior Engineering Front Panhard Rod \
- Front Superior Remote Reservoir Shocks \
- Rear Superior Remote Reservoir Shocks \
- Superior Engineering Remote Reservoir Mounts \
- Bendix Upgraded Dual Diaphragm Brake Booster \
- Superior Engineering Handbrake Upgrade \
- Superior Engineering Comp Spec Drag Link - Lifetime warranty against bending \
- Superior Engineering Comp Spec Tie Rod - Lifetime warranty against bending \
- Front Braided Brake Lines \
- Rear Braided Brake Lines \
- Superior IFP Steering Damper \
- Guard Flare Extension \
- Legal Australia Wide! \
For warranty reasons, when fitting a lift kit you should always fill out a "Fitment Form".
\SKU | SE-35806 |
---|---|
Barcode # | OEBC559210 |
Brand | superior engineering |
Shipping Weight | 608.4200kg |
Shipping Width | 1.400m |
Shipping Height | 1.200m |
Shipping Length | 1.800m |
