Build Australia"s Toughest Street Legal Coil Converted Toyota Hilux Dual Cab with a Superior Engineering Outback Explorer GVM Upgrade Kit.
_x000D_THIS KIT IS INTENDED FOR BRAND-NEW PRE-REGISTERED VEHICLES AUSTRALIA-WIDE.
_x000D_IN-SERVICE APPROVAL MAY BE AVAILABLE IN SOME STATES & TERRITORIES.
_x000D_Supply, Fitment and Federal Approval are exclusively available through Superior Engineering or one of our Federally Approved Production Facilities.
_x000D_The cost of Fitting/Welding and Engineering Approval at any Superior Engineering Production Facility Location Before the First Vehicle Registration Starts from $6850.00 Inc GST.
_x000D_Front End
_x000D_
The front of your Outback Explorer Hilux is held up by our Australian Made Heavy Duty Coil Springs coated in our Signature Superior Silver Powder coat. CV Angle Re-Alignment comes courtesy of the Superior 25mm Diff Drop Kit.
_x000D_
_x000D_
Upper Control Arms
_x000D_
All Outback Explorer Kits include a pair of our Australian Made Superior Engineering Billet Upper Control arms, which are designed to assist with correcting wheel alignment through fine-tuning of the camber and castor angles when lifting your IFS vehicle. Manufactured from Solid Billet Aircraft Grade 6000 Series Alloy, these UCA"s are manufactured to give additional clearance to the Front Coil Spring during articulation and increased clearance for the Under Guard. Durable Poly Bushes are utilised at the chassis end, alongside the highest quality, high-angle greaseable ball joints at the wheel end, to allow for the maximum range of movement without binding.
_x000D_
_x000D_
Shocks
_x000D_
All Outback Explorer Kits come standard with Superior Engineering 2.0 Remote Reservoir Shock Absorbers Front & Rear, with kit options that include our Superior Engineering 2.5 Remote Reservoir Shocks.
Superior Engineering Remote Reservoir Shock Absorbers feature an external compression adjuster knob as standard across the range, with an additional rebound adjuster feature included exclusively on the 2.5 Inch Bore Shocks. Included are our Hilux-specific Shock Reservoir Mounts front & rear designed to keep your Reservoirs securely fixed out of harm"s way.
_x000D_
_x000D_
_x000D_
Wheels, Tyres & Speedo Correction
_x000D_
Superior Engineering 2" Lift Outback Explorer Kits can be legally certified Pre-Registration with tyre sizes up to and including 265/70R17 (31.7 Inches) with Wheel Offsets varying from OE through to POS10. A Superior CANBUS Specific Speedo Correction Module is calibrated to your nominated tyre size and installed to ensure accurate speedometer readings.
_x000D_
_x000D_
Coil Conversion
_x000D_
Why ride on Leaf Springs when you can ride on Coils? Superior Engineering"s Weld-In Coil Conversion gives you the ride & handling you deserve from your Outback Explorer with the Load Carrying Capacity you expect from your GVM Upgrade. Superior Coil Kits offer the required chassis bracing to support your GVM Increase and a lifetime warranty against bending on our manufactured 5-Link Upper & Lower Arms and Panhard Rod. Airbag Man Coil Helper Airbag kits are available to suit this Conversion.
_x000D_
_x000D_
Exhaust System
_x000D_
All Outback Explorer Coil Conversions include a Legendex Exhaust System built specifically to suit the Superior Coil Conversion. The system is a 3 Inch DPF back, manufactured from 409 Stainless Steel and coated in Legendex's signature high temp paint.
_x000D_
_x000D_
Brakes
_x000D_
Superior Outback Explorer Kits include Braided Steel Chassis to Diff Brake Lines in the rear, giving you the confidence that your Hilux has the Braking Performance needed when loaded to your new Gross Vehicle Mass or when articulating off-road.
_x000D_
_x000D_
_x000D_
The Little Things
_x000D_
On top of everything you have seen above, Outback Explorer Kits include a wide range of smaller functional components used to assist in correcting your Suspension & Steering Geometry including Front Sway Bar Relocation Plates. Several other components are included as part of the Approval Process including LED Category-6 Indicators for your Front Guards.
_x000D_
_x000D_
_x000D_
Guard Decals
_x000D_Superior Engineering has made sure everyone you drive past or park next to knows just what you"re driving when they look up at you, thanks to our Superior Outback Explorer Chrome Guard Decals.
_x000D_
_x000D_
_x000D_
Keep it Legal
_x000D_
Superior Engineering Outback Kits are legal Australia Wide with Federal Approved when fitted before the vehicle's first registration. These kits are exclusively available for fitment through Superior Engineering or one of our Federally Approved Production Facilities. Post Registration options are available on selected kits, depending on the State or territory your vehicle is registered in. Please get in touch with your local Superior Engineering Federally Approved Production Facility for Post-Registration Options.
_x000D_
_x000D_
_x000D_

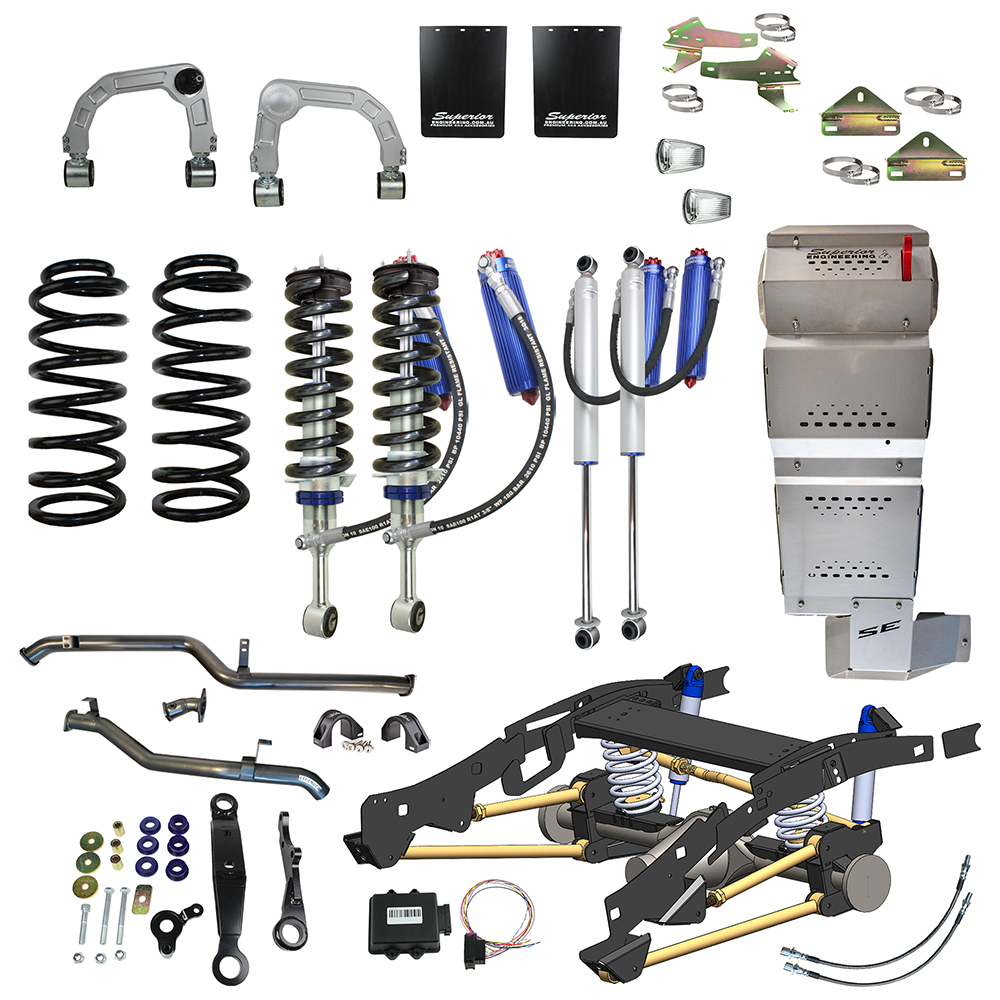

Kit Includes:
_x000D_- _x000D_
- Superior HD Coil Springs Front (Pair) _x000D_
- Superior HD Coil Springs Rear (Pair) _x000D_
- Superior Adjustable 2.0 Monotube Remote Reservoir Front Struts (Pair) _x000D_
- Superior Adjustable 2.0 Monotube Remote Reservoir Rear Shocks (Pair) _x000D_
- Replacement Strut Tops (Pair) _x000D_
- Superior Billet Alloy Upper Control Arms Front (Pair) _x000D_
- Superior 25mm Diff Drop (Kit) _x000D_
- Superior Weld In Coil Conversion Suitable For Toyota Hilux 2015 on _x000D_
- Braided Brake Lines Rear (Pair) _x000D_
- LED Autolamps Cat 6 Side Repeater for GVM Upgraded Vehicles (Pair) _x000D_
- Legendex 409 Stainless Steel 3 Inch Exhaust Suitable For Superior Coil Conversion DPF Toyota Hilux 2015+ (Each) _x000D_
- Superior CAN Bus Speedo Correction module _x000D_
- Superior Aluminium Front Sway Bar Mounting Bracket Kit (Kit) _x000D_
- Superior Outback Explorer Guard Decal Chrome (Pair) _x000D_
- Superior 2.0 Shock Reservoir Mounts Front (Pair) _x000D_
- Superior 2.0 Shock Reservoir Mounts Rear (Pair)
- Superior Stainless Steel Underguard
- Superior 7075 Billet Series Rear Lower Control Arms _x000D_
- Federal Approval at 2 Inches Lift with 3,560kg GVM and tyres up to 32 Inches (265/70R17) - Pre-Registration Only _x000D_
Kit Features:
_x000D_- _x000D_
- Superior Engineering is an Australian Made & Owned Company _x000D_
- Lifetime Warranty Against Bending on Superior Manufactured Components _x000D_
- Legal Australia-Wide when Installed & Approved Pre-Registration _x000D_
- Australia"s most comprehensive Pre-Registration Leaf Sprung GVM Upgrade for Toyota Hilux _x000D_
- Available in Leaf Sprung or Coil Converted Rear _x000D_
- 2.0" Bore or 2.5" Bore Remote Reservoir Shock Options Available _x000D_
- Includes Chassis Bracing for full support of the chassis of your vehicle when loaded _x000D_
Kit Specifications:
_x000D_- _x000D_
- Increase to 3,560kg Gross Vehicle Mass (GVM) _x000D_
- Retains OEM 3,500kg Braked Towing Capacity _x000D_
- Retains OEM 5,850kg Gross Combined Mass (GCM) _x000D_
- Legally Complied on Tyre Size up to 32 Inch (265/70R17) _x000D_
*Specifications are correct at the time of publication.
_x000D_Available to be built on the below Hilux Variants Only:
_x000D_- _x000D_
- Toyota Hilux SR Double-Cab Pick-Up 4x4 (5-Seater) _x000D_
- Toyota Hilux SR5 Double-Cab Pick-Up 4x4 (5-Seater) _x000D_
*Cab Chassis Variants are NOT Approved for Outback Explorer Kits
_x000D_* Outback Explorer GVM Kits are not inclusive of a vehicle - Customer is to supply Superior Engineering with a brand-new unregistered vehicle.
_x000D_* Outback Explorer GVM Kit Installation prices are based on installation on a brand-new unregistered vehicle only.
_x000D_* Vehicles may be shown with optional modifications or additional extras/accessories that are not included in Outback Explorer Kits such as Wheels & Tyres.
_x000D_* Product images may not be an exact reflection of the supplied components due to constant product development & changes.
_x000D_ _x000D_ _x000D_| SKU | SE-47888 |
|---|---|
| Barcode # | 930000047888 |
| Brand | Superior Engineering |
| Shipping Weight | 363.6300kg |
| Shipping Width | 0.500m |
| Shipping Height | 1.200m |
| Shipping Length | 1.200m |
Superior Outback Explorer Australia Wide Legal 2.0 Shock Weld In Coil Conversion 2 Inch (50mm) Lift, 32 Inch (265/70R17) Tyres, 3.56t Gvm Suitable For
