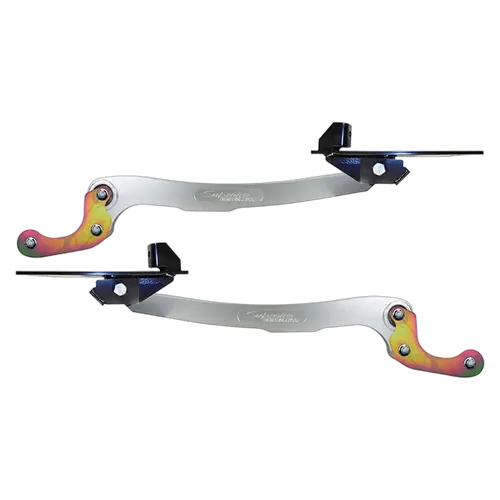

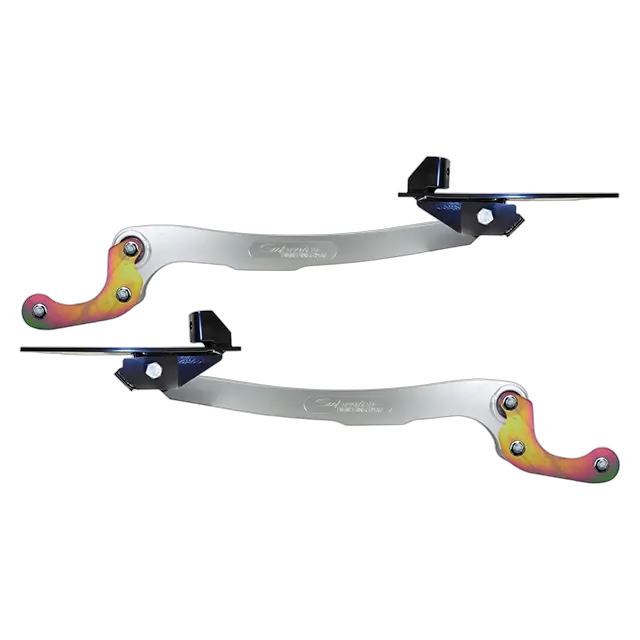

This is a Superior Engineering Hyperflex Hybrid Radius Arm with Drop Boxes Suitable For Nissan Patrol GQ/GU.

\ \

\ \

Superior Engineering is leading the way again with our latest radius arms design, the Hyperflex Radius Arm.
\ We figured if one of our Patented Superflex was good then why not run two, and after some testing, we are now proud to offer the Hyperflex Radius Arms.
\
\ These arms don't just offer extreme levels of flex for the front of your Nissan patrol, the also handle extremely well on road.
\ We have completed NCOP approval testing up to 110km/h, meaning the Hyperflex Radius Arms are legal* for use on road throughout Australia.

\ \

(*currently testing has only be completed on NON-VSC Nissan Patrol GU and GQ)

\ \

The difference with our hybrid design arms over the standard Nissan radius arms is the use of a Toyota style rear bush. This change allows increased life from the rear bush when flexing the arms up off-road, by allowing the arm to flex down without the binding found in the pin style design.

\ \

With the arms, we supply the mounting drop boxes that are a straight bolt-in design requiring no cutting and all bolts need for mounting. We also supply fitting instructions and all the bushes are pressed into the arms so you don’t have to.

\ \

With these arms, you will get the flex and drivability you need, and longer life from your bushes. Why not have extra flex as well as good on-road handling?

\ \

Approved for on-road use under NCOP for GQ and GU Patrols(non-ESC) once inspected by an approved person

\ \

NOTE: To fit Sway Bar Mounts you will require 85mm sway bar mounts and bushes.
\ If you do not have sway bar mounts or you have 75mm mounts you can purchase the required ones below.\
85mm Sway Bar Mount
\ Sway Bar Bushes to suit 85mm Mounts

\ \

Benefits of Superior Engineering HYPERFLEX Drop Radius Arms:

\ \

\
• Manufactured from High Tensile Bisalloy 80/Strenx700 Plate
\
• High Tensile Bush Eyes
\
• Massive 32mm main Beam thickness for maximum strength
\
• Rubber Bushes pre-fitted into arms
\
• Laser-cut to precise measurement and caster location
\
• Authentic Superior Engineering Logo machined into the side of Arms
\
• Factory Swaybar will fit to allow safe on-road handling
\
• Factory ABS lines will bolt-on
\
• HYPERFLEX ARMS are manufactured Suitable For various lifts
\
• Sandblasted with rust prevention applied
\
• Powder Coated for maximum durability and finish
\
• High Tensile Bisalloy 80/Strenx700 Plate will not crack unlike Cast Radius Arms
\
• Sway Bar Adapter plate bracket and bolts have an SA5 Zinc coating for rust prevention
\
• Allows vehicle to track correctly on road due to correct caster
\
• Maximum Clearance between the Tie Rod and the Radius Arms
\
• Factory bushes fit the HYPERFLEX ARMS; we don’t use special sizes Bushes
\
• Superior Engineering's HYPERFLEX ARMS are a Patented Design
\

\ \

Patent No's. 2010100451, 2011904187

\ \

This product has passed testing for approval under the NCOP system.
\ See the flow chart below.
\

\ \ \

​

\

\ \

Fig. 1 shows the Superior Arm deflecting only 4.1mm under load with real-world load points.
\ Fig. 2 shows the Competitor's Arm deflecting 24.91mm under the same load points and loads, almost the same as the width of the Arm itself.
\ Also of note is the Competitor's Arm deflected to a point that may cause metal fatigue over time, which may lead to total failure.

\ \



\ \

NOTE: Please check ABS sensor lines(if fitted) are free to move through the full range of travel.
\ Factory bump stops may need to be extended depending on the coils and shock combination used.
\ Due to the huge variances in different weights of vehicles/heights variances and suspension combinations in
\ vehicles it is highly recommended to move your suspension in the full range of the
\ shock absorber compression/rebound travel and also taking into consideration coil bind,
\ check all areas for clearance issues, if you require more assistance in this talk to one of our sales team for further advice.

\ \



\ \

\ \

\ \

\ \

\ \

Below is a comparison chart showing different forms of Castor correction and how they compare in Cost, Flex, Handling and Offroad Ability.

\ \

\ \
