Diff brace kits are a DIY kit made easy.

\ \

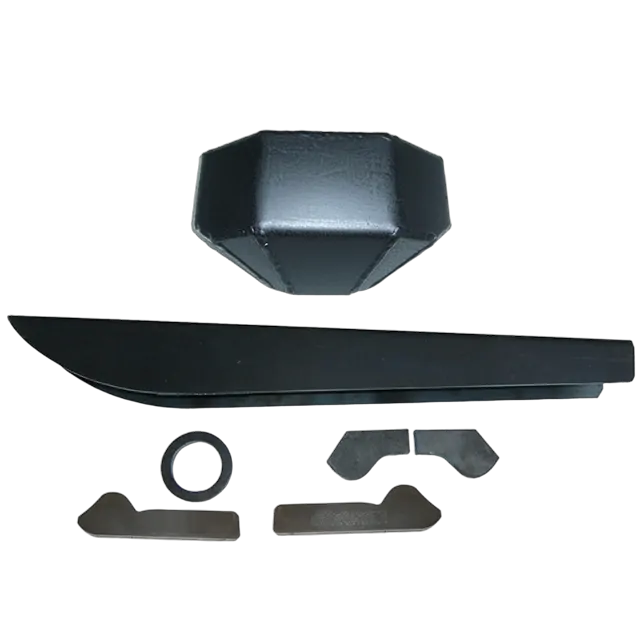

There is a 4mm steel folded top brace to weld along the passenger side top of the diff, a 10mm steel ring for protecting the drain plug, 4 laser cut 10mm gussets to fit above and below the knuckles and unbreakable steel pressed 6mm front diff guard that will fully protect those diff gears from damage.

\ \

A welder is required.

\ \

Please note: Once a top diff brace is fitted, the diff to sump clearance should be checked, bump stops may need to be lowered to allow for the extra height of brace.

\ \

Due to the design of the lower knuckle gussets, if this kit is to be used in a vehicle fitted with Castor plates or Superflex arms the gusset will need to be welded to the plates.

\ \

\ \

\ \
