Please Note: Due to supply issues, the colour of the coil springs you receive may vary from the coils pictured. All coils used in Superior Engineering Kits are made from quality Australian manufacturers.

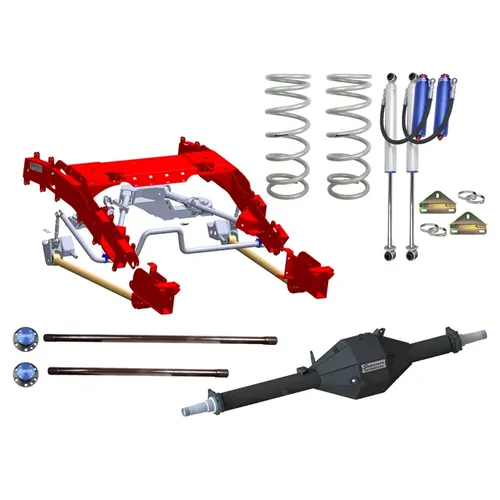

Superior Bolt in Coil Conversion VSB14 Approved 2 Inch Lift Kit with Track Corrected Chromoly Diamond Diff Housing w/Remote Reservoir Shocks (Rear Only) Suitable For Toyota LandCruiser 79 Series Gen 1 (Non-VSC Models)

\ \

\ \

The Superior\ Engineering LandCruiser 79 coil kits can be supplied to suit a wide range of\ applications. We have packages and options from – VSB / State approved kits\ that use your factory housing in either Bolt-In or Weld-In to our bigger kits\ that can be Federally approved. Our Superior Outback Tourer™ kits allow a\ metric equivalent or imperial 35” tyre, 4” suspension lift kit, 4-tonne GVM,\ Wide-Track Chromoly Diamond Diff Housing.

\ \

With so many options\ available Superior Engineering can supply a kit to suit just about any\ application, whether you’re just a weekend wheeler that has no weight and puts\ the dog in the back, a tradie that is loaded through the week and unloaded on\ the weekends or a fully kitted-out 4T+ tourer.

\ \

For more detailed information please Click Here

\ \

FEATURES & HIGHLIGHTS

\ \

\
• Bolt-In Kit Featuring 4 x Chassis Side Strengthening Braces
\
• Heavy Duty Sway bar & Coil Tower Brace
\
• Uses Factory Mounting Locations For A Precise Fit
\
• Supplied Pre-Fabricated For An Easy Installation
\
• Improved Roll Axis For Tyre Clearance
\
• Increased Wheel Travel & Articulation
\
• Adjustable Upper Control Arms
\
• 40mm OD Fixed Lower Control Arms
\
• Reduced Bush Bind Over A 5-Link
\
• Compatible with Coil Air Bags
\
• 4-Link Rear Suspension Setup
\
• Fully Adjustable Pinion Angle
\
• Provides More Precise Handling
\
• Improved Comfort & Ride
\
• 350 Grade Steel Mounts
\
• Supplied with Sway Bar
\
• Will work on up to 5” lift
\
• Superior Track Corrected Chromoly Diamond Diff Housing, with a Higher load rating than competitors at 3150kg
\

\ \ \

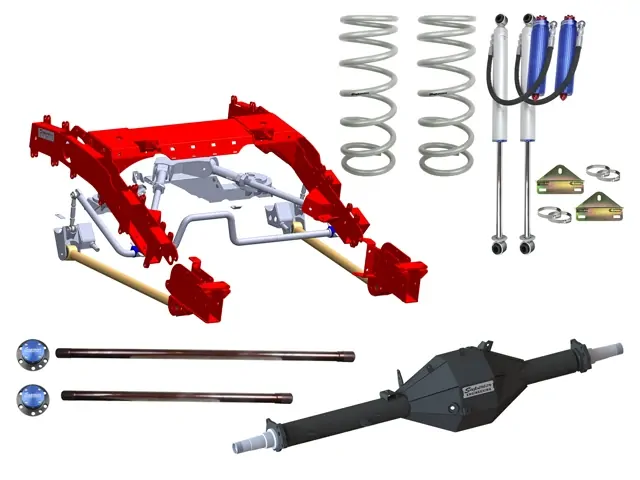

Kit Contains

\ \

\
• Side Chassis Brace
\
• Sway Bar Kit
\
• Upper Control Arm Mounts (Diff and Chassis)
\
• Lower Control Arm Fixed Pins
\
• Lower Control Arm/Shock Mount
\
• Coil Tower/Bracing
\
• Lower Coil Mounts
\
• Upper Adjustable Control Arms
\
• Lower Control Arms
\
• Handbrake Relocation Bracketry
\
• All Required Bolts and Fasteners
\
• Superior Engineering Track Corrected Chromoly Diamond Diff Housing, with a Higher load rating than competitors at 3150kg
\
• Rear Coil Springs
\
• Rear Superior Remote Reservoir Shocks
\

\ \

NOTE: Some modifications to the rear of the exhaust system will be required to fit this kit.

\ \

\ \

\ \

\ \

\ \

\ \

\ \

\ \

\ \

\ \

\ \

For warranty reasons, when fitting a lift kit you should always fill out a "Fitment Form".

\
