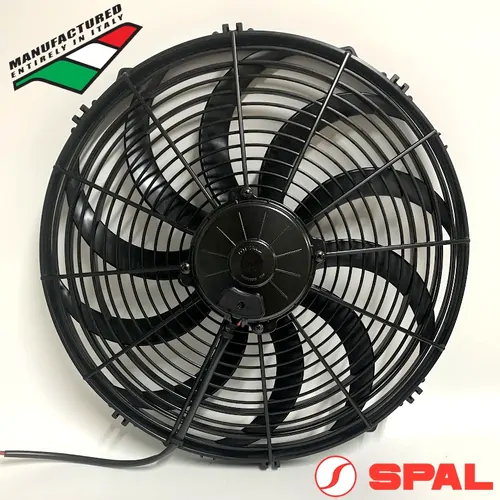

The VA18-AP71/LL-42S (EF3535) 12v 16" SPAL Pusher Fan features a Skew (curved) Blade Design which can push up to 1959cfm / 3320m3/h.
Individually balanced for long life, the EF3535 16" Pusher Fan features a fully sealed water & dust-proof motor of superior quality and backed with a 3-year manufacturers .
| EF3535 16" SPAL THERMO FAN DETAILS | |
|---|---|
| SPAL Fan Model # | VA18-AP71/LL-42S |
| U.S. Part # | 30102048 |
| Voltage | 12V |
| Flow Type | Pusher |
| Blade Diam. | 16 inch (385mm) |
| Blade Type | Skew |
| Shroud Type | Finger Guard |
| Amps | 21.5 |
| CFM | 1959 |
| M3/H | 3320 |
| Spec. Sheet | View Specifications  |
| EF3535 16" SPAL THERMO FAN DIMENSIONS | |
|---|---|
| A | 400mm / 15.75" |
| B | 414mm / 16.3" |
| C | 207mm / 8.15" |
| D | 358mm / 14.09" |
| E | 88mm / 3.46" |
 |
|
| ABOUT SPAL |
|---|
|
All SPAL Fans are individually balanced & tested to provide optimal performance and life. From the motor to the fan to the shroud, all components are completely designed, manufactured and tested in SPAL's state-of-the-art facility in Correggio, Italy. href=" ?filter.p.tag=SPAL+Accessory" title=" More">
 |
Designed to withstand the harshest environments, SPAL fans are unmatched in quality and reputation.
| SKU | EF3535 |
|---|---|
| Barcode # | 9316042089806 |
| Brand | SPAL |
| Shipping Weight | 5.0000kg |
| Shipping Width | 0.088m |
| Shipping Height | 0.414m |
| Shipping Length | 0.400m |
SPAL Thermo Pusher Fan - 16" - 12V - 1959 CFM - VA18-AP71/LL-42S
