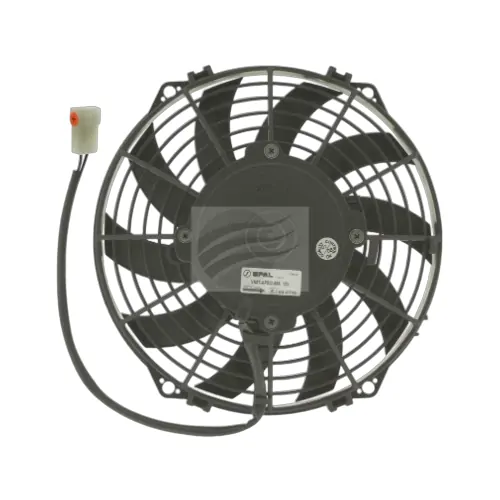

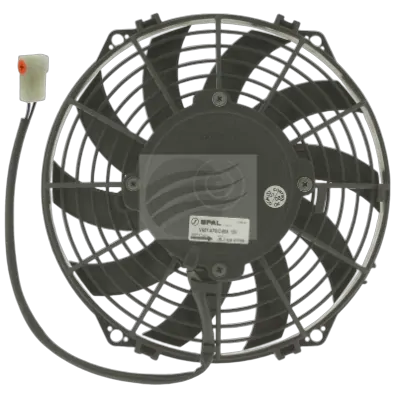

The VA07-AP8/C-58A (EF3526) 12v 9" SPAL Puller Fan features a Skew Blade Design which can pull up to 602cfm / 1020m3/h.
Individually balanced for long life, the EF3526 9" Puller Fan features a fully sealed water & dust-proof motor of superior quality and backed with a 3-year manufacturers .
| EF3526 9" SPAL THERMO FAN DETAILS | |
|---|---|
| SPAL Fan Model # | VA07-AP8/C-58A |
| U.S. Part # | 30100442 |
| Voltage | 12V |
| Flow Type | Puller |
| Blade Diam. | 9 inch (225mm) |
| Blade Type | Skew |
| Shroud Type | Finger Guard |
| Amps | 5.7 |
| CFM | 602 |
| M3/H | 1020 |
| Mounting Match | VA07-AP7/C-58A VA07-AP12/C-31A |
| Spec. Sheet | View Specifications  |
| EF3526 9" SPAL THERMO FAN DIMENSIONS | |
|---|---|
| A | 246mm / 9.68" |
| B | 246mm / 9.68" |
| C | 139mm / 5.47" |
| D | 206mm / 8.11" |
| E | 51mm / 2.01" |
 |
|
| ABOUT SPAL |
|---|
|
All SPAL Fans are individually balanced & tested to provide optimal performance and life. From the motor to the fan to the shroud, all components are completely designed, manufactured and tested in SPAL's state-of-the-art facility in Correggio, Italy. href=" ?filter.p.tag=SPAL+Accessory" title=" More">
 |
Designed to withstand the harshest environments, SPAL fans are unmatched in quality and reputation.
| SKU | EF3526 |
|---|---|
| Barcode # | 9316042088427 |
| Brand | SPAL |
| Shipping Weight | 3.2500kg |
| Shipping Width | 0.051m |
| Shipping Height | 0.246m |
| Shipping Length | 0.246m |
SPAL Thermo Puller Fan - 9" - 12V - 602 CFM - VA07-AP8/C-58A
More infoMake 4 payments of $55.00 over 8 weeks and get it now!
Calculate Shipping
The VA07-AP8/C-58A (EF3526) 12v 9" SPAL Puller Fan features a Skew Blade Design which can pull up to 602cfm / 1020m3/h.
Individually balanced for long life, the EF3526 9" Puller Fan features a fully sealed water & dust-proof motor of superior quality and backed with a 3-year manufacturers .
| EF3526 9" SPAL THERMO FAN DETAILS | |
|---|---|
| SPAL Fan Model # | VA07-AP8/C-58A |
| U.S. Part # | 30100442 |
| Voltage | 12V |
| Flow Type | Puller |
| Blade Diam. | 9 inch (225mm) |
| Blade Type | Skew |
| Shroud Type | Finger Guard |
| Amps | 5.7 |
| CFM | 602 |
| M3/H | 1020 |
| Mounting Match | VA07-AP7/C-58A VA07-AP12/C-31A |
| Spec. Sheet | View Specifications |
| EF3526 9" SPAL THERMO FAN DIMENSIONS | |
|---|---|
| A | 246mm / 9.68" |
| B | 246mm / 9.68" |
| C | 139mm / 5.47" |
| D | 206mm / 8.11" |
| E | 51mm / 2.01" |
|
|
| ABOUT SPAL |
|---|
|
All SPAL Fans are individually balanced & tested to provide optimal performance and life. From the motor to the fan to the shroud, all components are completely designed, manufactured and tested in SPAL's state-of-the-art facility in Correggio, Italy. href=" ?filter.p.tag=SPAL+Accessory" title=" More">
|
| SKU | EF3526 |
|---|---|
| Barcode # | 9316042088427 |
| Brand | SPAL |
| Shipping Weight | 3.2500kg |
| Shipping Width | 0.051m |
| Shipping Height | 0.246m |
| Shipping Length | 0.246m |
