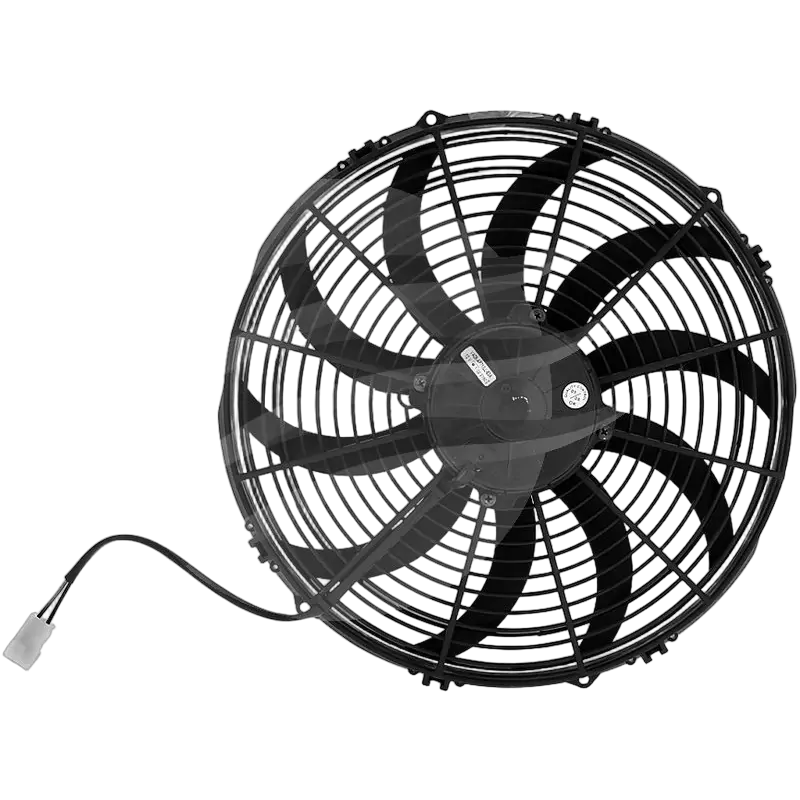

The VA08-AP71/LL-53A (EF3657) 12v 14" SPAL Puller Fan is a High Output Thermo Fan featuring a Finger Guard Shroud and a Skew (curved) Blade Design which can pull up to 1841cfm / 3120m3/h.
The EF3657 14" Fan is individually balanced for long life and features a fully sealed water & dust-proof motor of superior quality and backed with a 3-year manufacturers .
| EF3657 14" SPAL THERMO FAN DETAILS | |
|---|---|
| Spal Fan Model # | VA08-AP71/LL-53A |
| U.S. Part # | 30102042 |
| Voltage | 12V |
| Flow Type | Puller |
| Blade Diam. | 14 inch (350mm) |
| Blade Type | Straight |
| Shroud Type | Finger Guard |
| Amps | 19.6 |
| CFM | 1841 |
| M3/H | 3120 |
| Spec. Sheet | View Specifications  |
| EF3657 14" SPAL THERMO FAN DIMENSIONS | |
|---|---|
| A | 367mm / 14.45" |
| B | 382mm / 15.04" |
| C | 191mm / 7.52" |
| D | 331mm / 13.03" |
| E | 88mm / 3.46" |
 |
|
| ABOUT SPAL |
|---|
|
All SPAL Fans are individually balanced & tested to provide optimal performance and life. From the motor to the fan to the shroud, all components are completely designed, manufactured and tested in SPAL's state-of-the-art facility in Correggio, Italy. href=" ?filter.p.tag=SPAL+Accessory" title=" More">
 |
Designed to withstand the harshest environments, SPAL fans are unmatched in quality and reputation.
| SKU | EF3657 |
|---|---|
| Barcode # | 9316042173178 |
| Brand | SPAL |
| Shipping Weight | 5.0000kg |
| Shipping Width | 0.088m |
| Shipping Height | 0.382m |
| Shipping Length | 0.367m |

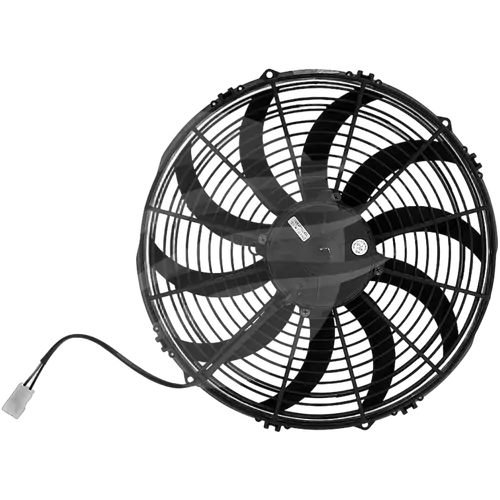

SPAL Thermo Puller Fan - 14" - 12V - 1841 CFM - VA08-AP71/LL-53A
