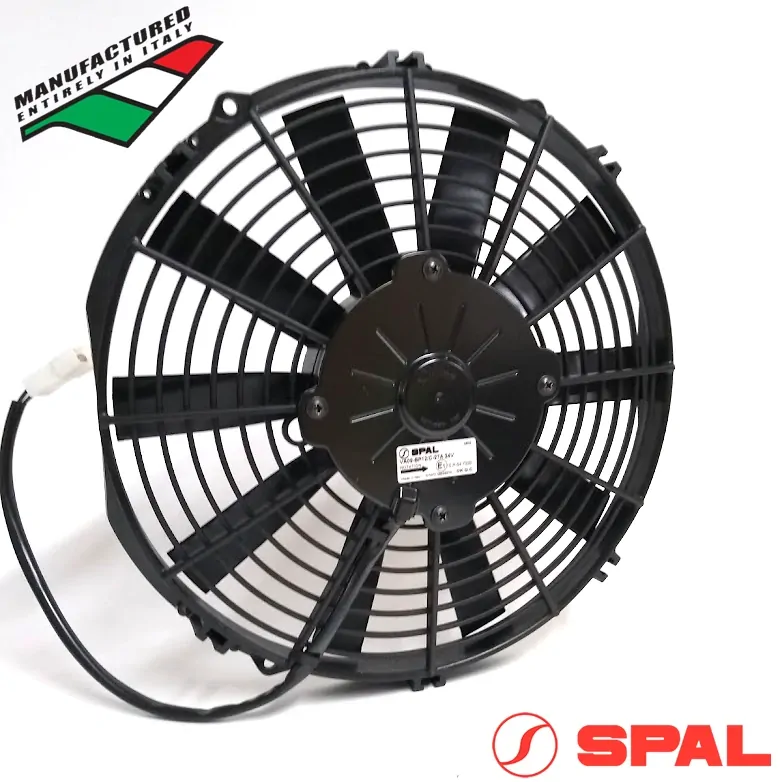

The VA09-BP12/C-27A (EF3515) 24v 11" SPAL Puller Fan is a Low-Profile Thermo Fan featuring a Finger Guard Shroud and a Straight Blade Design which can pull up to 861cfm / 1460m3/h.
The EF3515 11" Fan is individually balanced for long life and features a fully sealed water & dust-proof motor of superior quality and backed with a 3-year manufacturers .
EF3515 11" SPAL THERMO FAN DETAILS |
Spal Fan Model # |
VA09-BP12/C-27A |
Voltage |
24V |
Flow Type |
Puller |
Blade Diam. |
11 inch (280mm) |
Blade Type |
Straight |
Shroud Type |
Finger Guard |
Amps |
4.5 |
CFM |
861 |
M3/H |
1460 |
Spec. Sheet |
View Specifications |
|
|
EF3515 11" SPAL THERMO FAN DIMENSIONS |
A |
294mm / 11.57" |
B |
310mm / 12.2" |
C |
155mm / 6.1" |
D |
268mm / 10.55" |
E |
52mm / 2.05" |
|
